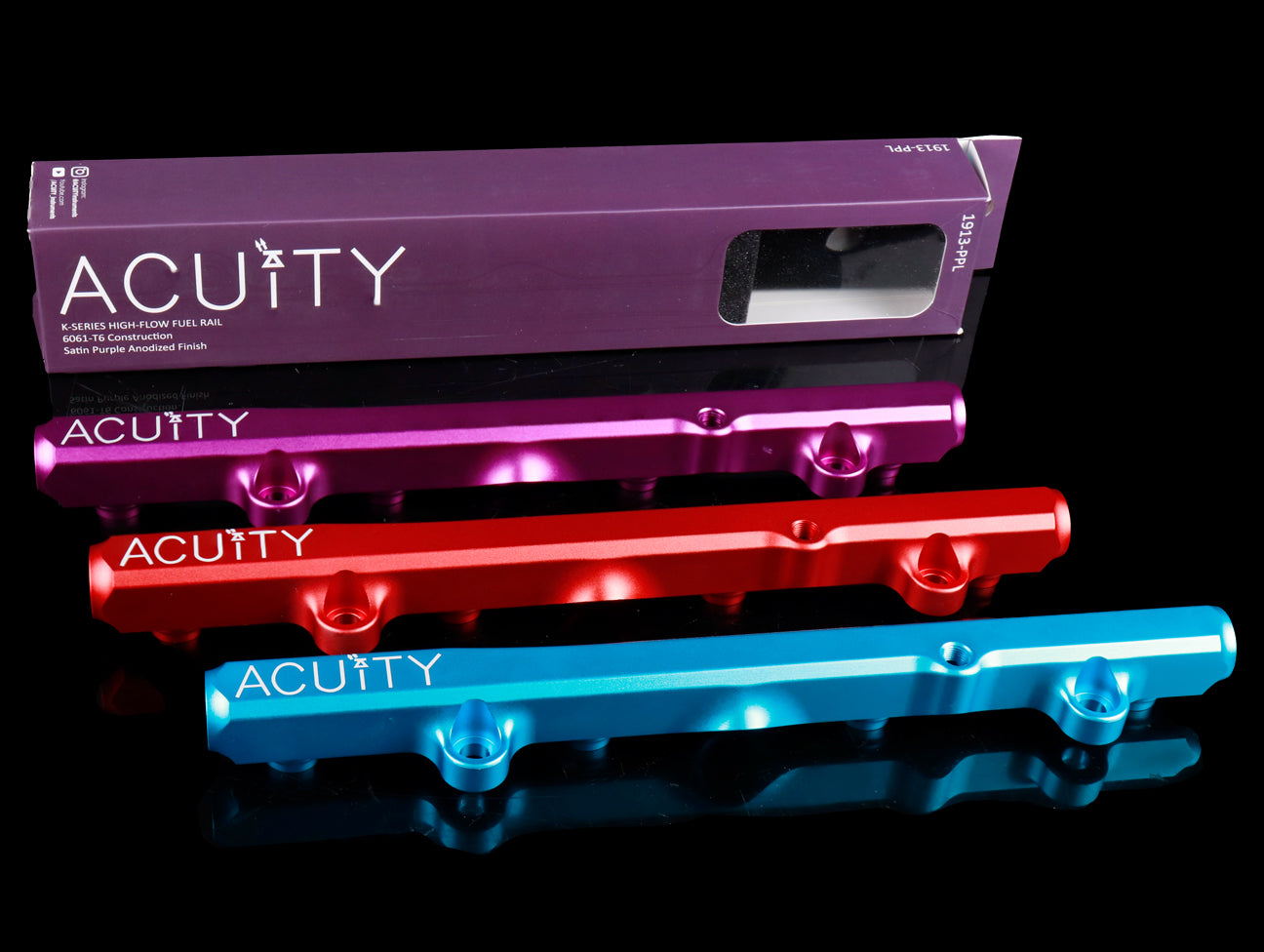

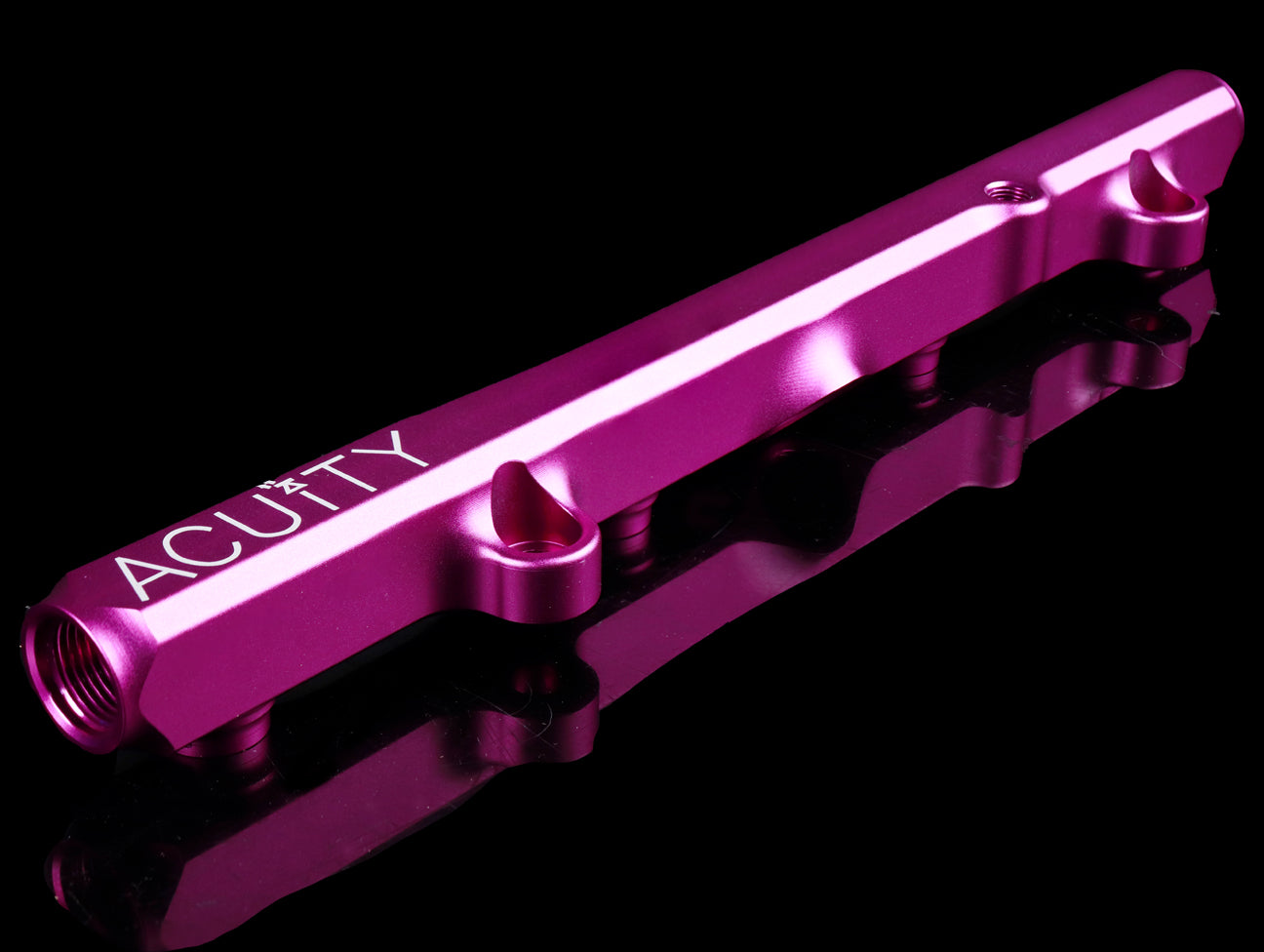

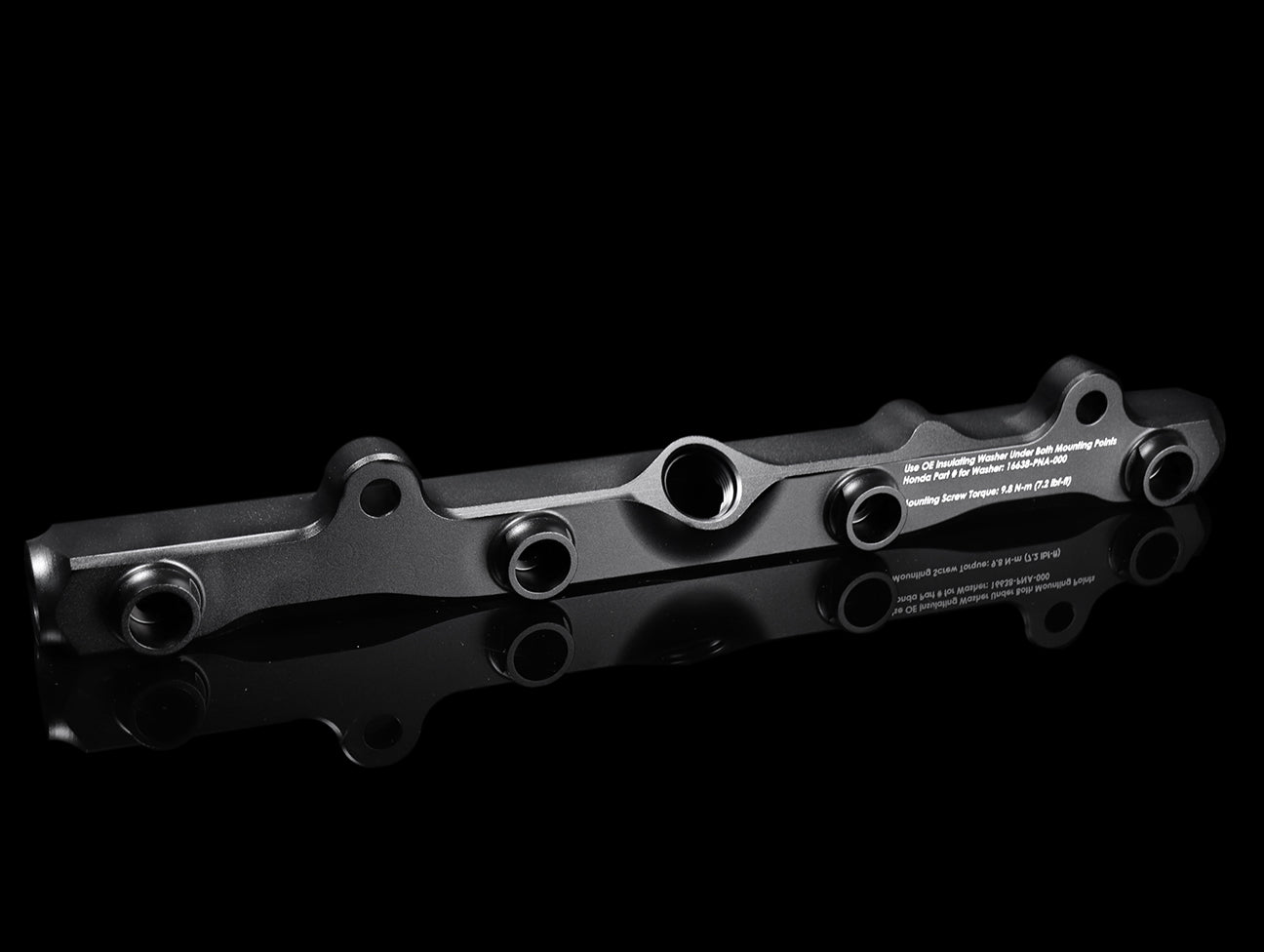

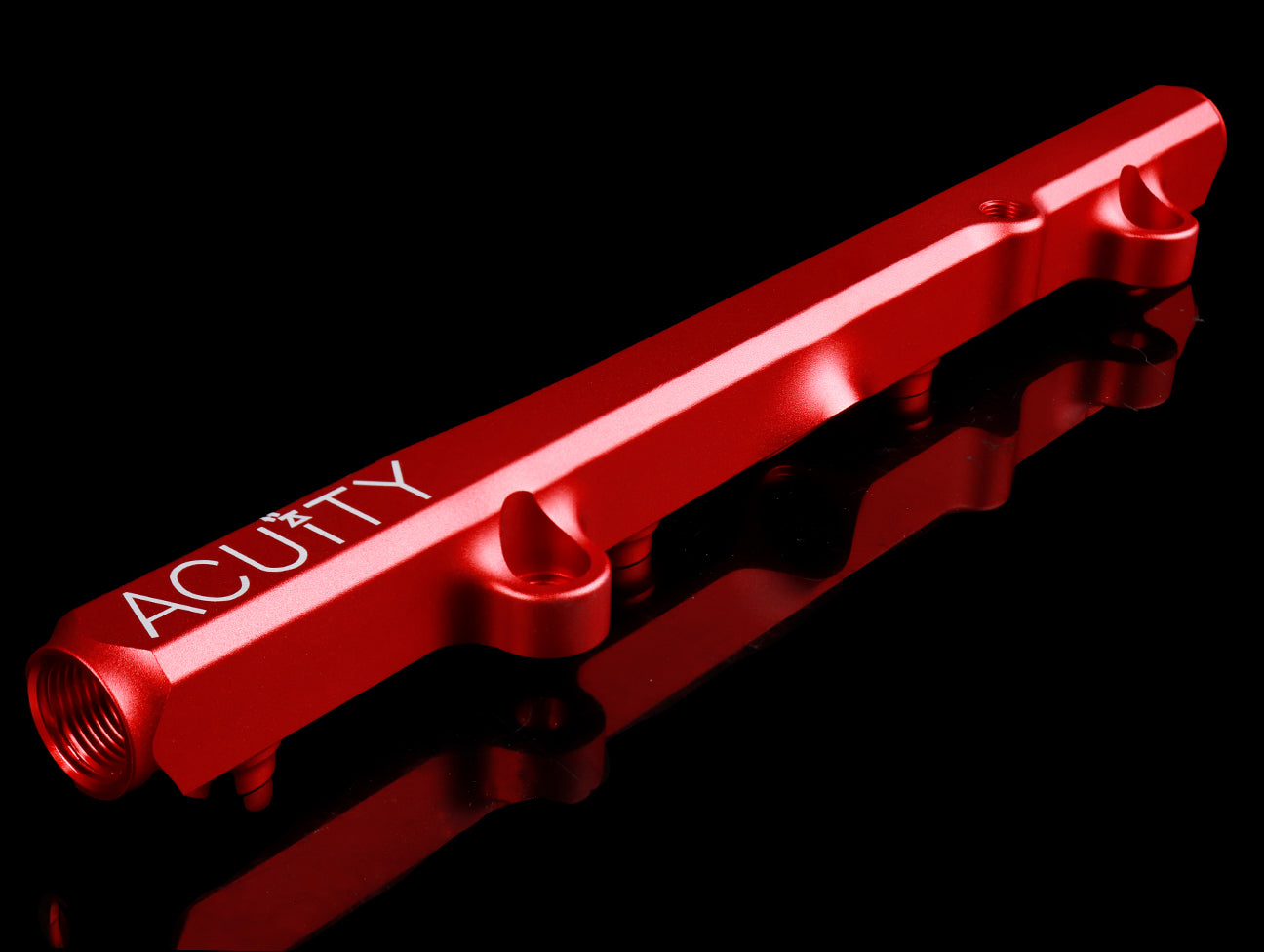

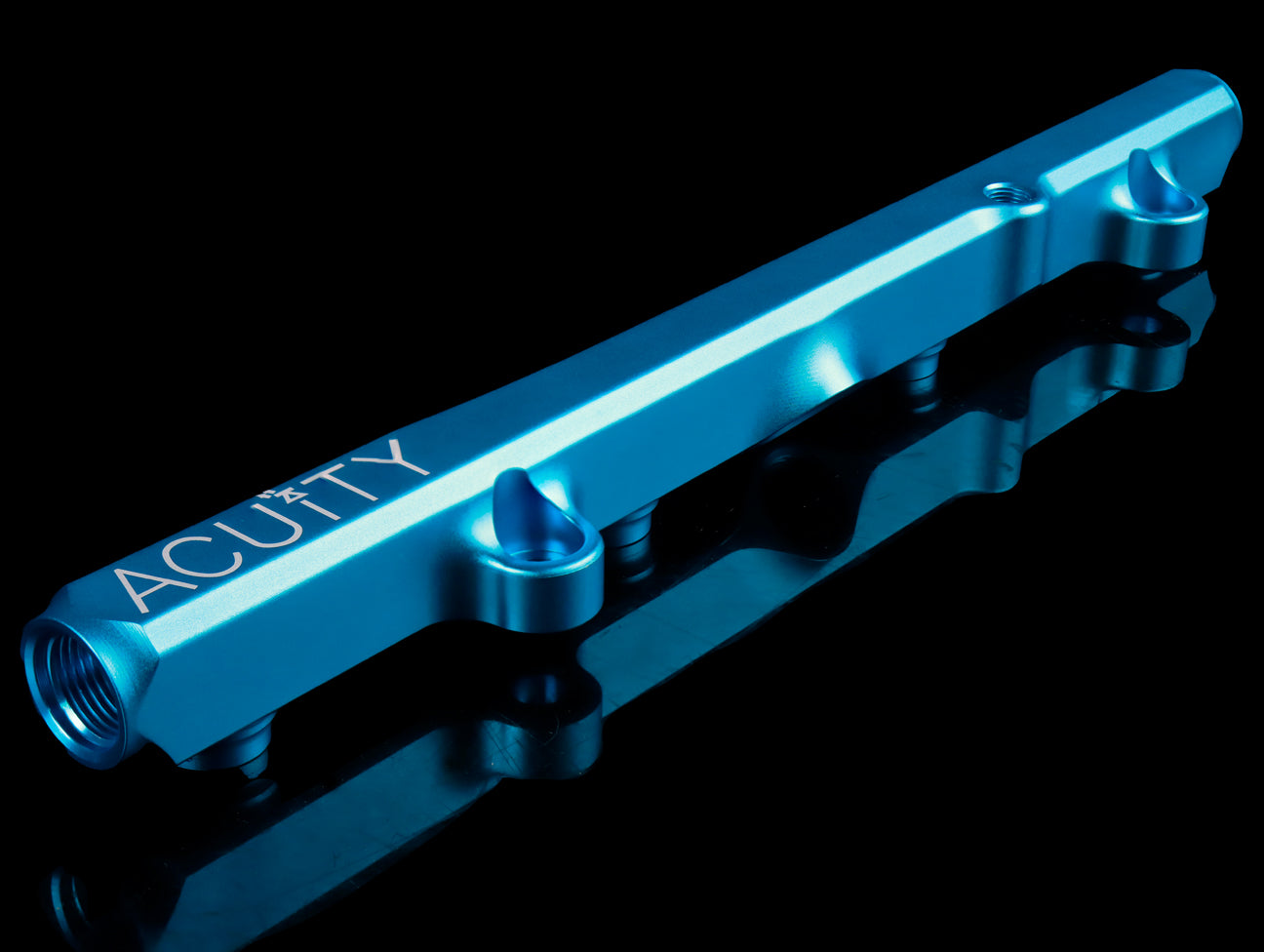

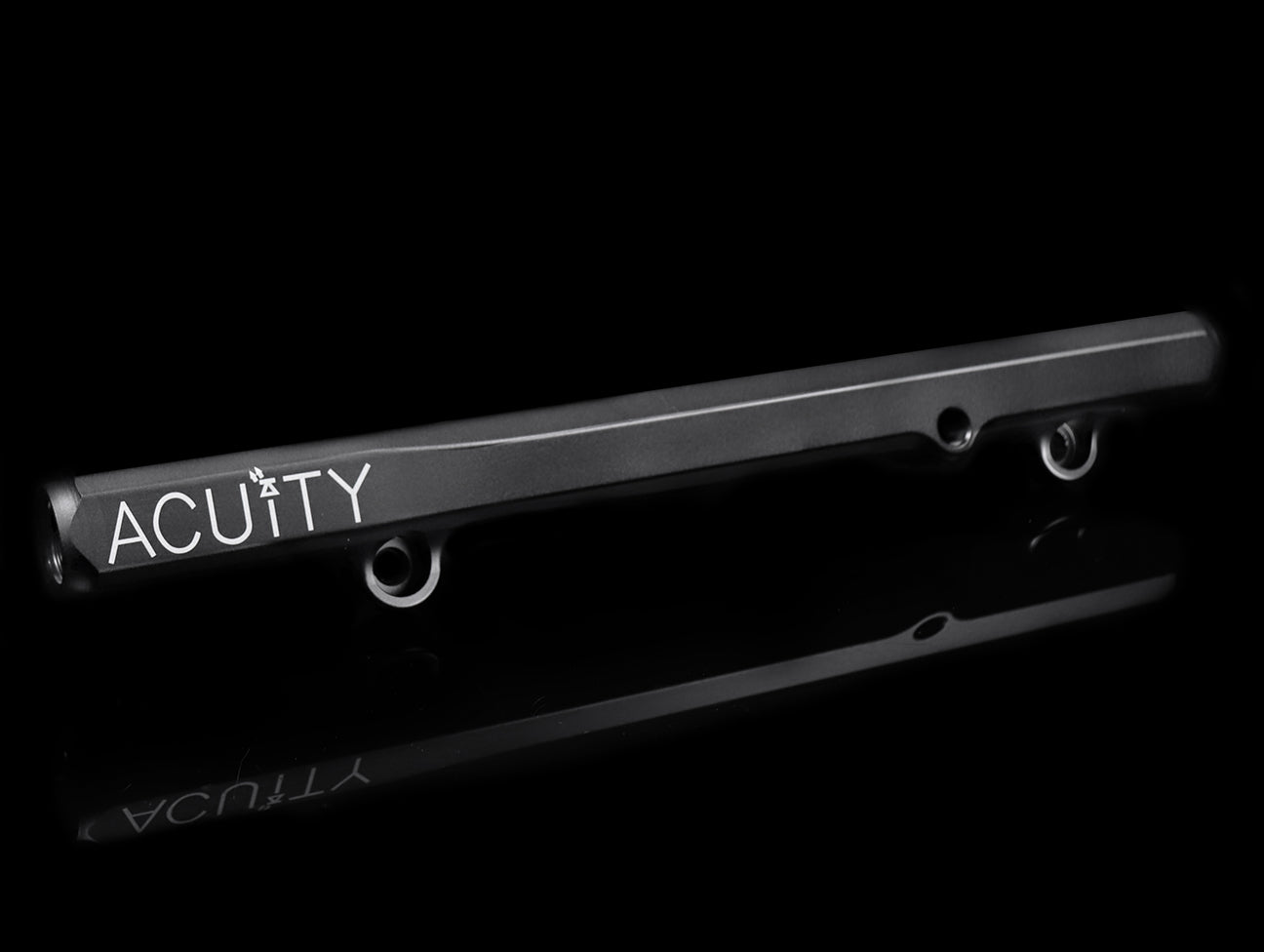

Acuity Fuel Rail - K-series

Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, ACUiTY's K-Series High-Flow Fuel Rail is the most versatile and refined solution available. With it's 1/8 NPT port on top, -8 o-ring boss (ORB) ports on both ends and another -8 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car (see "Fitment Info" for application-specific fitting requirements). Each rail is constructed from 6061-T6 aluminum and has a satin-texture, anodized finish with laser-etched technical info and logos.

Features

• 15mm (0.59") bore supports 1000+hp
• 1/8 NPT gauge port
• -8 ORB center-feed port for tucked fuel lines
• -8 ORB end ports for OEM, side-feed, or return setups
• 6061-T6 billet aluminum construction
• Satin black anodized finish
• Includes class 10.9 zinc-plated mounting hardware

Vehicle Application: Fits most K-Series engines except for the direct-injected K20C and K20B engines
