Mishimoto Slim Radiator Fan - 12" / 14" / 16"

Mishimoto Slim Radiator Fan - 12" / 14" / 16"

SKU: MMFAN-12

$103.25
$103.25
Size
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.
The Mishomoto can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator.

Fan comes with lifetime warranty.

Universal fan mounting kit sold separately.

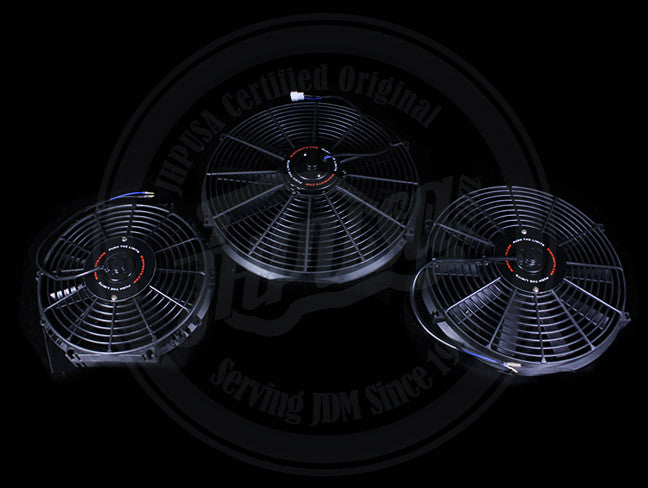

Available fan sizes: 12", 14", 16"

12" Fan Specs:
CFM: 1150
Fan RPM: 2000
Fan Diameter: 285mm
Number of Blades :10
Inrush Current: 12.7A
Amps: 7.6
Volts: 12V
Blade style: straight
Air Temp While Tested: 72F (degrees F)

14" Fan Specs:
CFM: 1300
Fan RPM: 2200
Fan Diameter: 328mm
Number of Blades :10
Inrush Current: 15.1
Amps: 7.8
Volts: 12V
Blade style: straight
Air Temp While Tested: 72F (degrees F)

16" Fan Specs:
CFM: 1850
Fan RPM: 1800
Fan Diameter: 385mm
Number of Blades :10
Inrush Current: 34
Amps: 7.18
Volts: 12V
Blade style: curved
Air Temp While Tested: 72F (degrees F)
