SpeedFactory Racing Battery Location Fuel Cell

SpeedFactory Racing Battery Location Fuel Cell

SKU: SF-02-092

Regular price $388.54
Sale price $388.54
Free shipping
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.

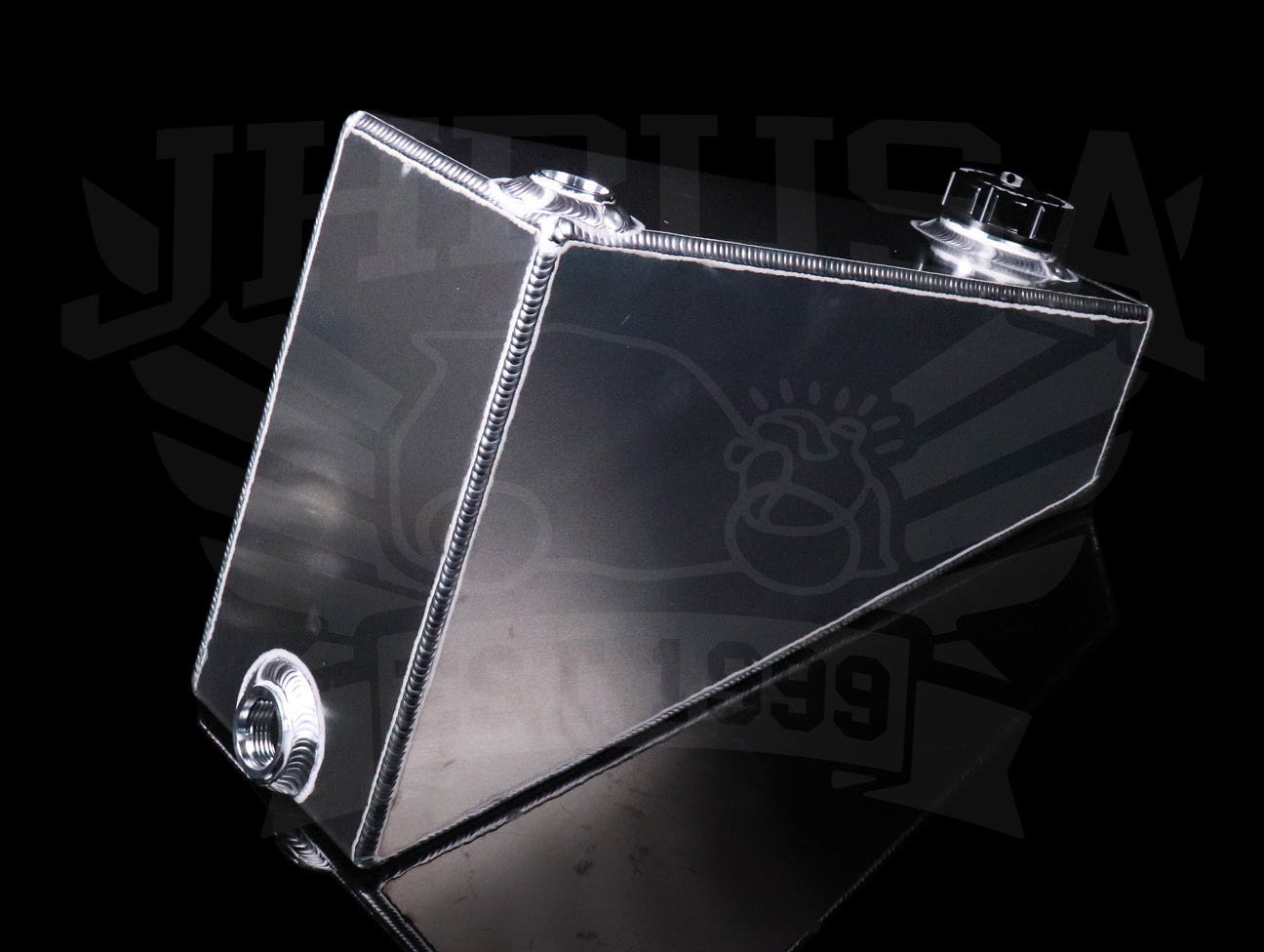

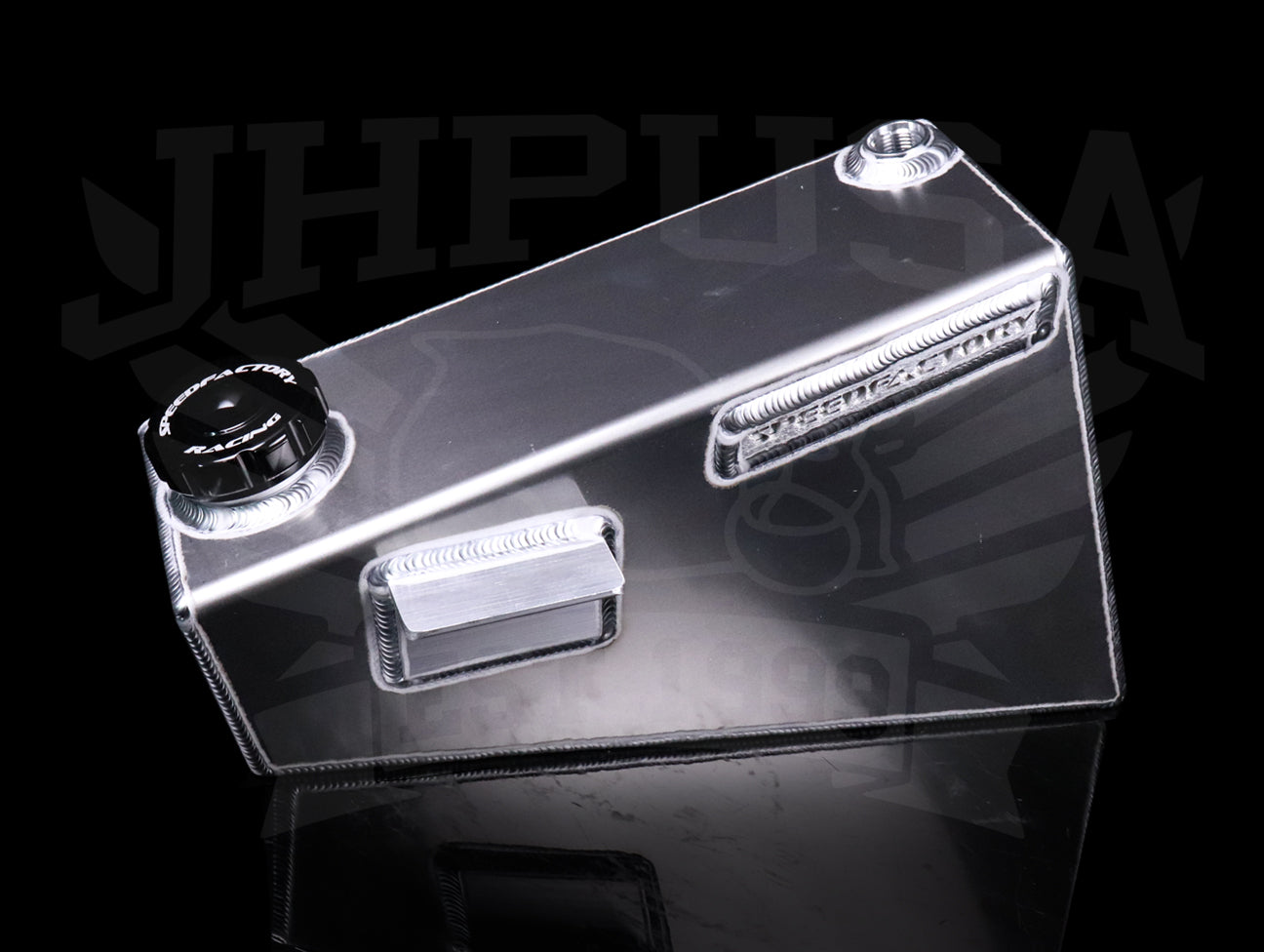

The SpeedFactory 1.9-gallon fuel cell is designed to replace and save major weight over the OEM fuel cell on commonly raced Honda/Acura vehicles.

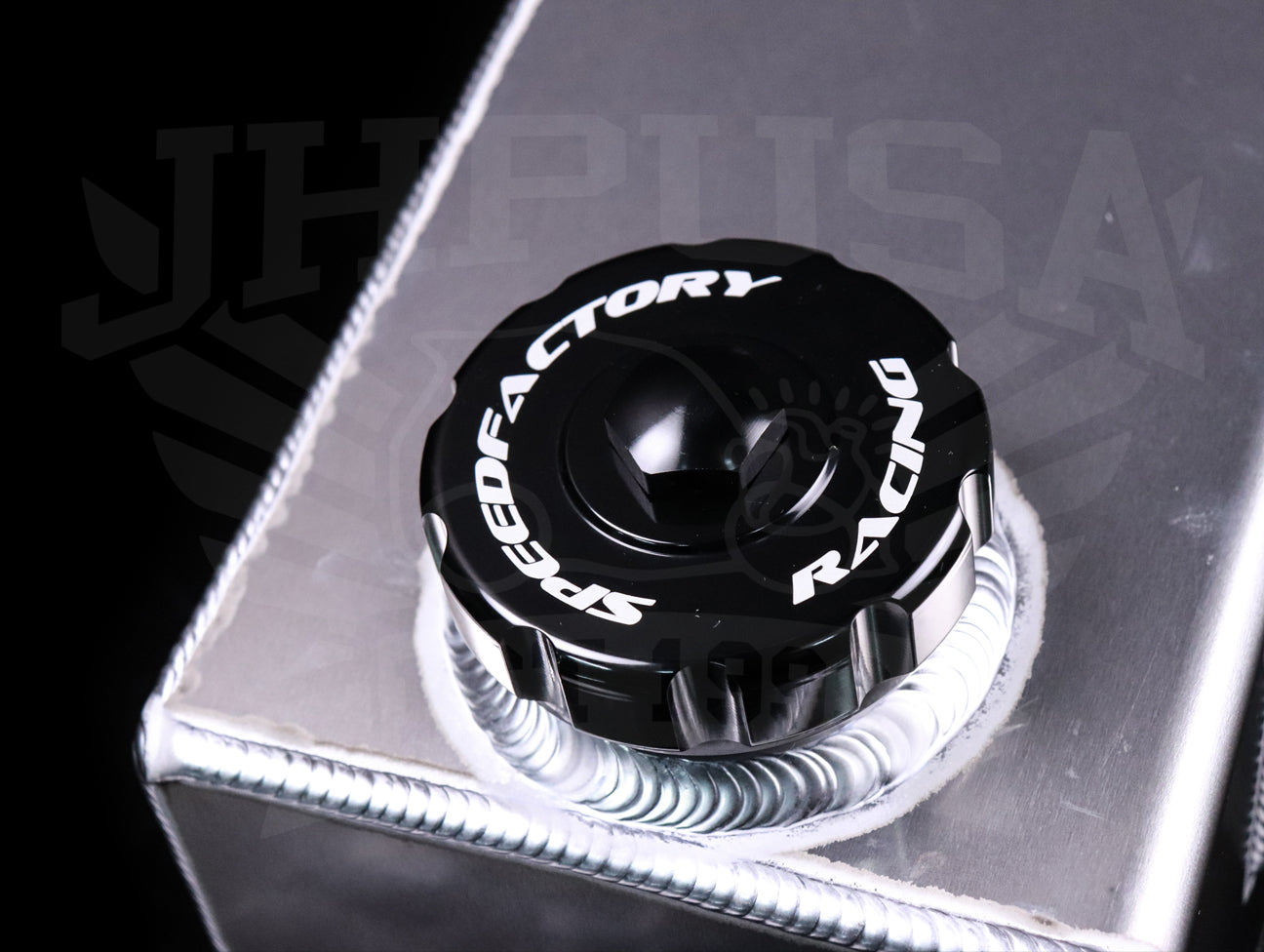

  • Black Anodized SFR 2.5” Billet screw-on fill cap with integrated high flow roll over vent valve to ensure no vacuum or pressure build up and prevent fuel spillage in the event of an accident!  This is an often-overlooked component that is important for proper performance & safety and is mounted at the highest point in the fuel cell to ensure proper operation.  The anodized cap will help prevent corrosion and galling of the threads.
  • Female -12AN ORB feed fitting for maximum flow to support methanol cars.  Easily adaptable to any desired size feed line and eliminates having to cut off and re-weld on a new fitting if yours gets worn or damaged, or you change your feed line size!  The fitting is centrally located to clear the hump in the firewall and allow you mount a -12AN pre-filter directly to the cell for ultra-efficient fuel system plumbing (see images).
  • Female -10AN ORB return fitting is positioned to direct returned fuel to the outlet for superior performance when fuel level is low.
  • Pre-welded mounting tab for easy installation.
  •  Large 1.9 gallon capacity to support thirsty turbocharged cars on methanol
  • Expertly TIG welded
  • Laser-cut SpeedFactory Racing badge

Tested Direct Fitments:

DC Integra (1994-2001)

EG Civic (1992-1995)

EK Civic (1996-2000)

*Will fit other Honda/Acura models with modification
