K-Tuned CMC Billet Reservoir - Civic / Integra / S2000

K-Tuned CMC Billet Reservoir - Civic / Integra / S2000

SKU: KTD-CMC-RS5

Regular price $79.99
Sale price $79.99
Vehicle
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.

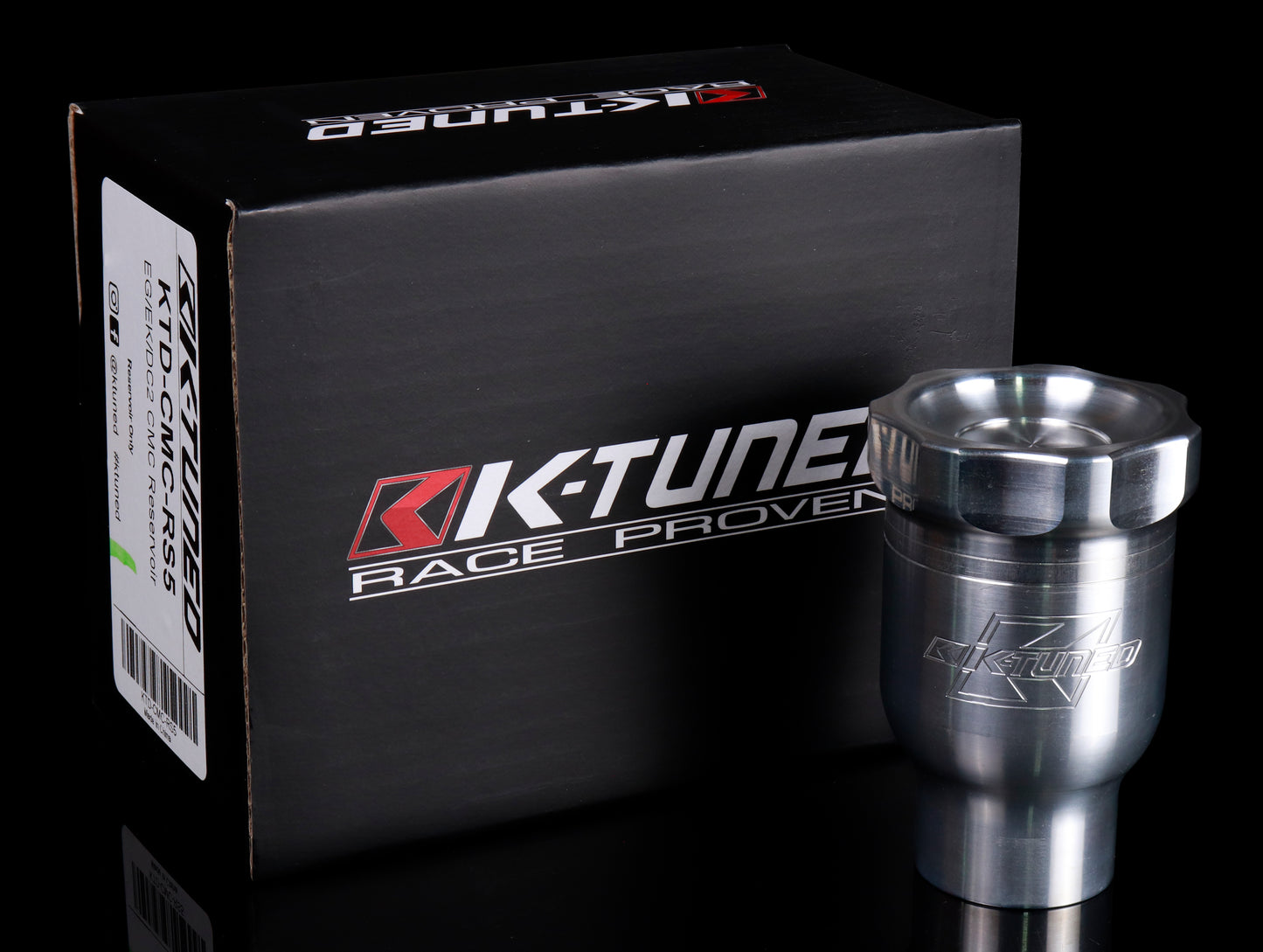

The K-Tuned billet Clutch Master Cylinder (CMC) Reservoir is a direct replacement of the OEM reservoir for both S2000 and Civic/Integra CMC reservoirs.

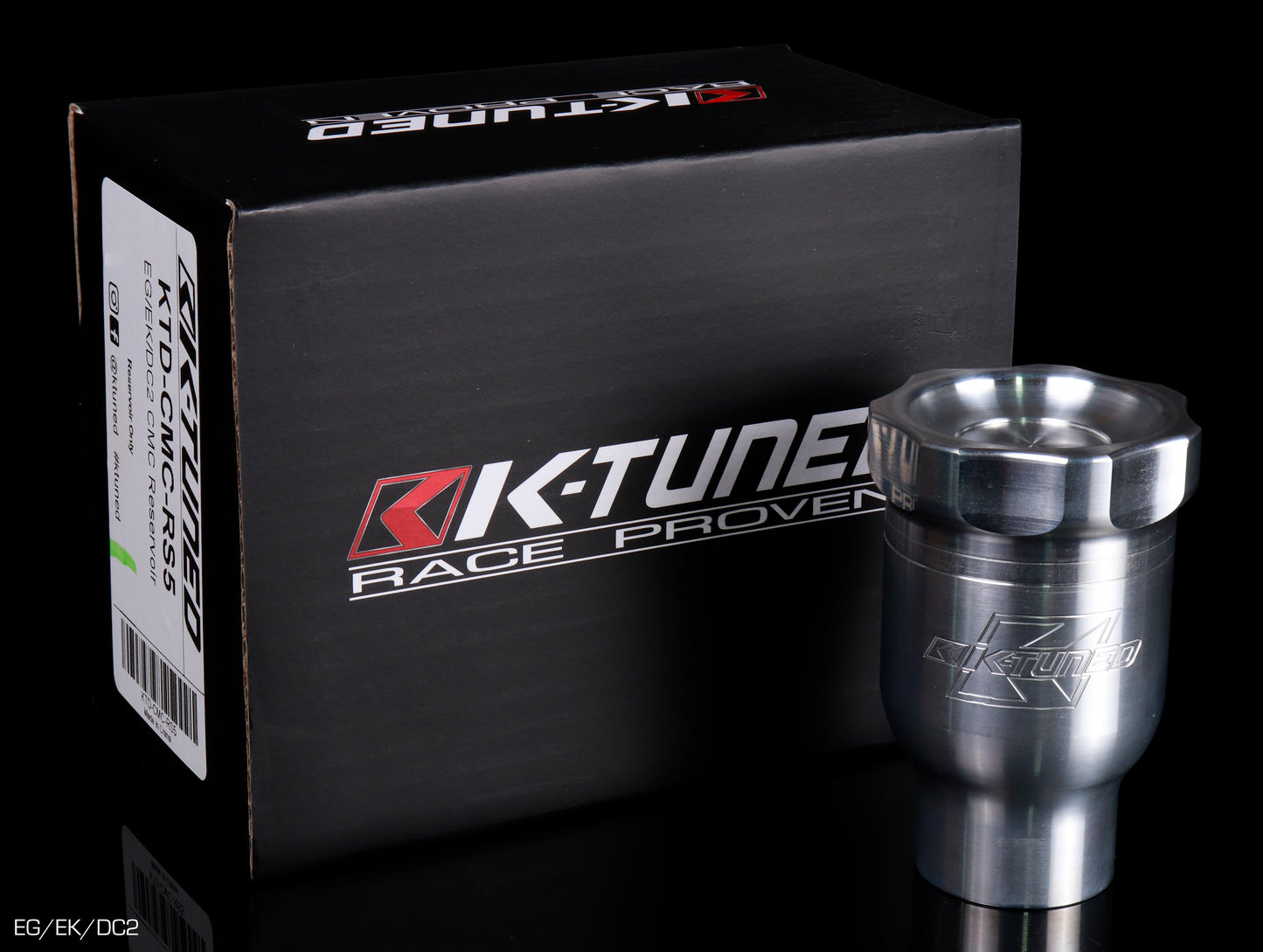

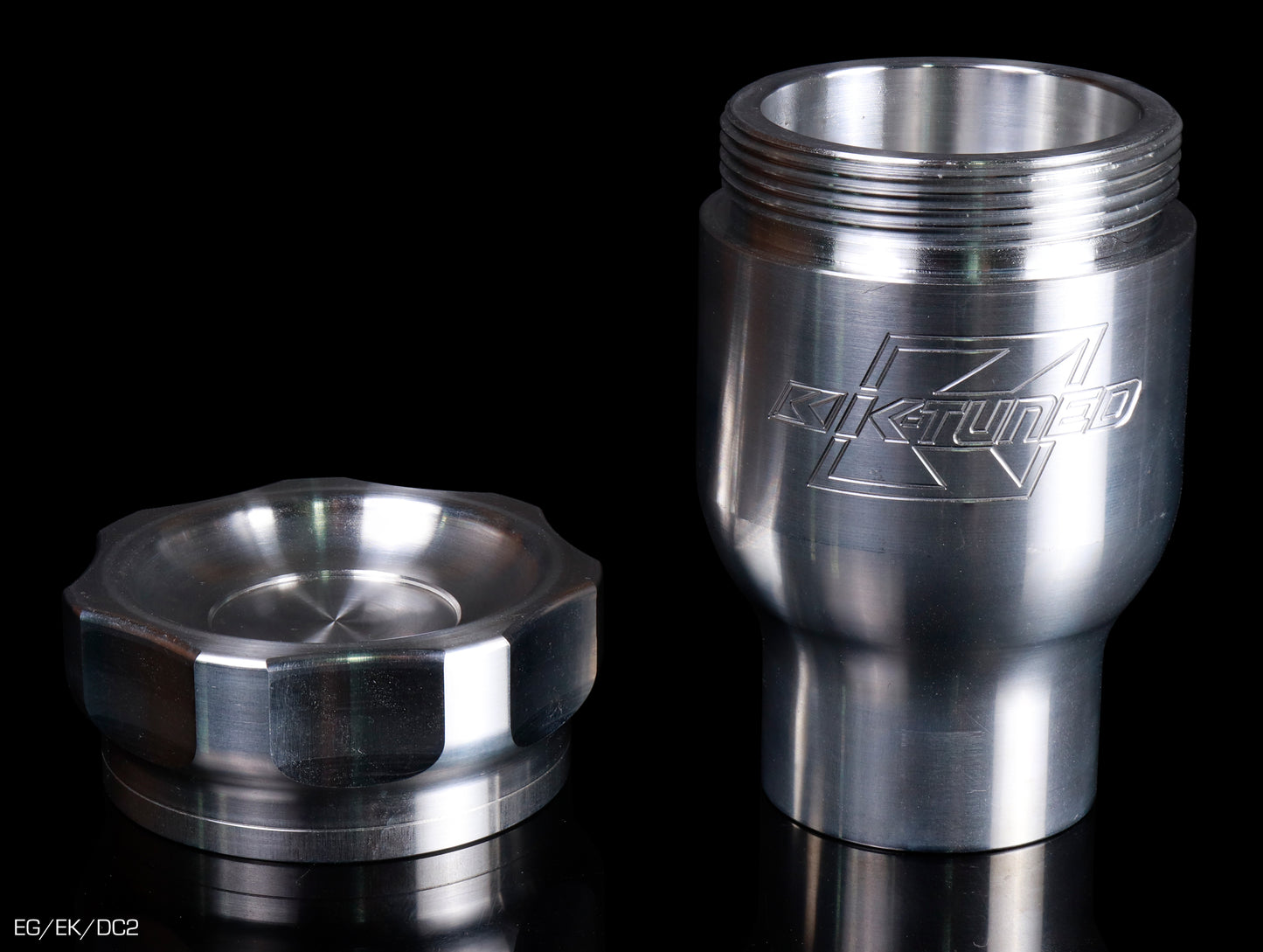

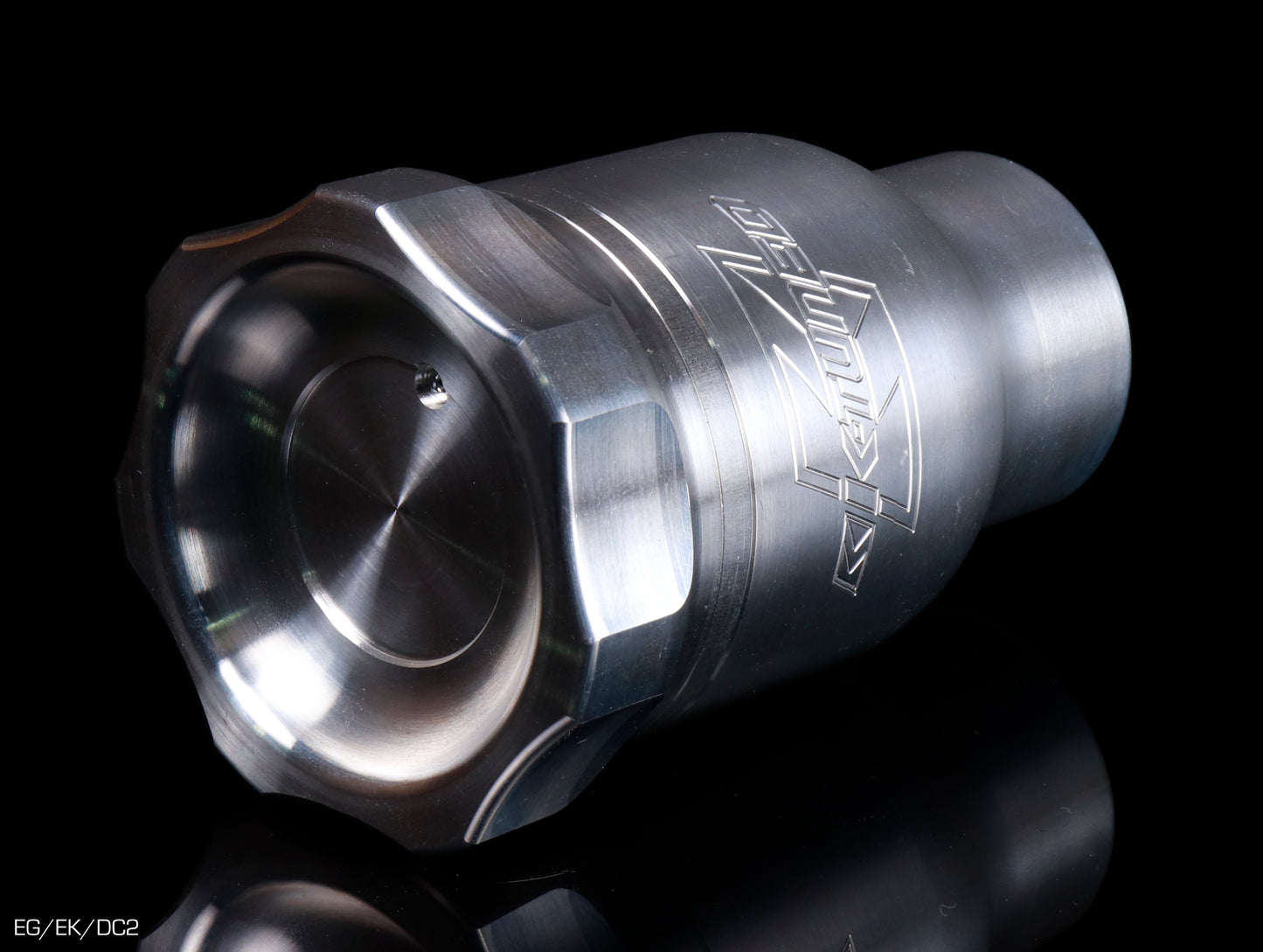

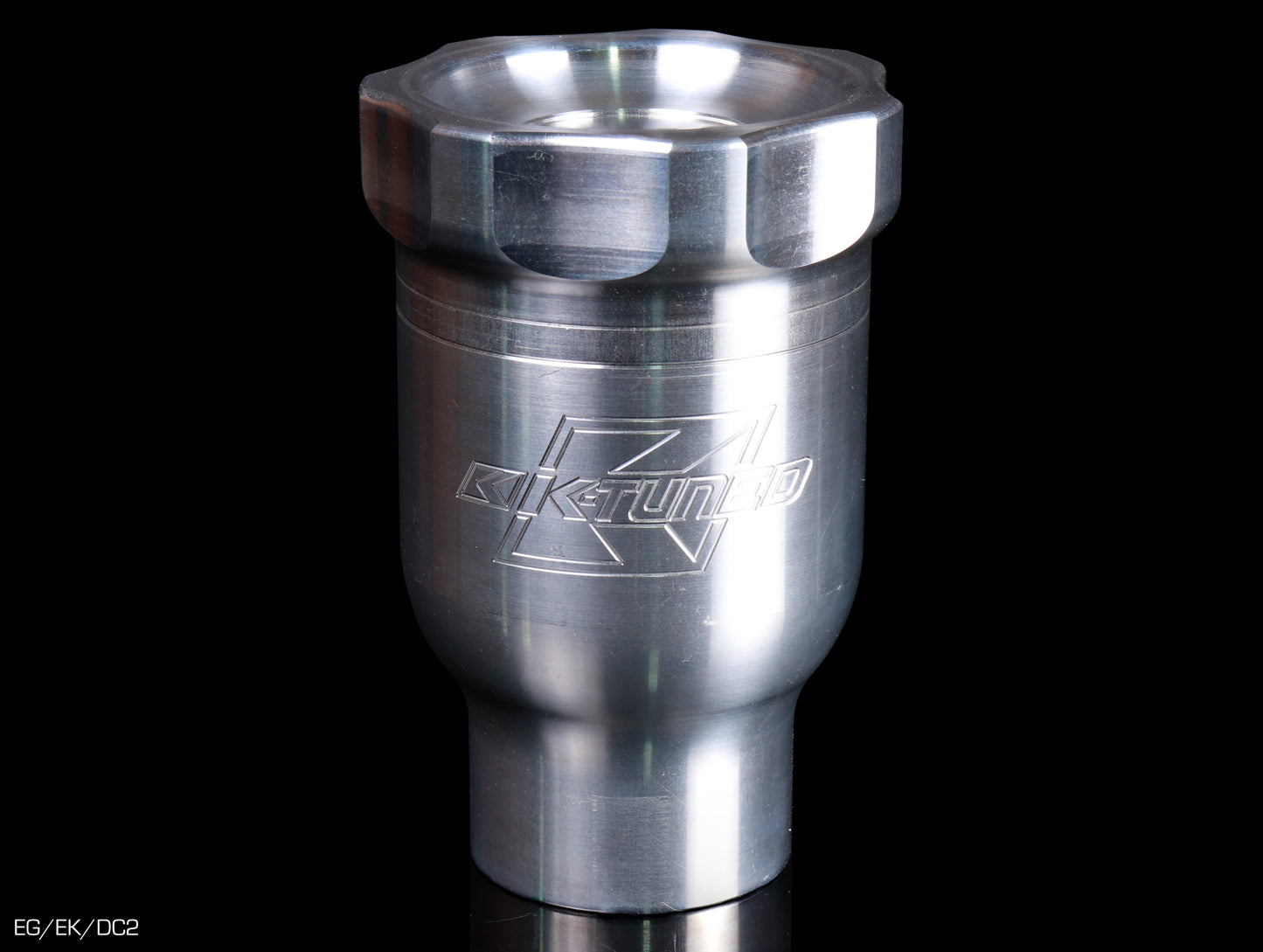

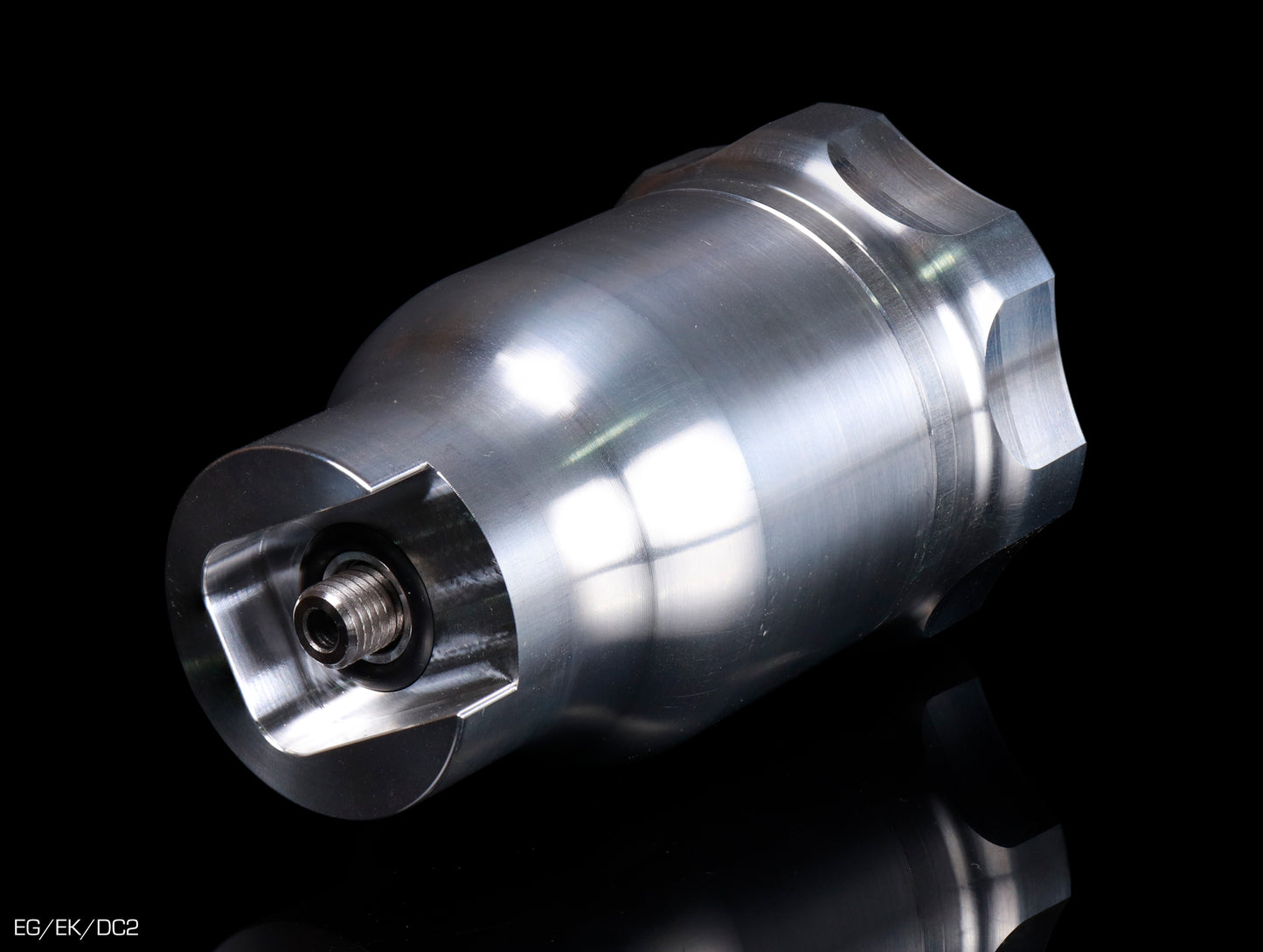

EG/EK/DC2 CMC Reservoir

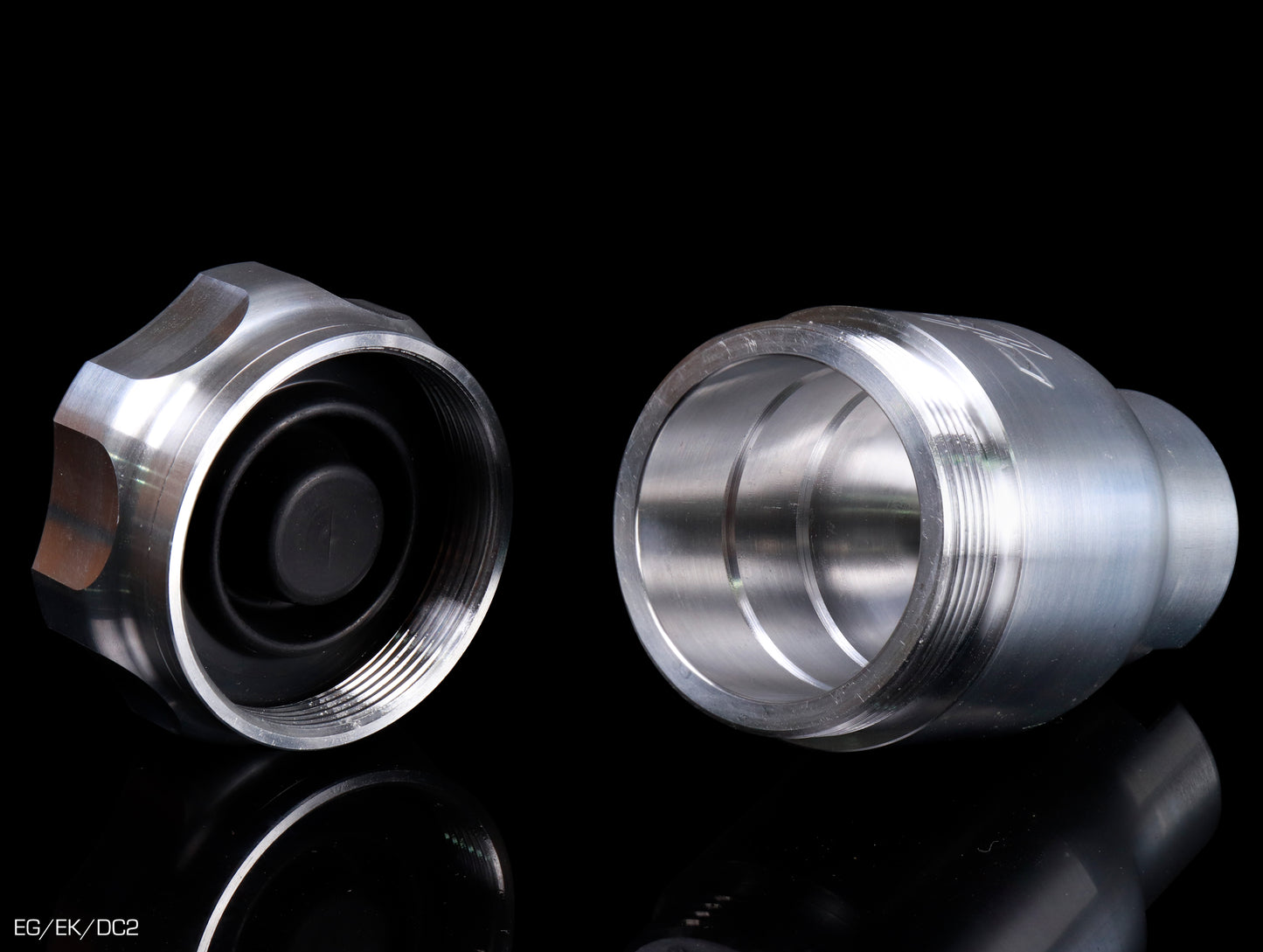

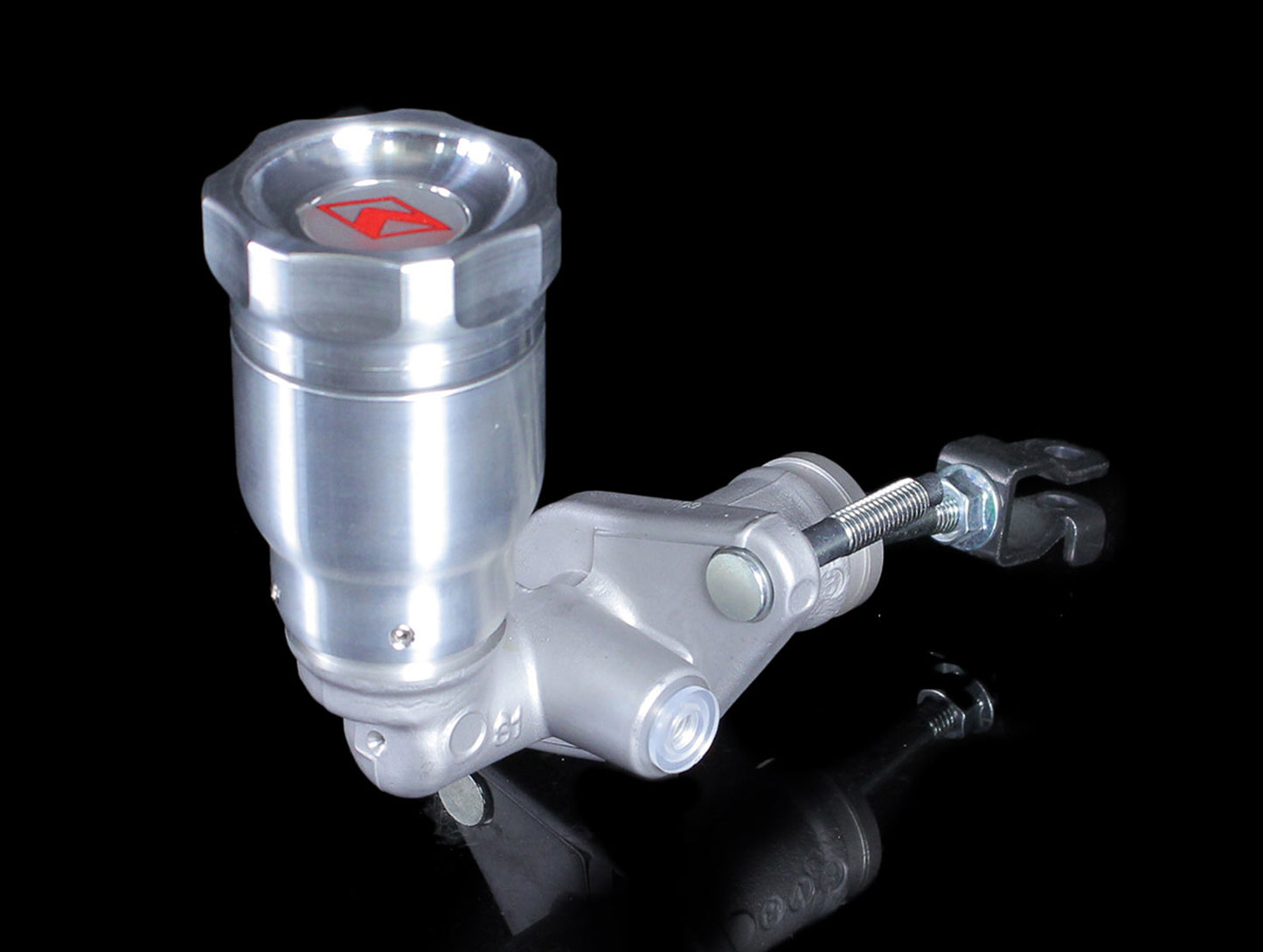

You no longer need to get an S2000 CMC and adapter to have the reservoir mounted directly on your master. The reservoir removes the stock line and remote mounted reservoir. Using a custom fitting and double seal the aluminum reservoir is mounted right to the CMC similar to the S2000 style. Machined from 6061 aluminum it offers the same volume as OEM. The double o-ring seal ensures no chance of leak. The diaphragm allows fluid movement without letting air interact with brake fluid. This is crucial as brake fluid is hygroscopic (absorbs water from the air) which can cause premature clutch fatigue and overheating.

This can be changed without re-bleeding clutch system. First, place an absorbent towel or cloth below the CMC. You do not want brake fluid to come in contact with any paint. Remove the clamp on the hose at the master cylinder. Pinch the line as close to the master as possible. This will hold most fluid inside the line and stock reservoir. There will be a small amount of fluid inside the fitting and line that will leak. Be ready for it before you remove the hose. Once the hose is removed you can next remove the fitting on the master. Place a small amount of lube/oil on the o-rings before installing. You want to first press the fitting into the bottom of the reservoir. This can be done using a 12mm socket and extension. Use a small amount of loctite or similar thread locker on threads of fitting and install the reservoir into the master. Once finished you can slowly fill the reservoir with new brake fluid. Test the clutch pedal to make sure it still feels the same and no air was introduced into the system.

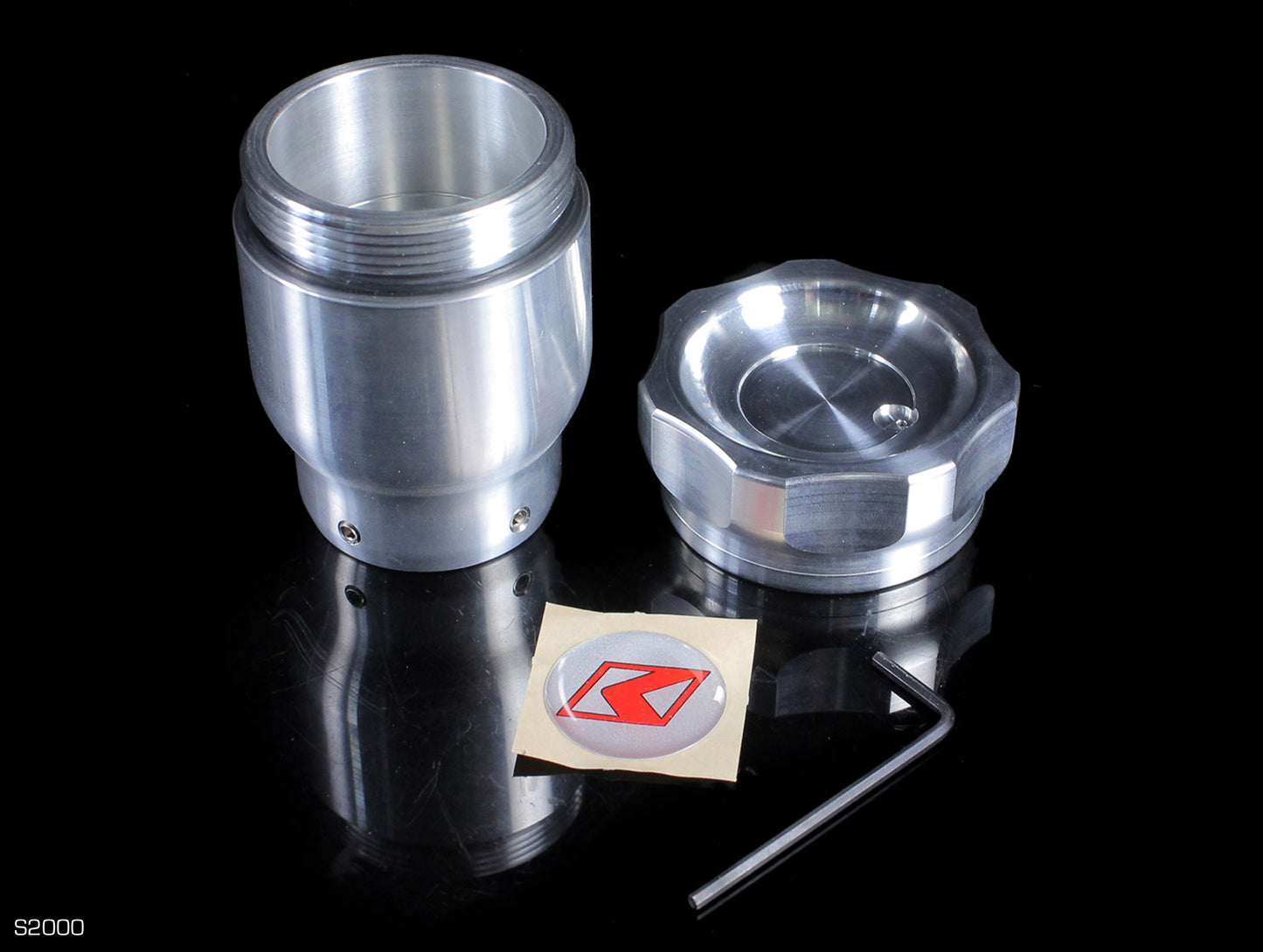

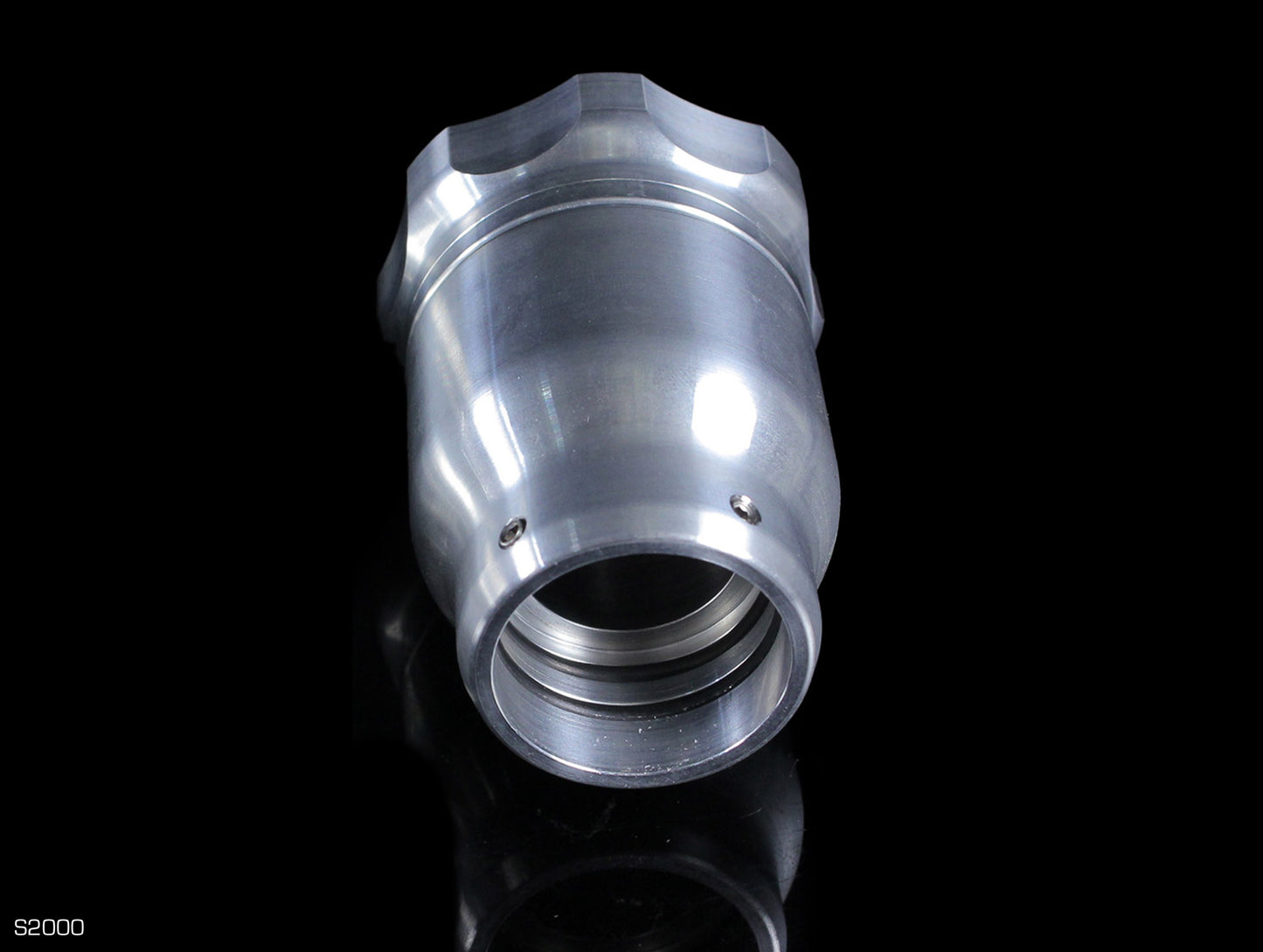

S2000 CMC Reservoir

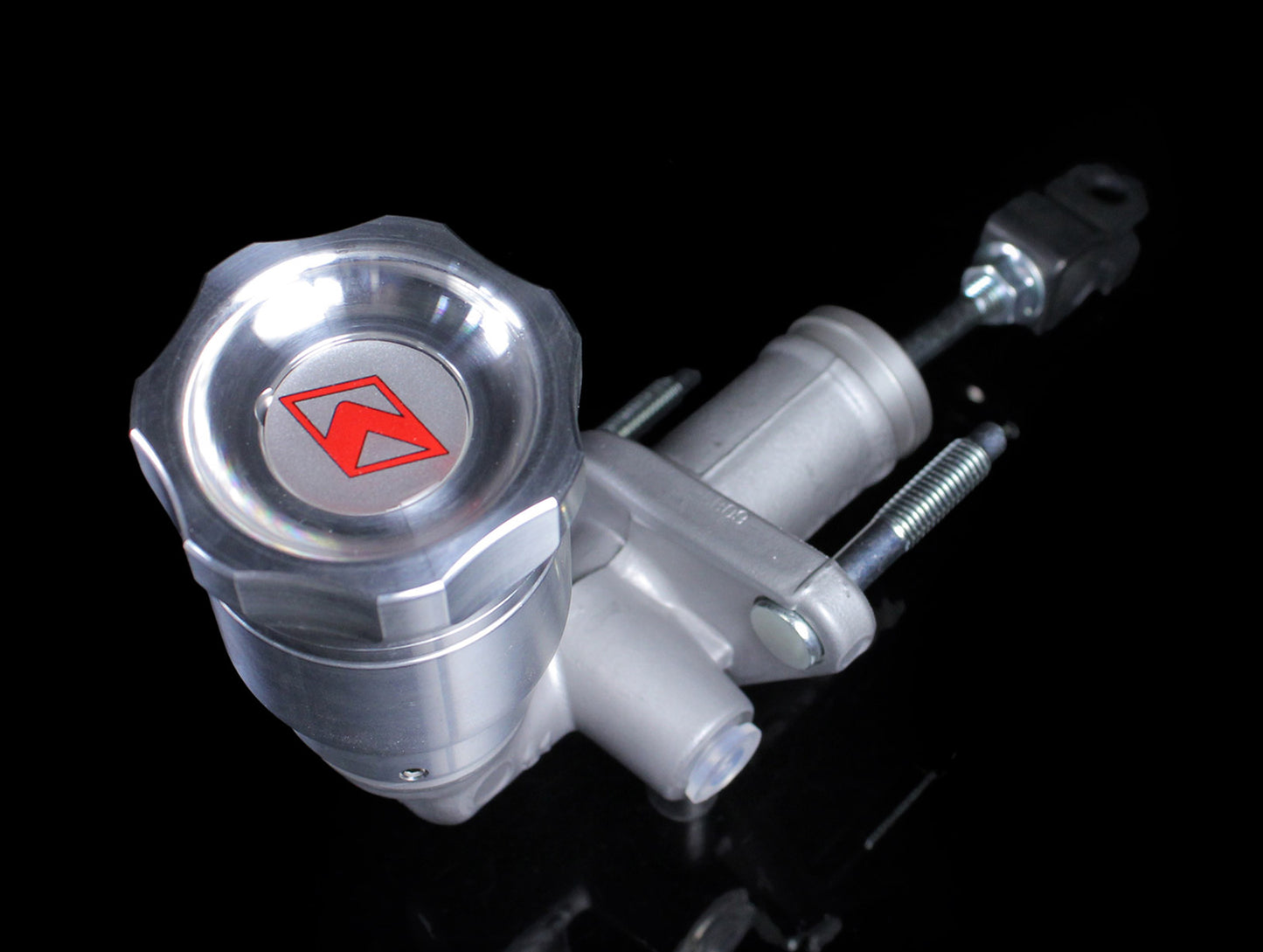

The K-Tuned Billet CMC reservoir is a direct replacement for the S2000 CMC. Machined from 6061 aluminum it offers the same volume as OEM. The double o-ring seal ensures no chance of leak. Set screws lock the reservoir in place once located. The diaphragm allows fluid movement without letting air interact with brake fluid. This is crucial as brake fluid is hygroscopic (absorbs water from the air) which can cause premature clutch fatigue and overheating.
This can be changed without re-bleeding clutch system. First, place an absorbent towel or cloth below the CMC. You do not want brake fluid to come in contact with any paint. Using a syringe or absorbent towel you can slowly suck up the fluid inside the reservoir. Once the brake fluid is low enough you can remove the stock reservoir. Place a small amount of lube/oil on the o-rings before installing. Slowly press the new reservoir onto the CMC ensuring not to pitch or tear an o-ring. Once installed use the set screws to lock the CMC into place.
Using a rag or shop towels to absorb fluid inside original reservoir first.. Place a thick absorbant towel below master to ensure any leaks don't come in contact with paint.
