Hybrid Racing Velocity Stack & Filter

Hybrid Racing Velocity Stack & Filter

SKU: HYB-VSF-01-02

Regular price $62.69
Sale price $62.69
Inlet Size
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.

When it comes to getting the most power out of your engine, the devil is in the details. Paying close attention to how air flows into and out of your engine is an obvious place to start making modifications for optimal performance. A well-designed cold air intake and high-flow cone filter are great ways to let your engine breath better, but a filter on the end of a pipe has its limitations. If you've ever looked inside an intake manifold, you've noticed a curved "bellmouth" profile at the inlet of each intake runner. This bellmouth is added because it increases the efficiency of air moving through the pipe by as much as 70% in the right situations.

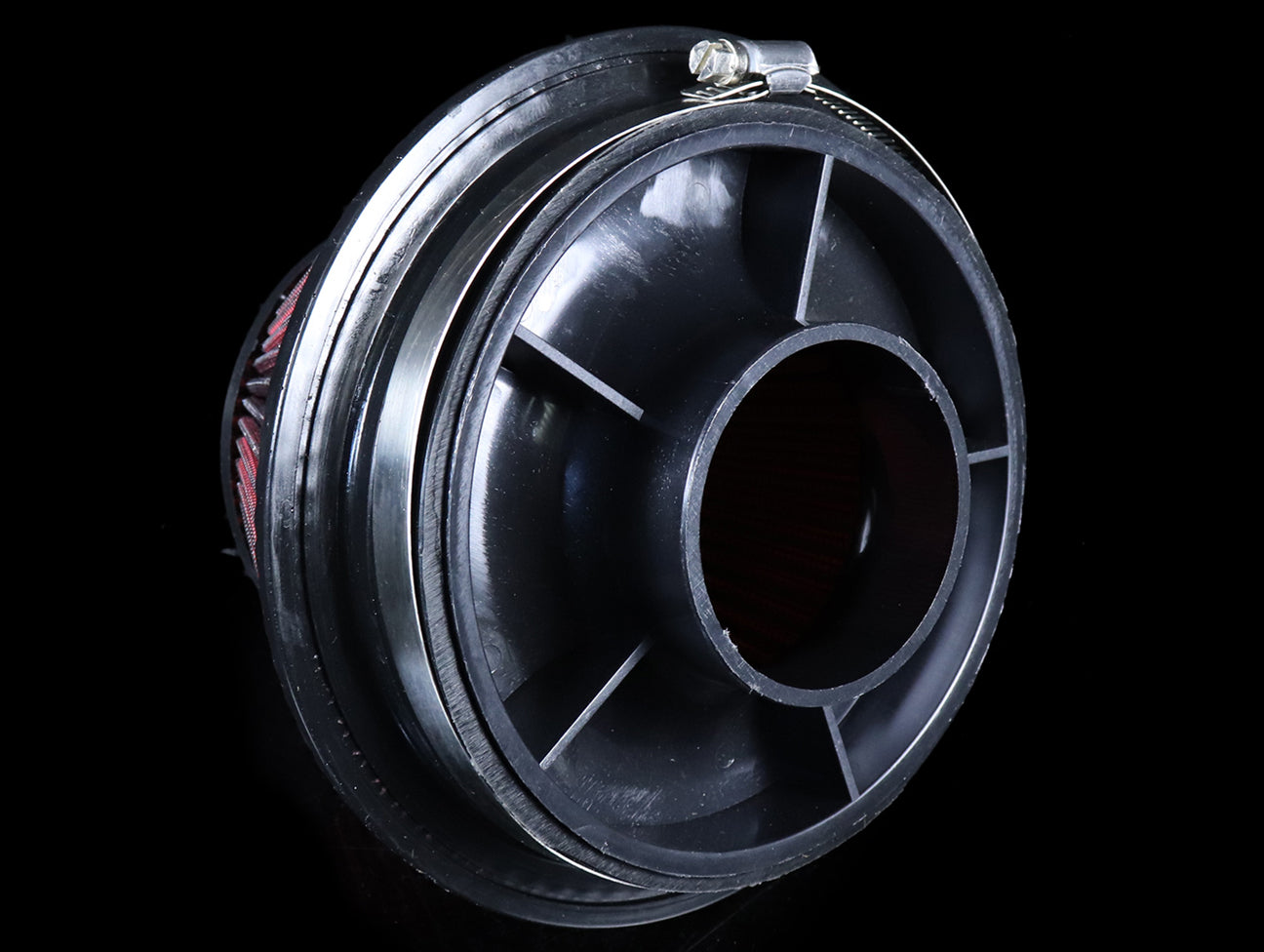

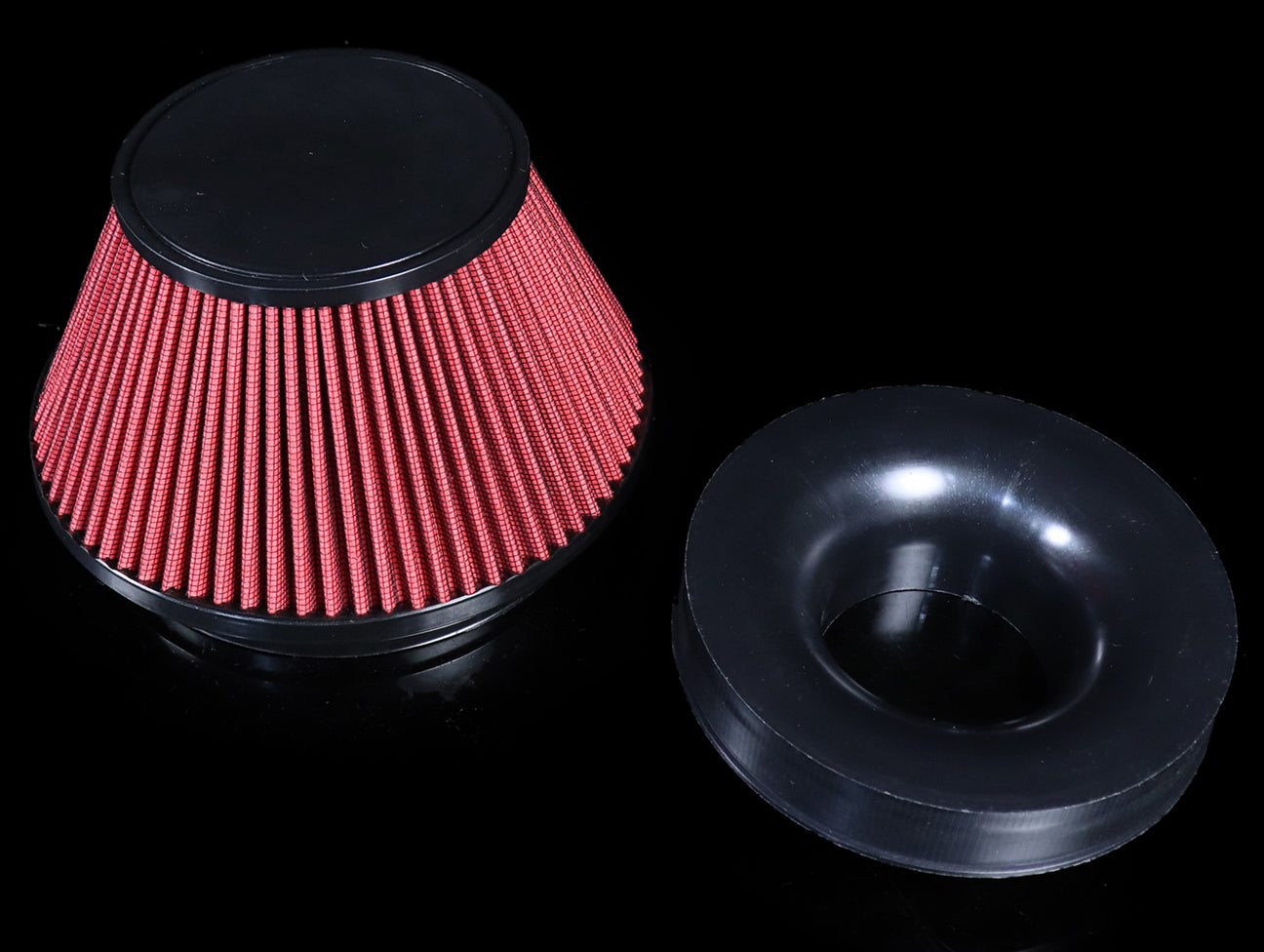

That said, the same sort of benefits can be seen by adding a similar bellmouth (in this case a velocity stack) to the end of your cold air intake. Included in each kit is a velocity stack, filter, and a hose clamp to connect the two together. The velocity stack has a 6" inlet and a 3" outlet. All you need to connect it to your 3" cold air intake is a 3" silicone coupler and (2) hose clamps. The velocity stack has a 2.25" overall height. Fully assembled, the filter and velocity stack has a 6.25" overall height and 7.5" diameter.

NOTICE: Hybrid Racing recommends always running the filter on the cold air intake. While slight gains can be seen by pointing the velocity stack into oncoming air without the filter, this puts the engine at risk as unfiltered air can cause unwanted debris to enter your engine.

Features

  • 6" to 3" or 3.5" velocity stack reducer
  • Designed to improve airflow into your intake
  • Durable, light weight injection molded construction

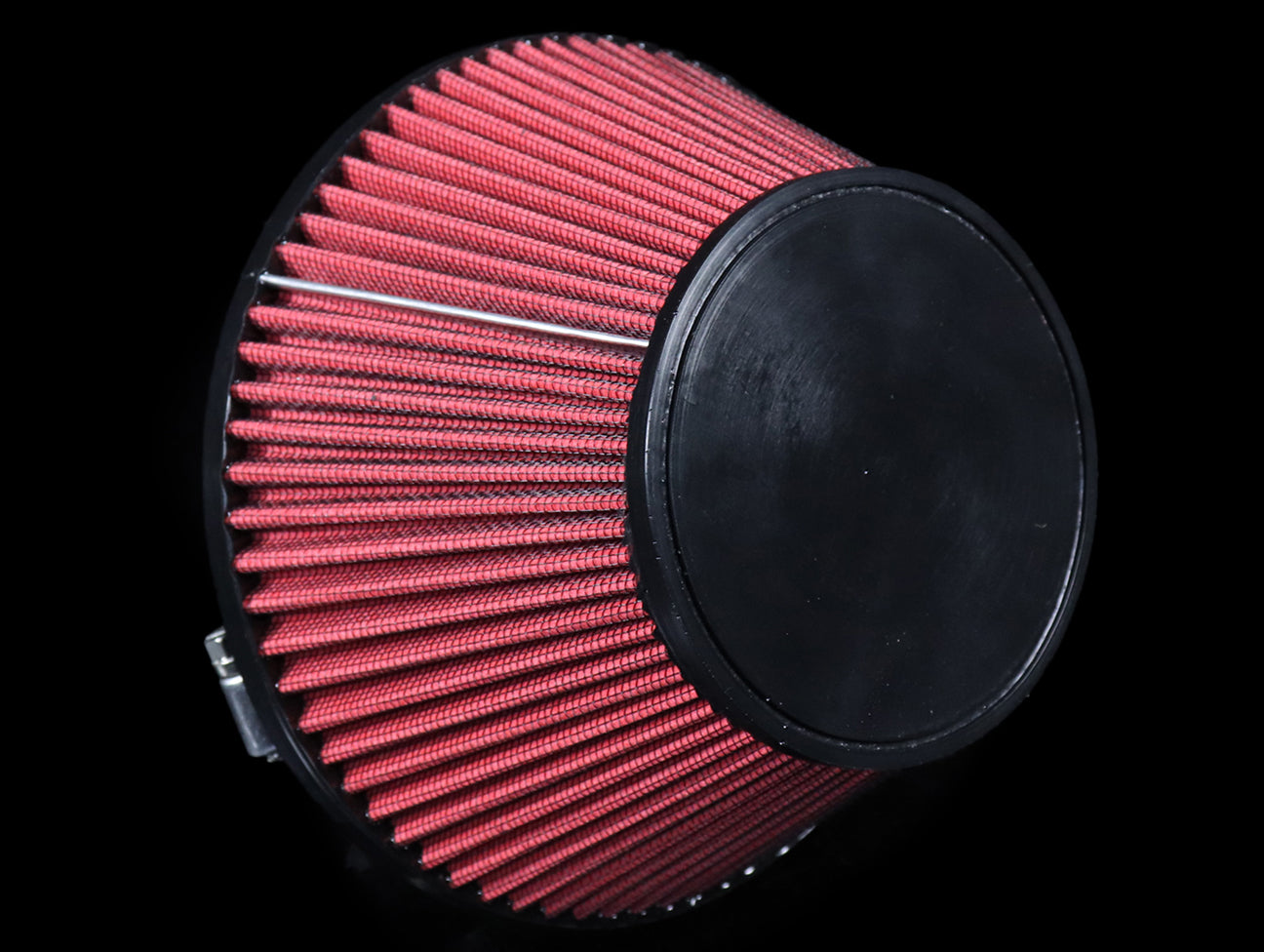

  • 7.5" wide, 5" tall cone filter included
  • 6" diameter hose clamp included

Optional inlet diameters:  3.0" or 3.5"

Universal fitment.
