K-Tuned Race-Spec Shifter Cables & Bracket - F / H-series Swap (Civic / Integra)

K-Tuned Race-Spec Shifter Cables & Bracket - F / H-series Swap (Civic / Integra)

SKU: KTD-H22-RAC

Regular price $439.99
Sale price $439.99
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.

K-Tuned has been seeing a growing following of people using OEM K-Series shifters and cables with their H-series engine swap in the EG/DC2 and EK chassis. They have to say it was pretty hard for them to look at some of these setups with one cable long enough to fit under the car while the second cable ended up too short and had to be run through the interior of the car in order to reach the transmission. K-Tuned instantly thought that the setup needed some help, so they decided to design something that properly fits this shifter and engine swap application.

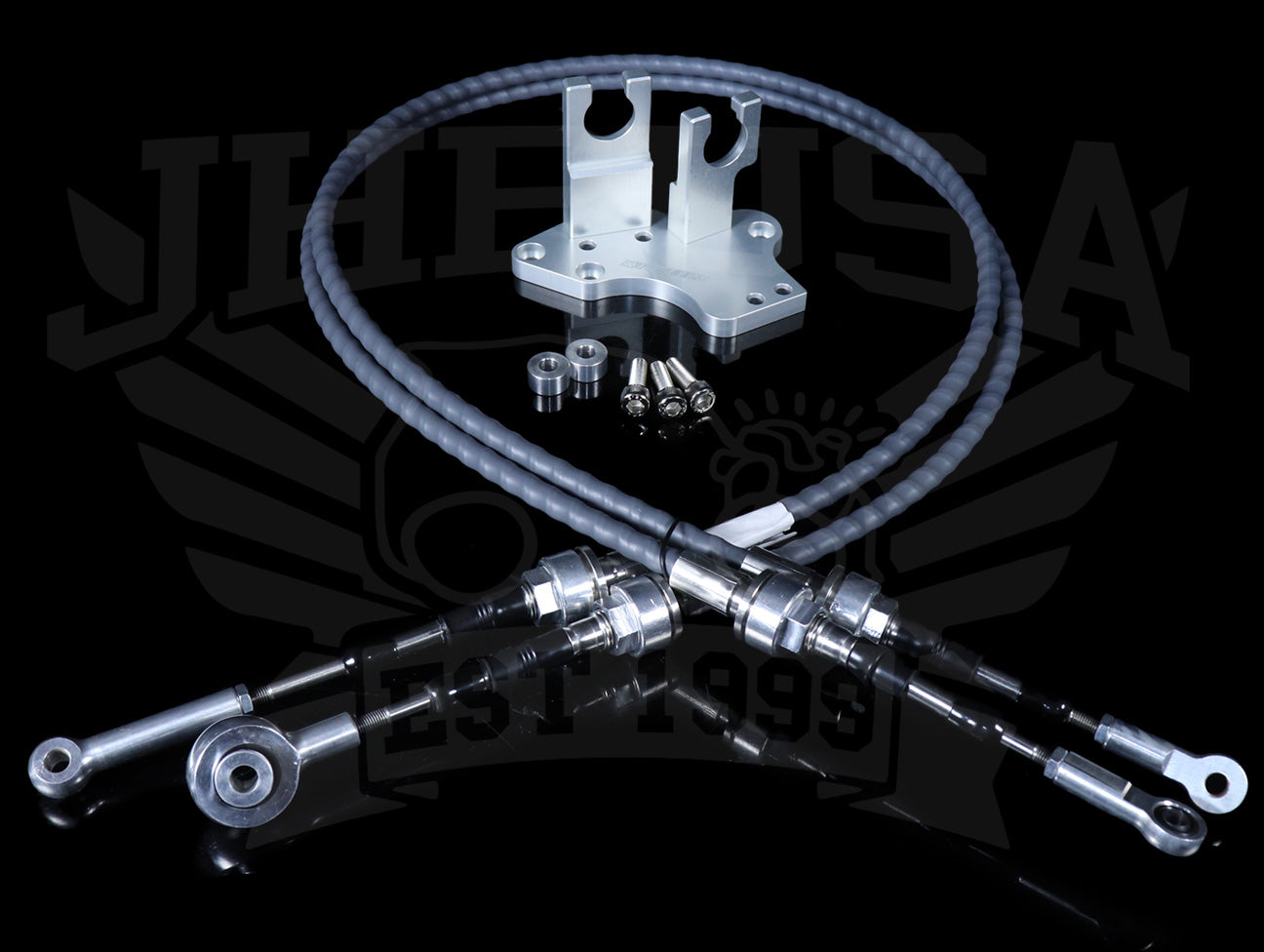

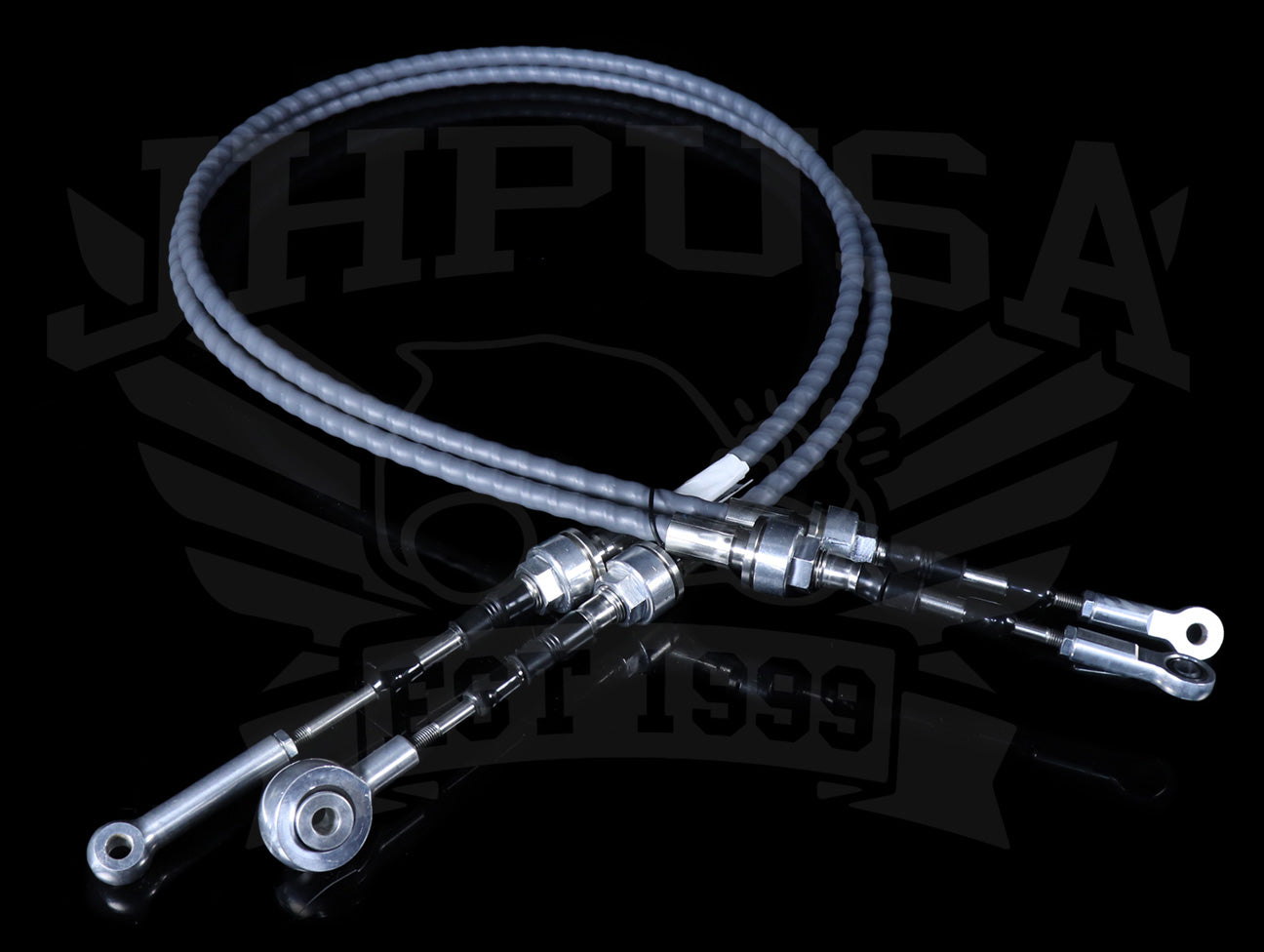

This ultimate H-series shift package includes the billet cable bracket with a set of new modified Race-Spec cables. As for the shifter, this K-Tuned kit will work with their award winning Billet RSX Shifter, the o-Cut K-Swap Shifter and even the plastic OEM shifter if you are on a budget.

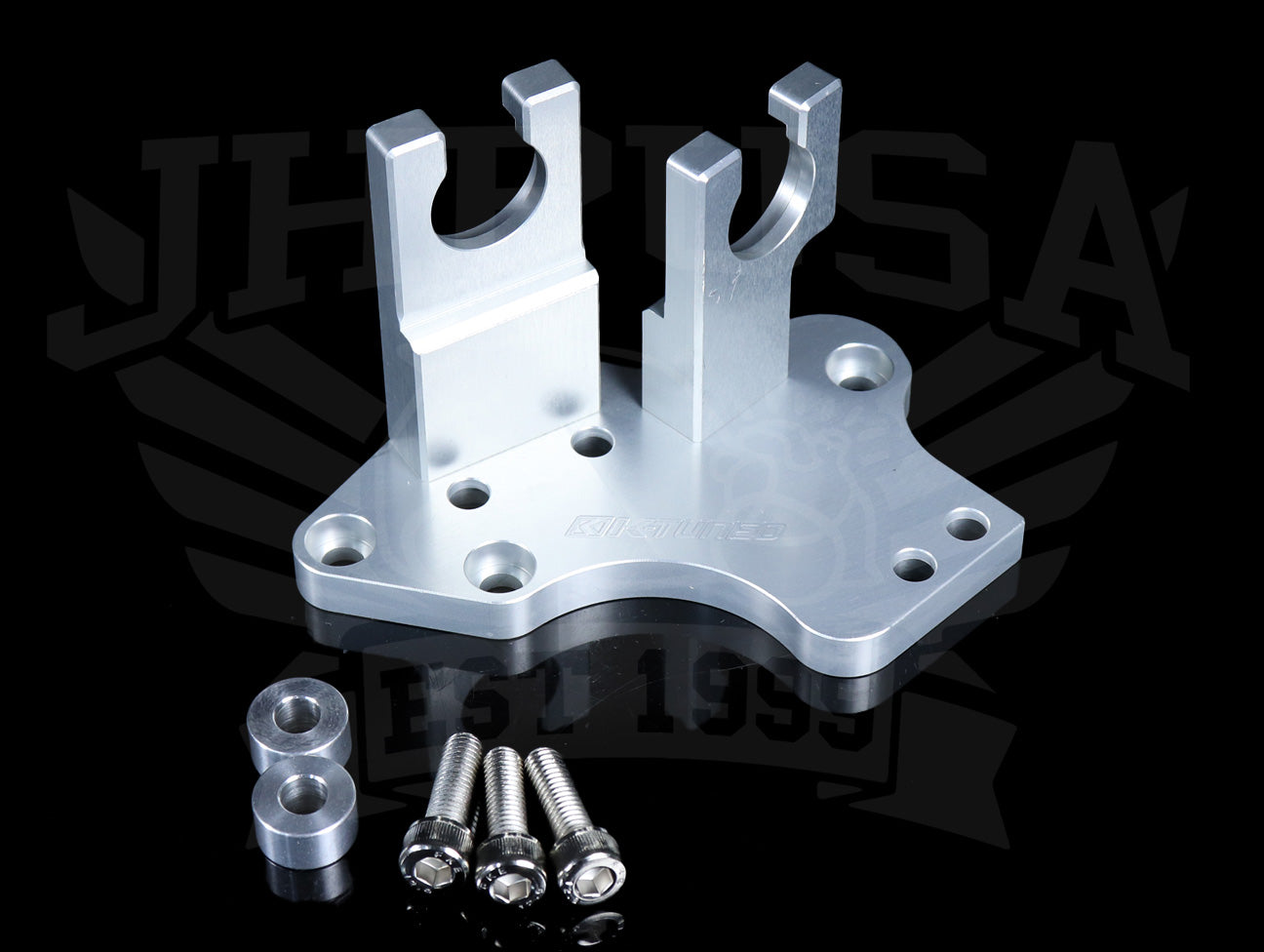

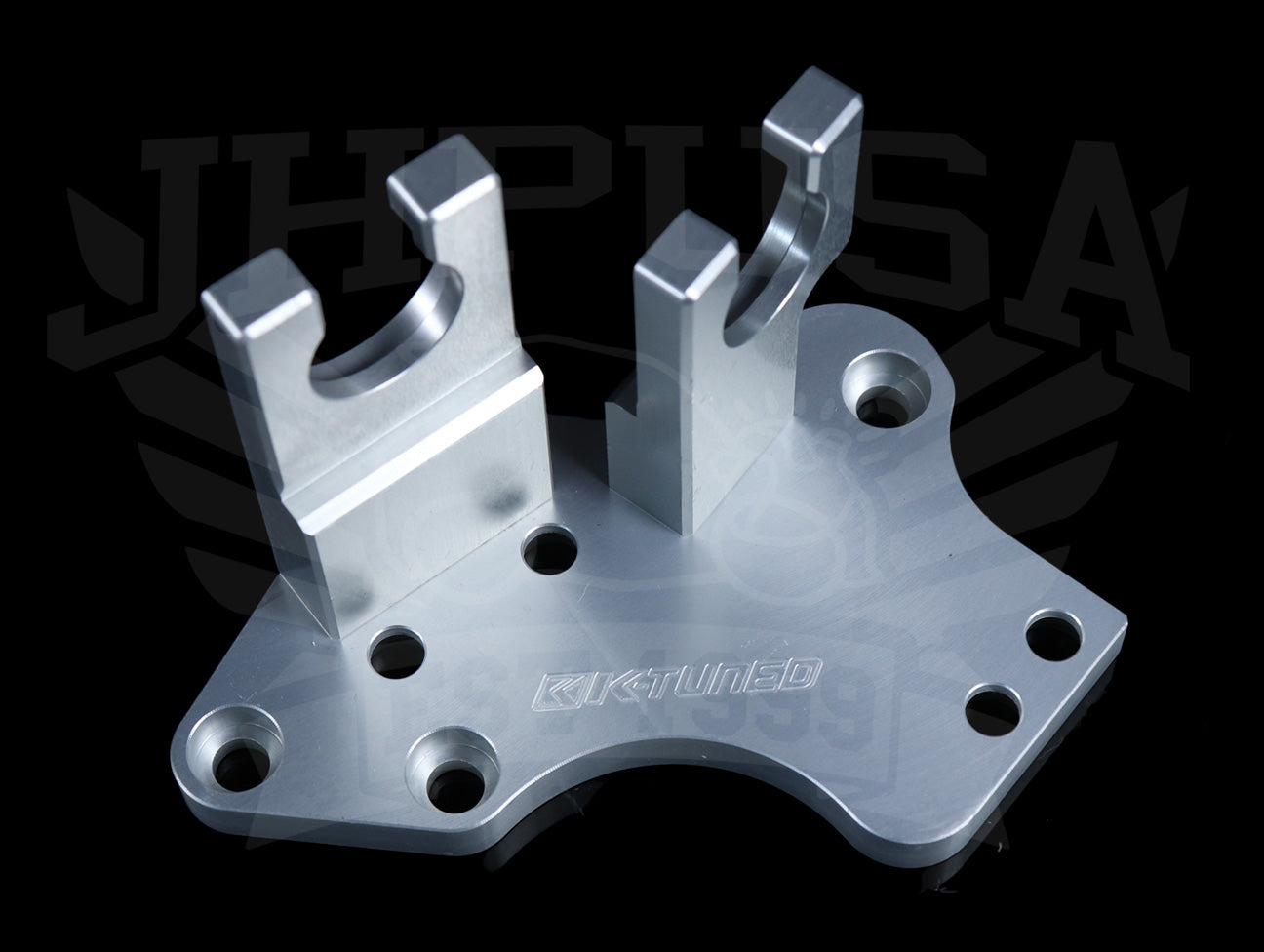

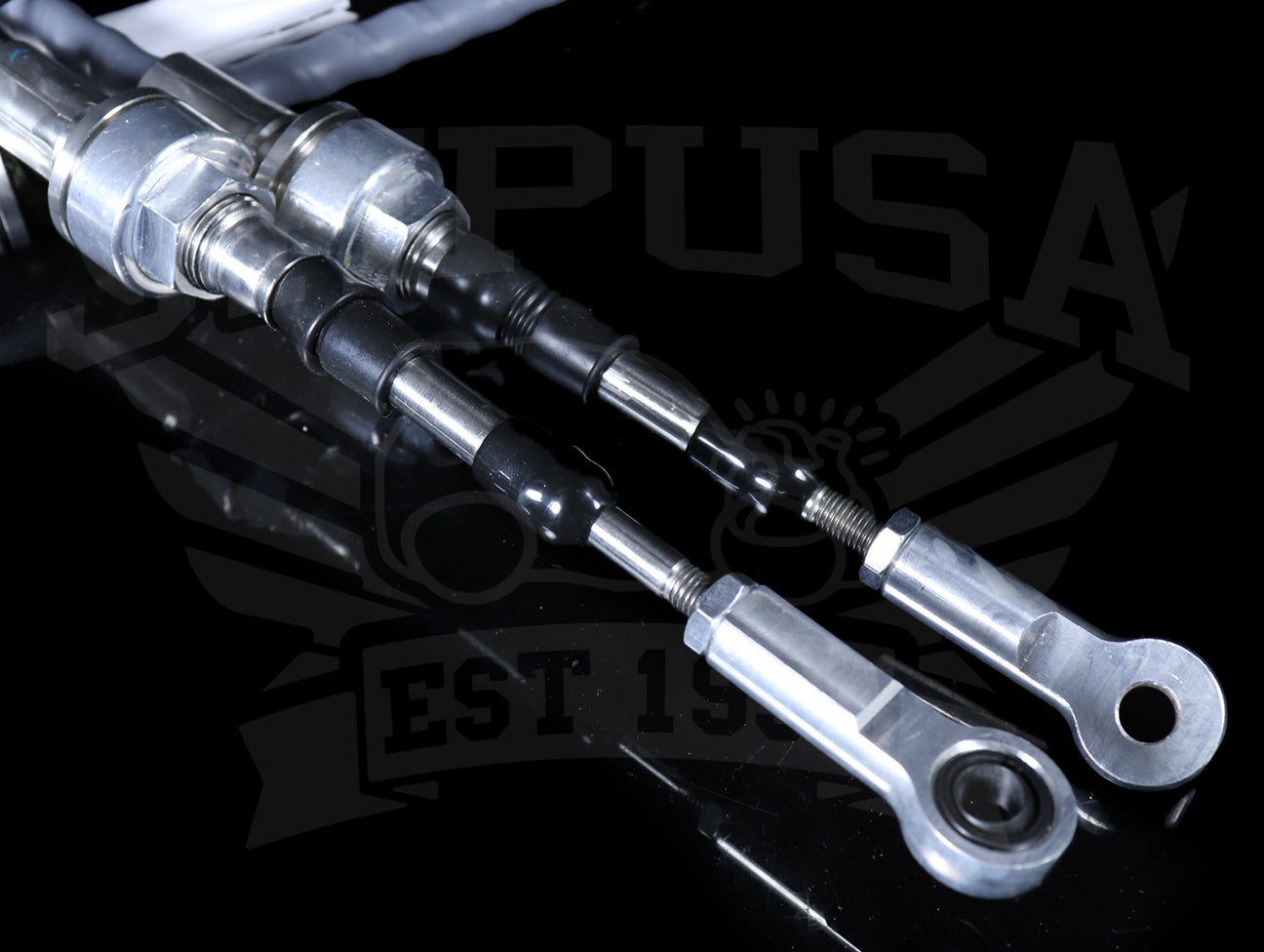

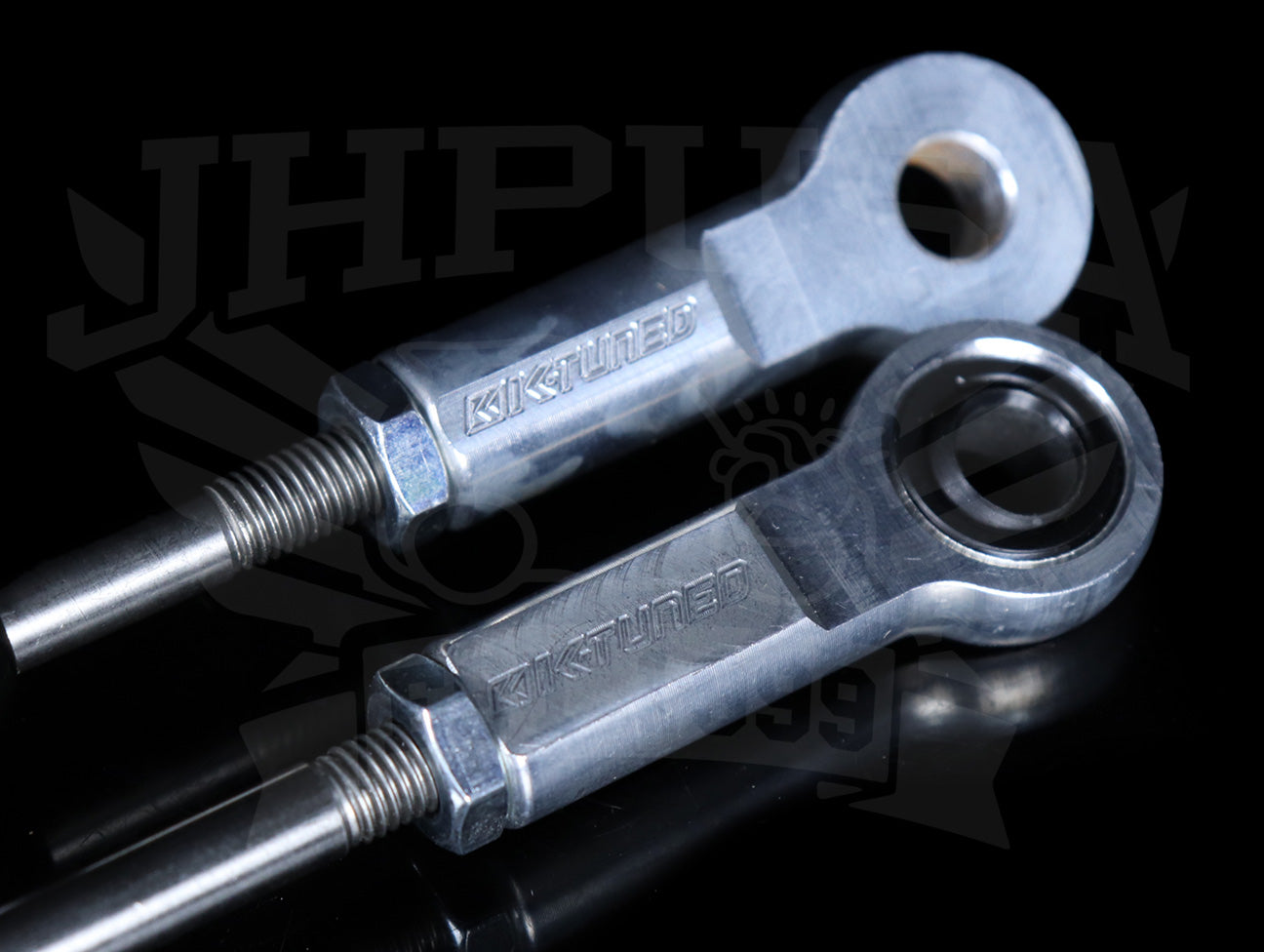

All kits include a billet bracket that adapts the shift cables to the transmission with the proper approach angles leading to the shift selector. These angles are critical to fitment and smooth cable operation. To solve the length problem K-Tuned made an extended billet rod end that adds approx. 2" to the cable. This extension is installed by simply cutting off the existing rod end on the short cable and using a die to tap a thread on it. Once threaded, the new extended rod end is put on with jam nut to lock it in place. The added length now allows both cables to run below the car side by side. If you do not have cables for your setup already, we have kits available with a set of our OEM or Race Spec Cables that are already modified for H-Series shifting. This will also be helpful for customers who are not as confident doing the cable modification themselves.

Vehicle application: The cable bracket will fit all 1992 to 2001 H and F-Series transmissions. Also note that these kits are intended for use with a K-Series shifter on an H or F-series engine swaps into the EG/DC2 and EK chassis.

NOTE: To install the extended rod end a _ x 28 die is needed. You will only need this die if you are threading your shift cable yourself.
