Supertech Forged Connecting Rods - B-series

Supertech Forged Connecting Rods - B-series

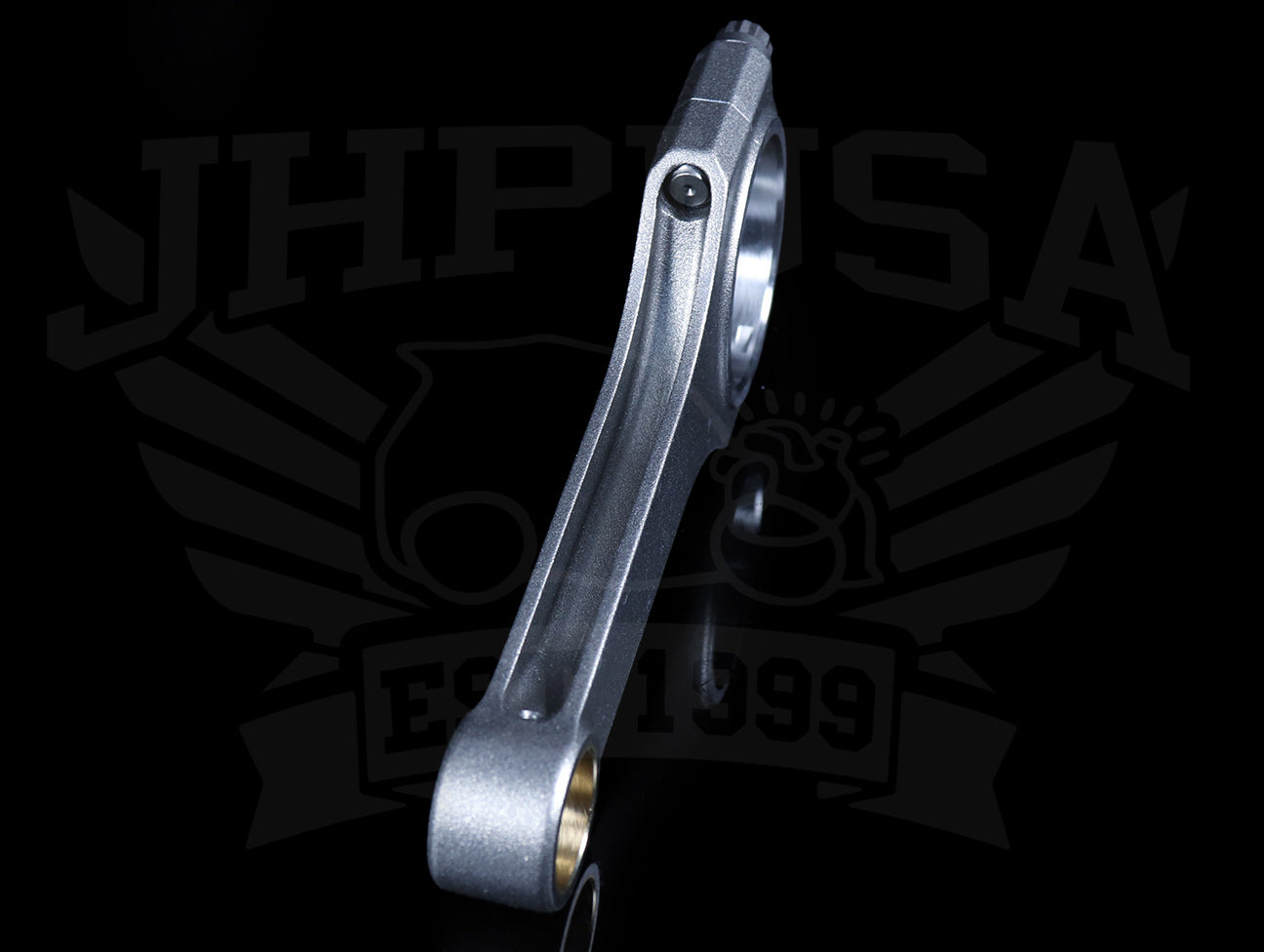

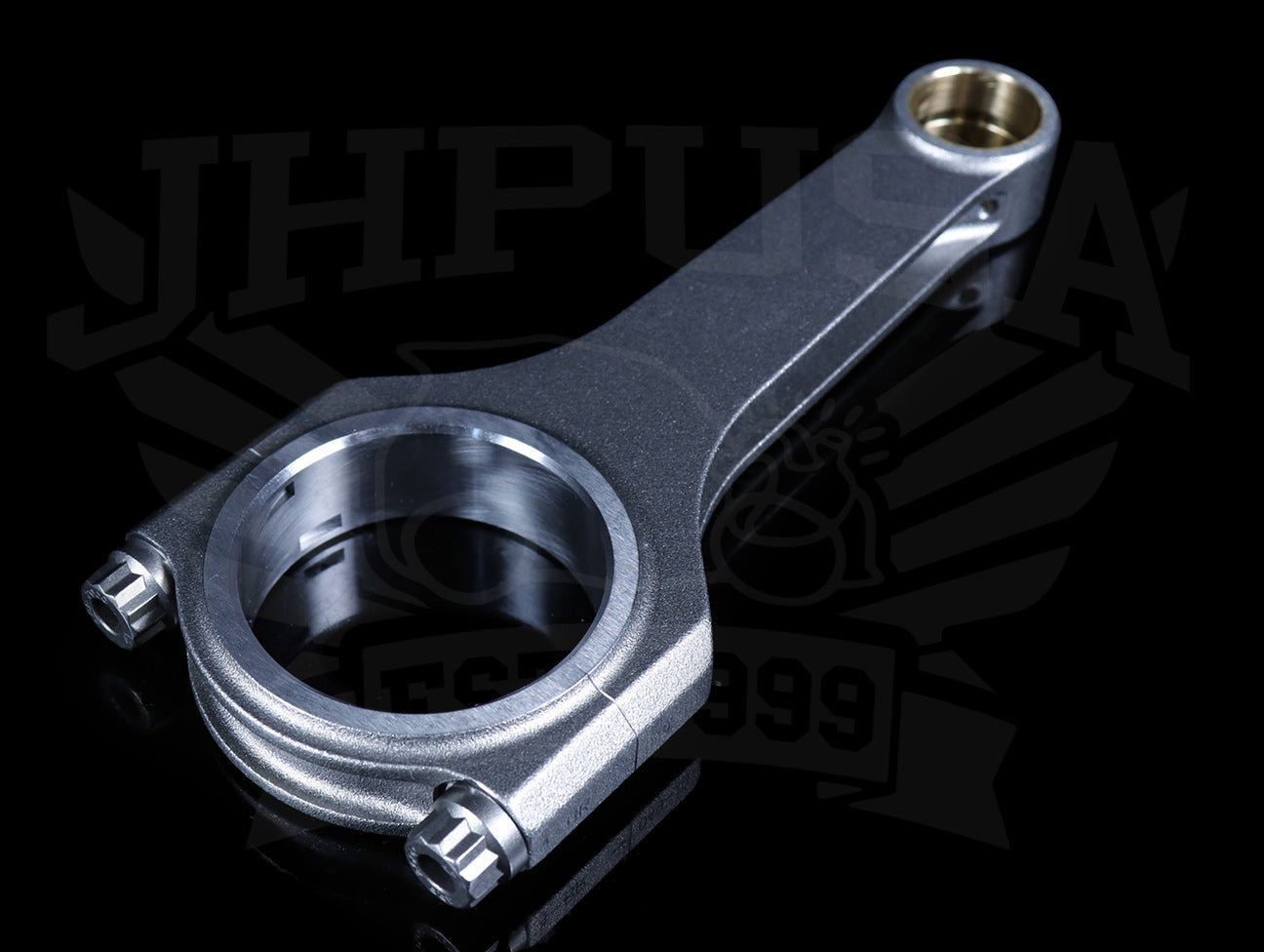

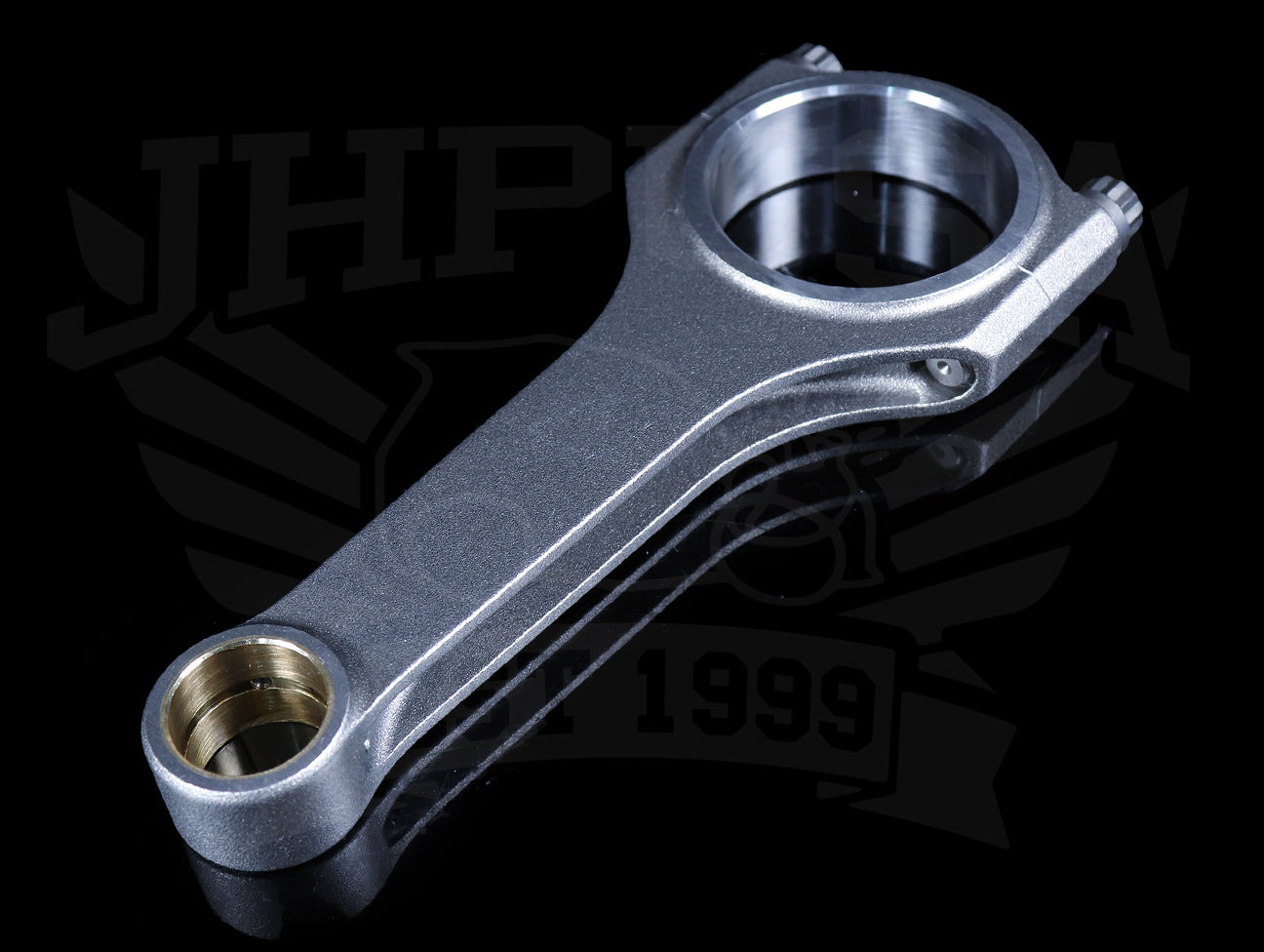

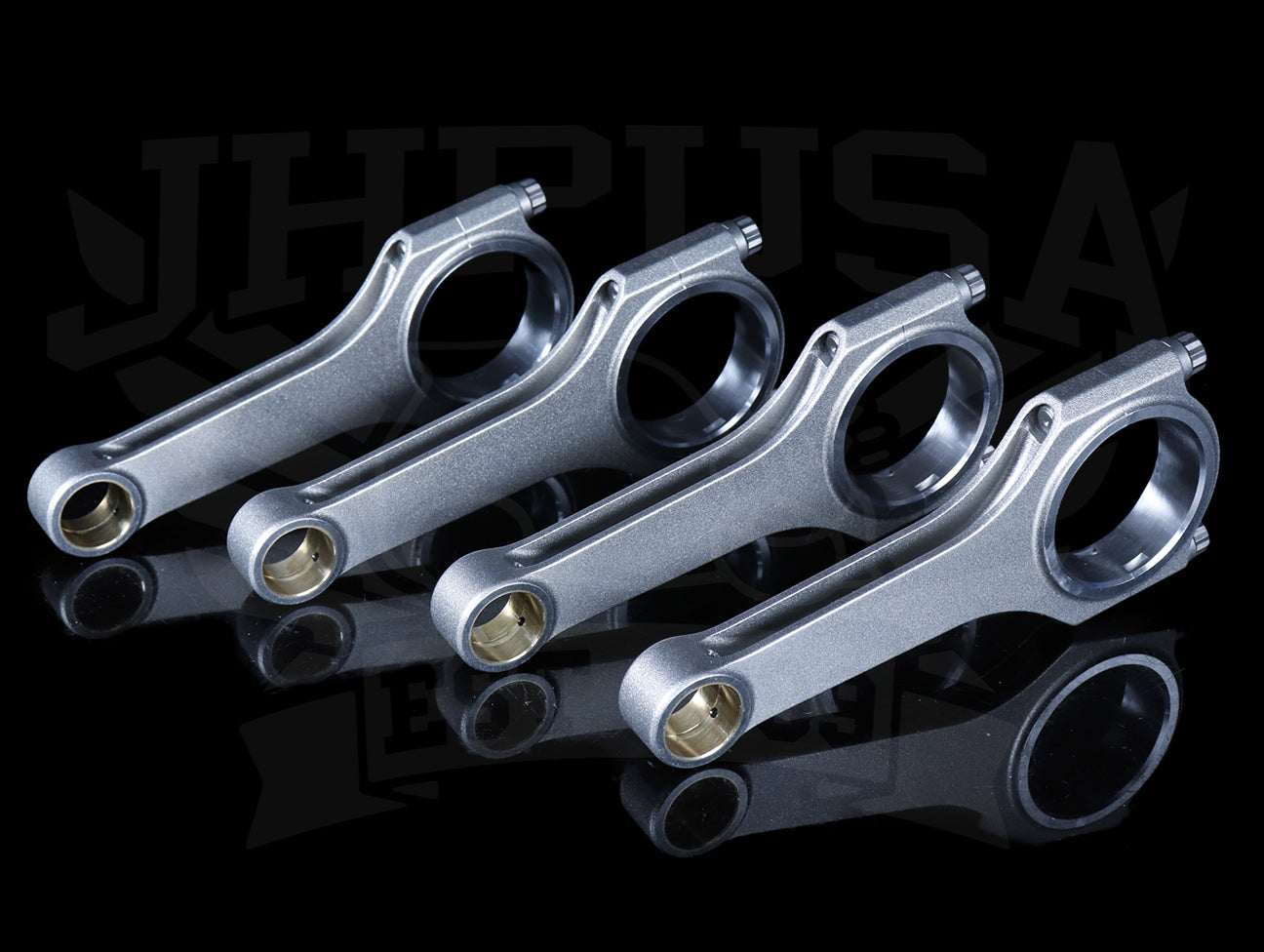

Supretech newly developed rods are manufactured from a high tensile strength 4340 alloy, offering excellent wear and fatigue resistance in optimal conditions.  Supertech rods feature an H-beam design and come with ARP 2000 bolts capable of achieving a clamp load of 220,000 psi. All  rods are design in house, using the latest cad and FEA software to ensure the highest quality rods on the market.

B-series engine applications: B16A/A2/A3, B18C1/C5, B18A/B, B20A/B.

Features

  • Forged Connecting Rod
  • 4340 alloy
  • H beam

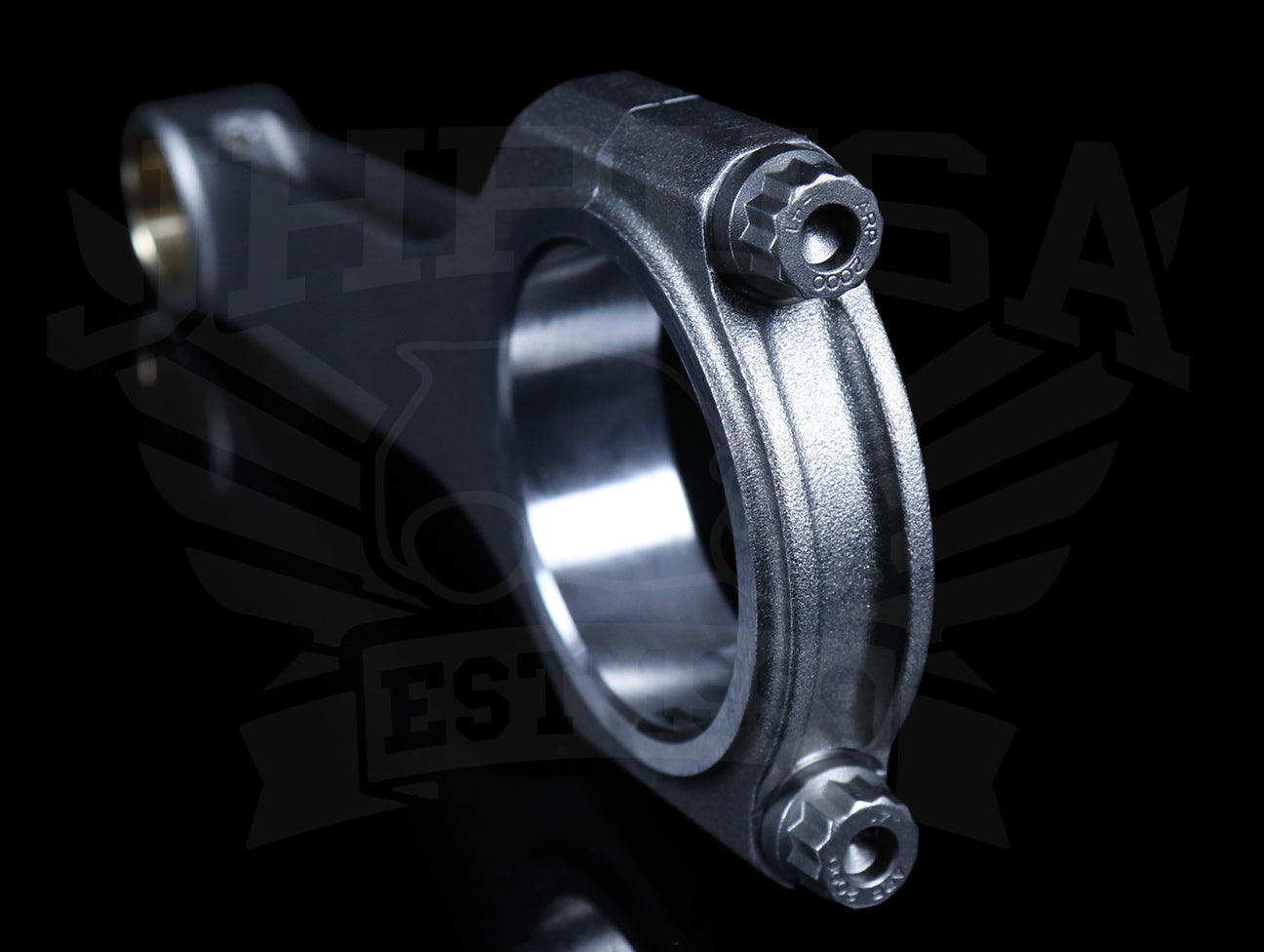

  • ARP 2000 bolts

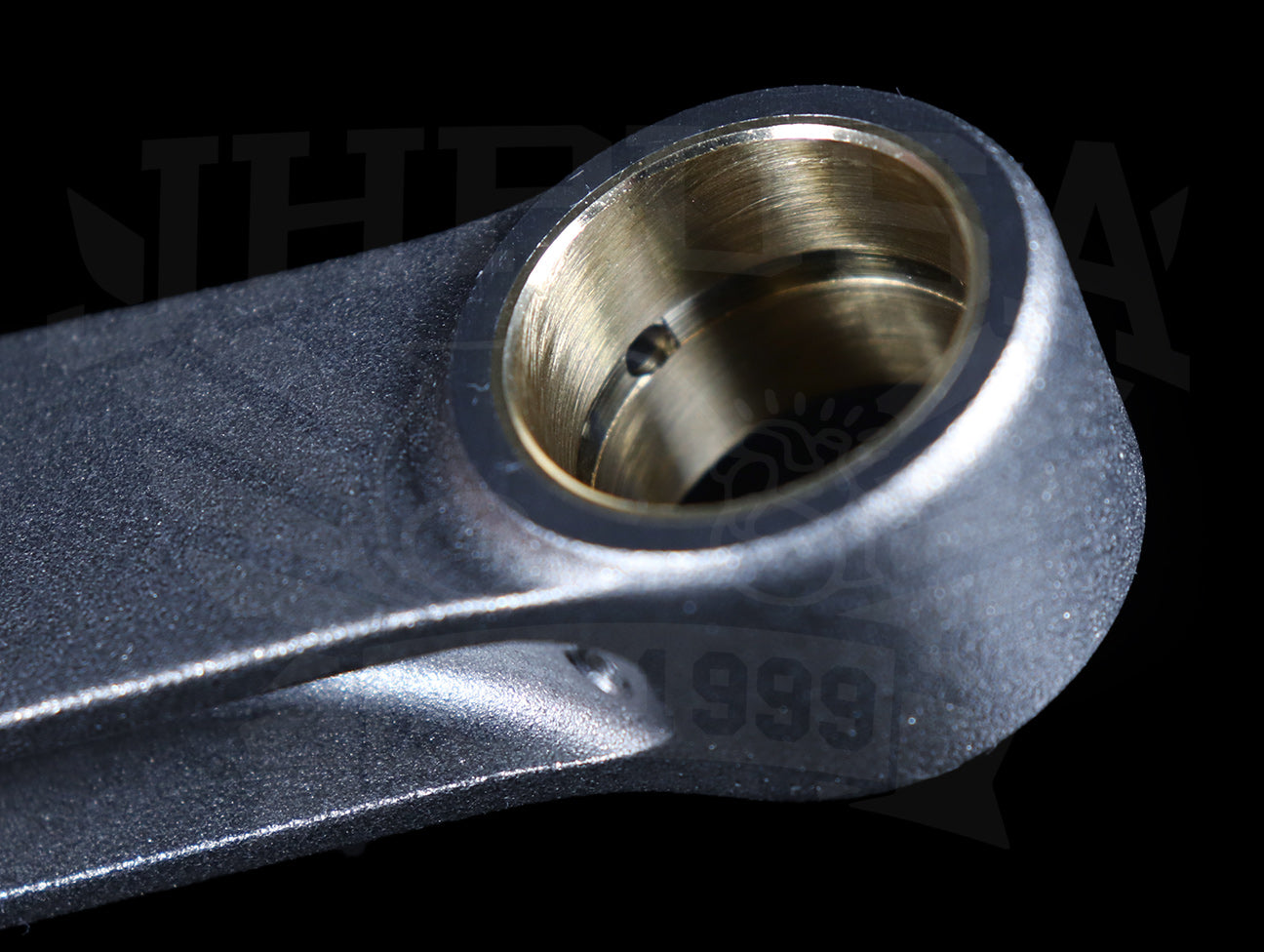

  • Bronze Wrist Pin Bushings
  • Fatter, H-Beam Design Without Drastic Weight Increase

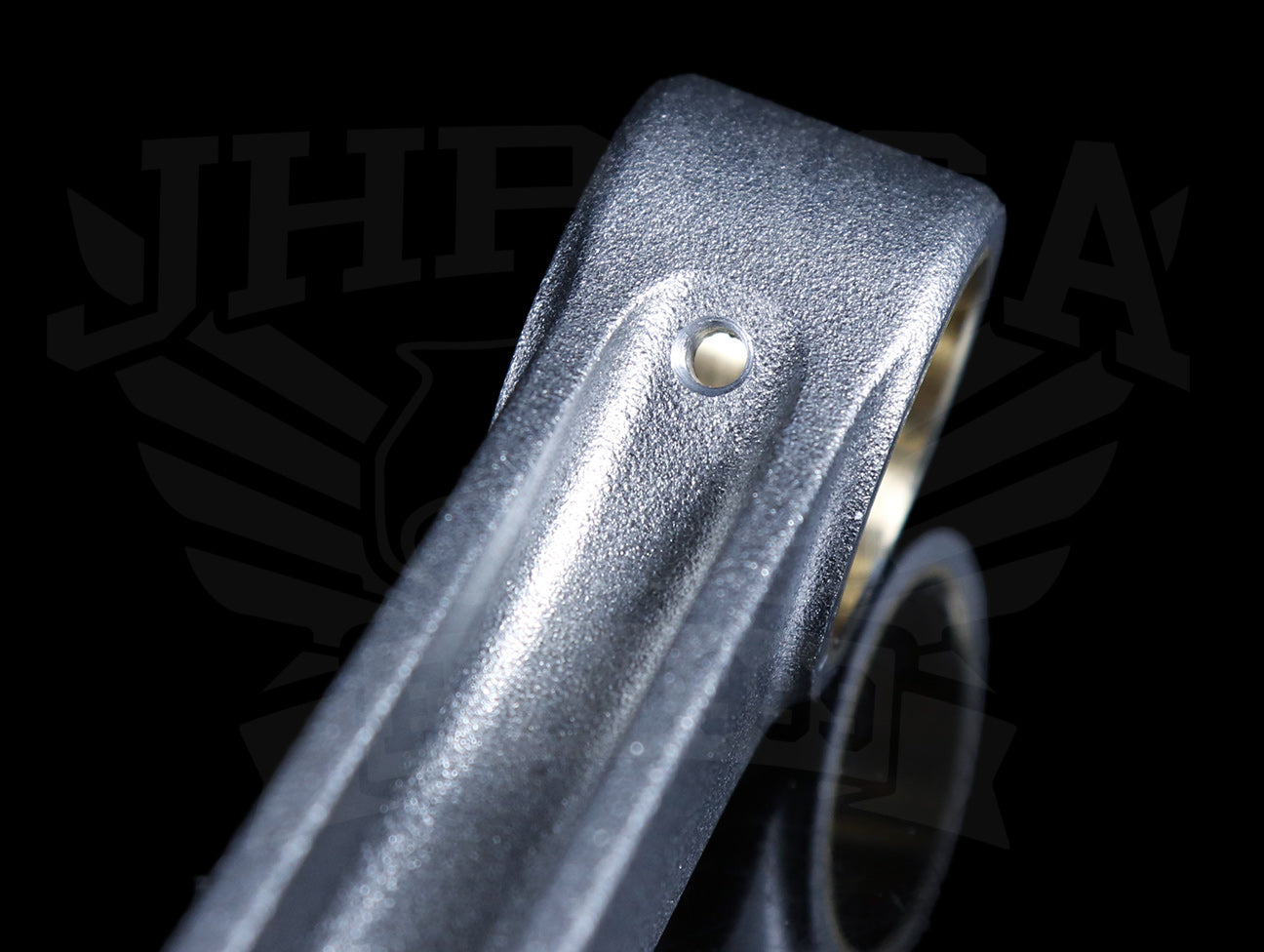

  • Dual-Pin Oil Passages For Increased Lubrication And Strength

B16A Rod Specs:

  • C-C Length 134.4mm (5.290")

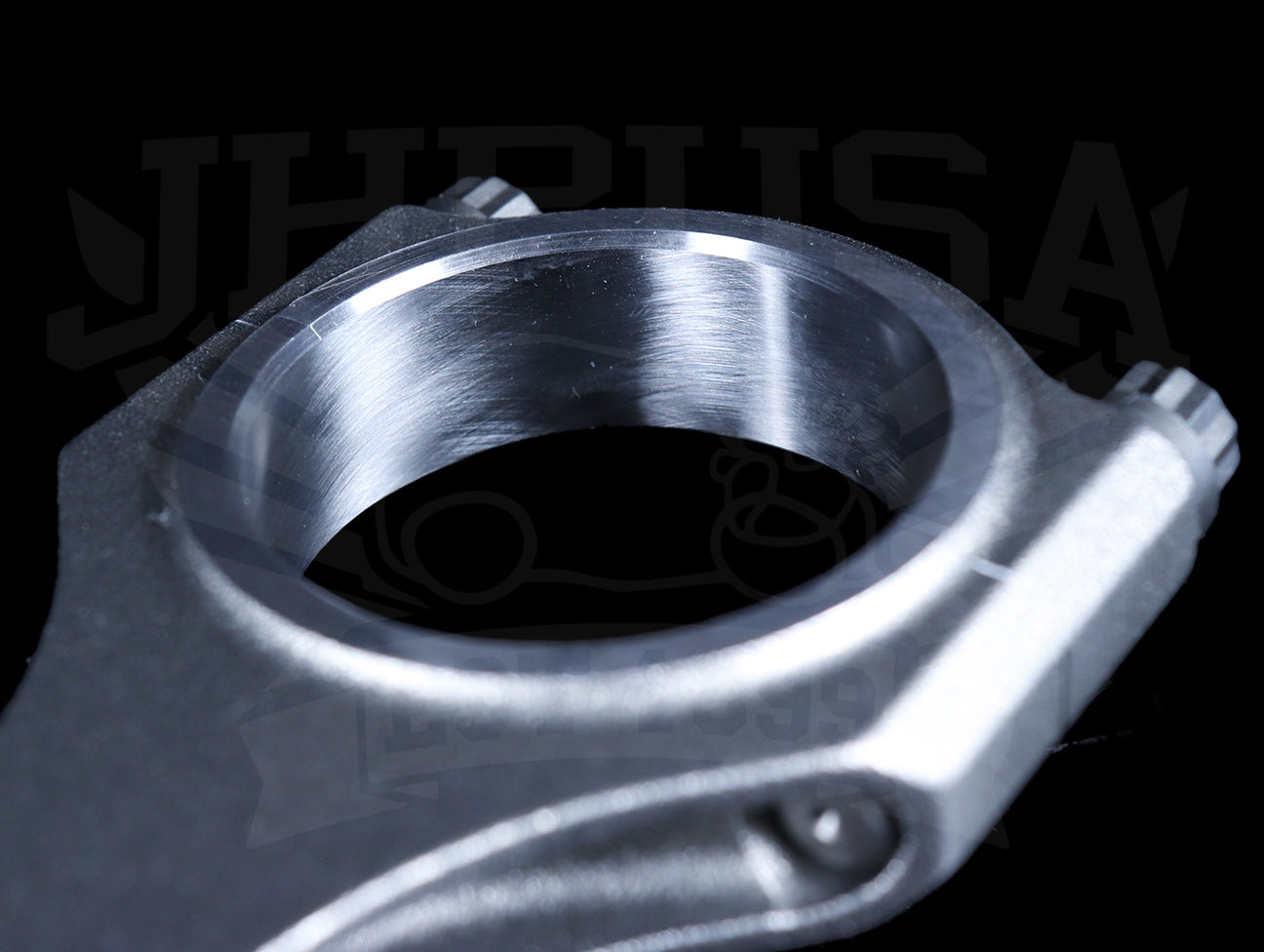

  • BE bore: 48.006mm (1.890")
  • BE width: 23.75mm (0.935")
  • PE bore: 21mm full float
  • PE width: 22.9mm (0.900")

B18C Rod Specs:

  • C-C Length 138mm (5.433")
  • BE bore: 48.006mm (1.890")
  • BE width: 21.8mm (0.858")
  • PE bore: 21mm full float
  • PE width: 22.9mm (0.900")

B18A/B / B20A/B Rod Specs:

  • C-C Length 137mm
  • BE bore: 48.006mm (1.890")
  • BE width: 23.70
  • PE bore: 21mm full float
  • PE width: 22.60mm

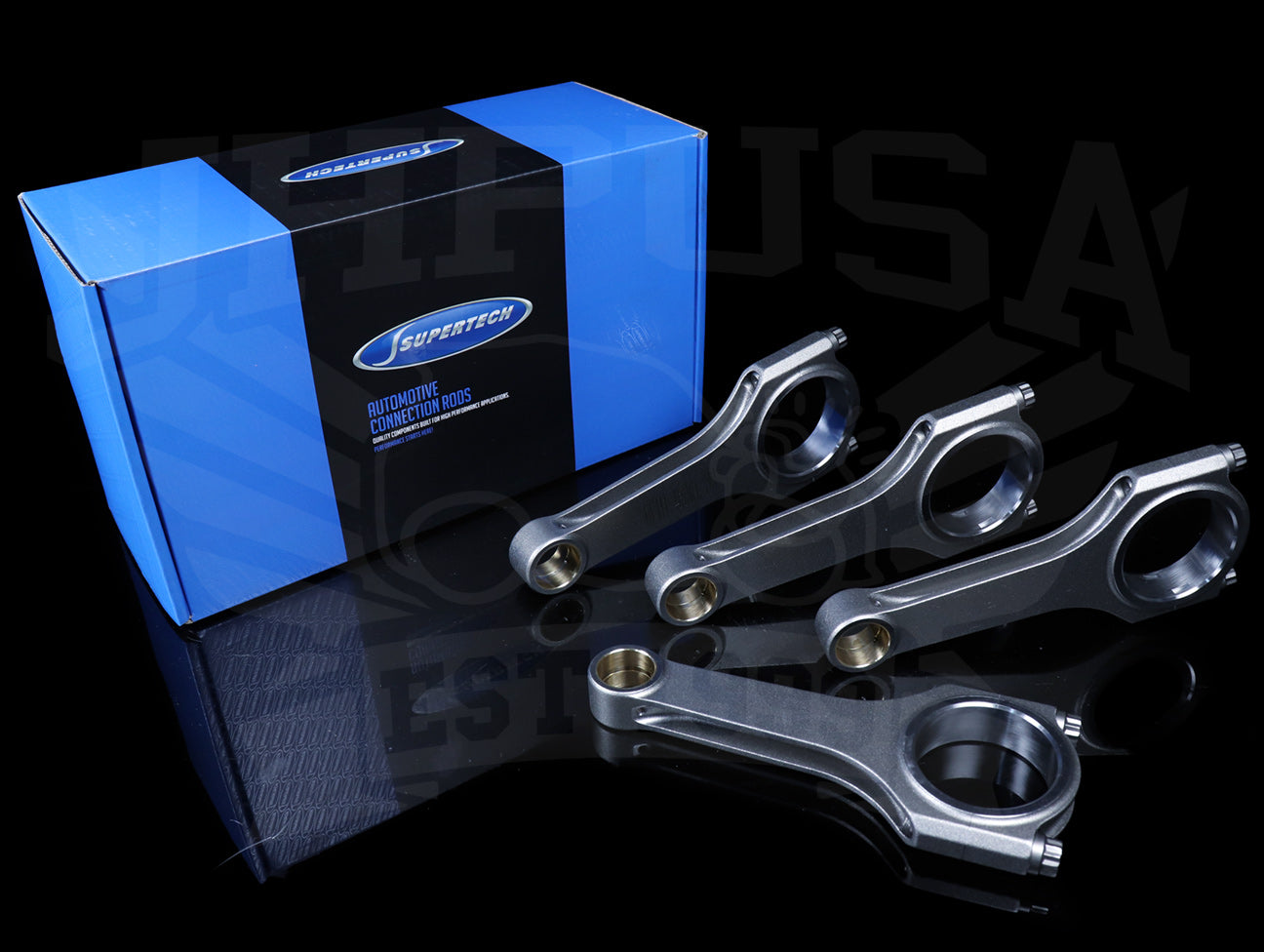

Sold as a full set (4 rods)

      Supertech Forged Connecting Rods - B-series

      Regular price Sale $416.00
      Free Shipping
      Free standard shipping applies to this item within the continental United States. Orders shipped to Alaska, Hawaii, Virgin Islands, Canada, Puerto Rico, Guam, and PO/APO/FPO boxes are subject to additional shipping charges.
      Ships: 1-5 business days
      This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.
      Brand:Supertech
      SKU:CR-HB16A-H134.4
