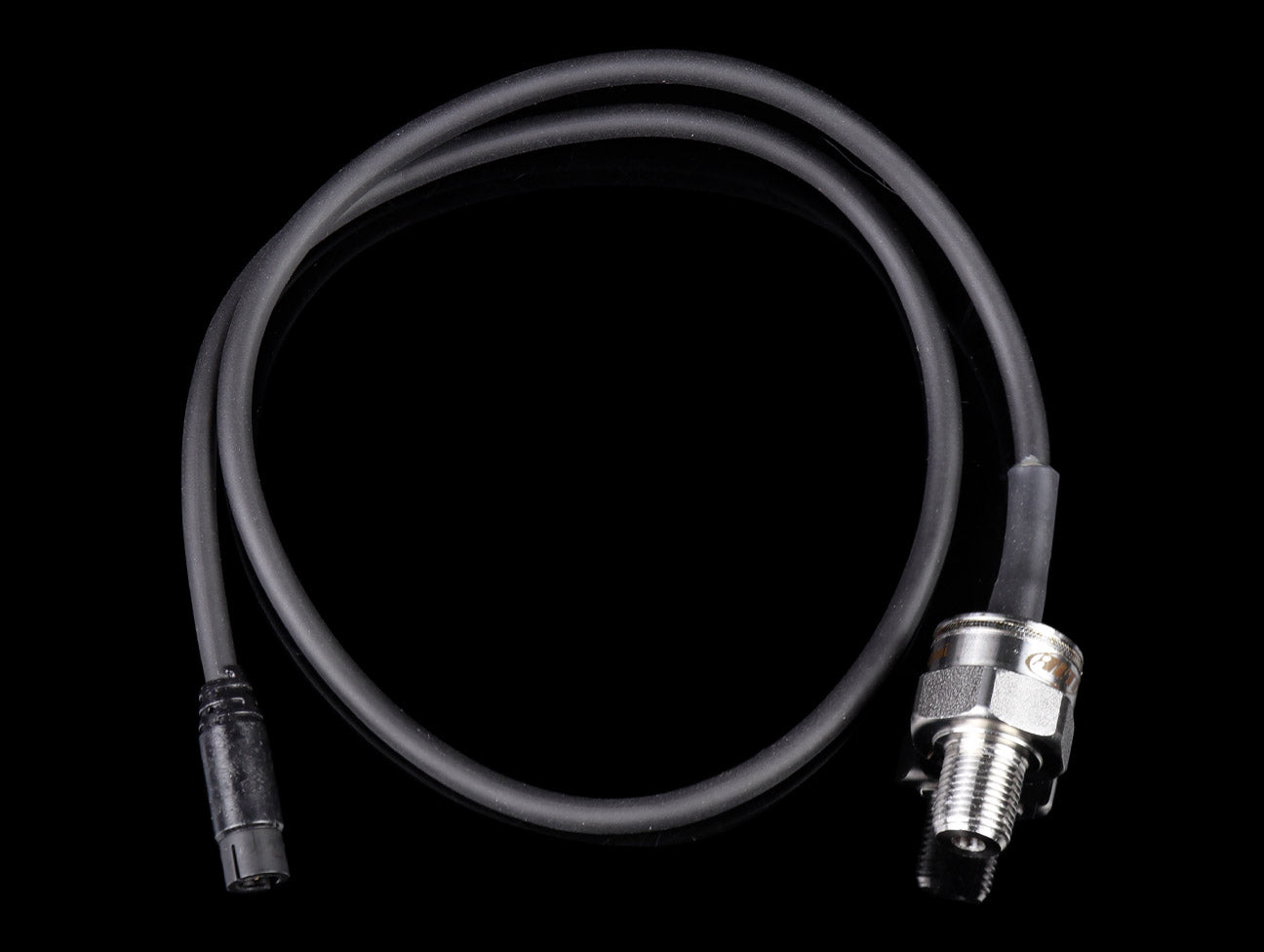

AiM Oil/Fuel Pressure Sensor - 0-150psi / 1/8 NPT

AiM Oil/Fuel Pressure Sensor - 0-150psi / 1/8 NPT

SKU: X05PSA00150P18

$165.00
$165.00
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.

AiM 0-150 PSI pressure sensor is suitable for oli and fuel pressure reading, being able to read pressures up to 150 PSI.

Sensor specs

  • Supply: 8-16 V
  • Accuracy: < +/- 0.5% FS (CLNH - combined non-linearity and hysteresis)
  • Characterization: 500 mV/ 0 PSI     4500 mV/ 150 PSI
  • Consumption: < 10 mA
  • Temperature working range: from -20 degrees C to 135 degrees C
  • Sealing: IP66
  • Housing: 316 stainless steel
  • Weight: 30 g
  • Cable length: 400 mm
  • Thread: 1/8 NPT
