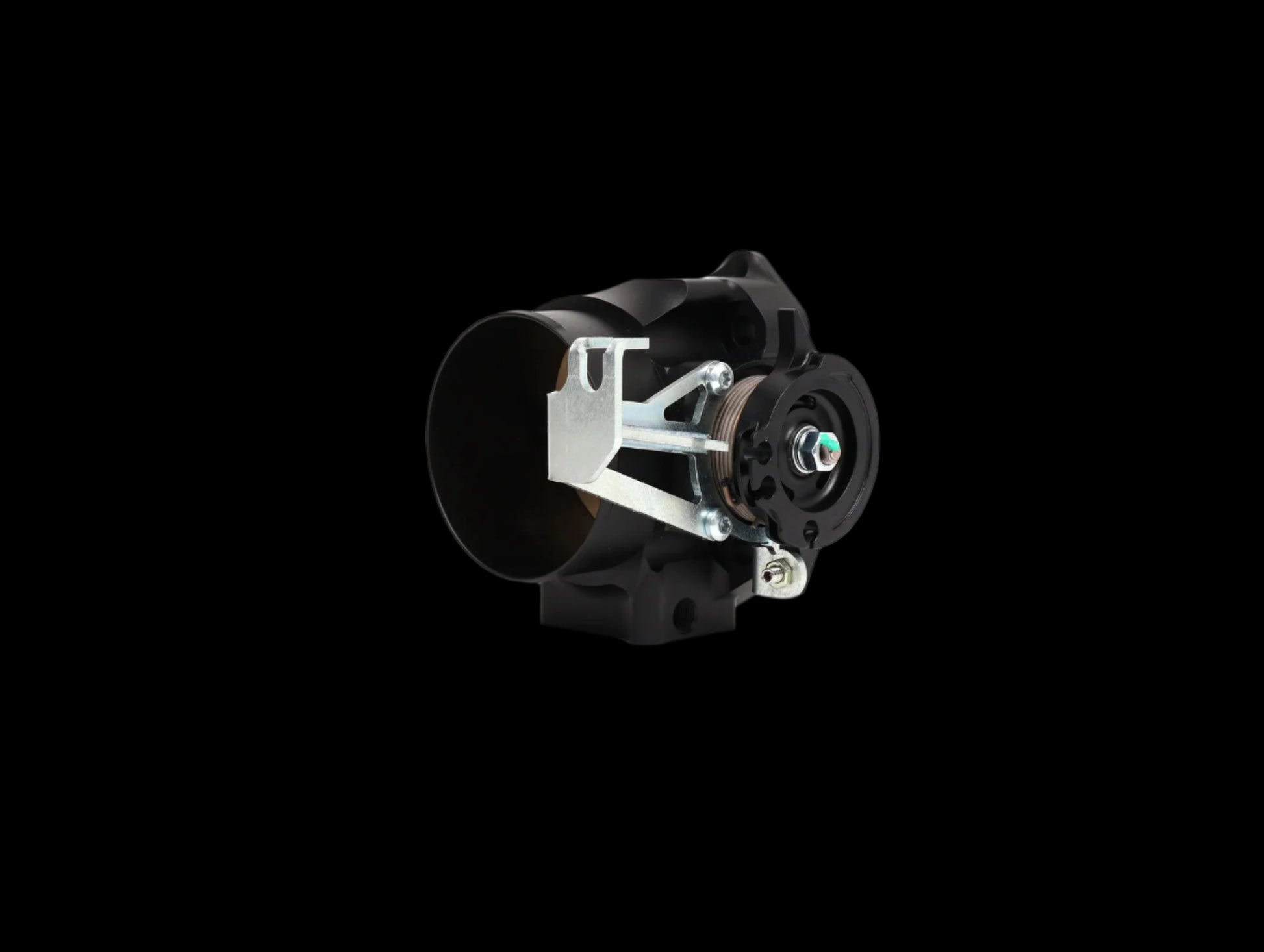

Hybrid Racing 75mm K-Series Throttle Body - RBC

Hybrid Racing 75mm K-Series Throttle Body - RBC

SKU: HYB-THB-01-05

$399.99
$399.99
Select Options
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.

For years, Hybrid Racing's K-Series throttle bodies have been the go-to upgrade for enthusiasts looking to maximize performance. Since production ended, demand has only grown—and they heard you loud and clear. Now, Hybrid is bringing back their industry-leading design, refined and reengineered for even greater performance and reliability.

The latest version stays true to its winning formula while introducing key improvements. The new RBC Throttle Body is a direct bolt on for the RBC/RB/RRB intake manifolds. However, this throttle body is only designed for Drive By Cable, so it will not fit the donor cars that many of those manifolds come from. Hybrid rotated the IACV port to improve clearance between the radiator and wiring connector, ensuring a cleaner, more efficient installation. The TPS mount now mirrors the OEM Honda design, guaranteeing precise throttle position sensor calibration for seamless integration with your engine management system.

Precision-machined from 6061-T6 aluminum, this throttle body is built for the RBC, RRB, RRC, and RBB bolt patterns. By designing it specifically for these intake manifolds, Hybrid has eliminated the constraints of the PRB bolt pattern, allowing the inlet to a full 75mm. Whether you’re running a naturally aspirated or forced induction setup, this throttle body delivers the airflow your engine needs. It’s also designed to work perfectly with 3-inch couplers, ensuring a secure and optimized intake path.

To install the throttle body on the RRC Manifold, you must use the IACV Block Off Plate ( HYB-ICV-01-04 ) as the RRC Manifold does not have an idle air control ability.

Features

  • Smooth Bore 75mm ID

  • Direct Bolt On to RBC/RRB/RBB Manifolds

  • Slimline Cable Bracket

  • Rotated IACV for Better Clearance

*Some images show factory parts, such as MAP Sensor, IACV, and intake manifold. These items are sold separately, and not included with the throttle body.

Install Guide

 Vehicle application:

2002-2006 Acura RSX*
2002-2005 Honda Civic Si*
1990-2001 Acura Integra**
1988-2000 Honda Civic**
1993-1997 Honda Del Sol**
1988-1991 Honda CRX**
*Must Use RBC/RRB/RBB Manifold
**K Swaps Using RBC/RRB/RBB Manifold

IN THE BOX
(1) Thermal Gasket
(1) 1/8 NPT Hose Barb Fitting
(1) 1/8 NPT Plug
(1) EPDM Rubber Cap
(1) Constant-Tension Spring Clamp
(4) JIS M8x1.25-35mm Flanged Bolts
(2) M5X0.8 Pan SEMS 12mm
(1) M5X0.8 Pan SEMS 16mm
(2) M5X0.8 Pan SEMS 20mm
