Quik-Latch Mini-Latch Mounting Bracket
Quik-Latch Mini-Latch Mounting Bracket
SKU: QL-25-B
Regular price
$17.99
Sale price
$17.99
Unit price
per
Free shipping
This is an estimated ship date once your order is placed from JHPUSA. Ship dates do not include weekends and holidays.
Quik-Latch Mini's can be used as fasteners on body panels, hoods, deck lids, air cleaners and many other purposes and are designed to create a strong connection with a finished look and are manufactured in the USA.

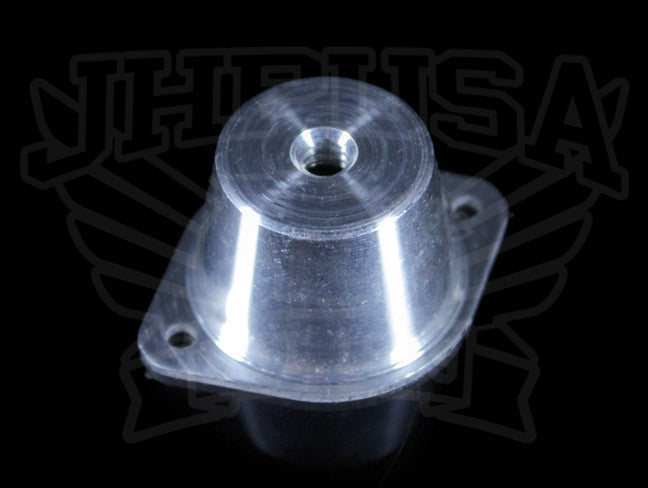

Quik-Latch mini mounting brackets are specifically designed to be used with the Quick-Latch Mini series push button latches and accessories. These brackets have been produced to help flush-mount two components together easily. They are designed to be used in conjunction with the Quik-Latch Minis, pins, and assist springs. The mounting bracket is internally recessed to allow clearance of the Mini-Latch body.

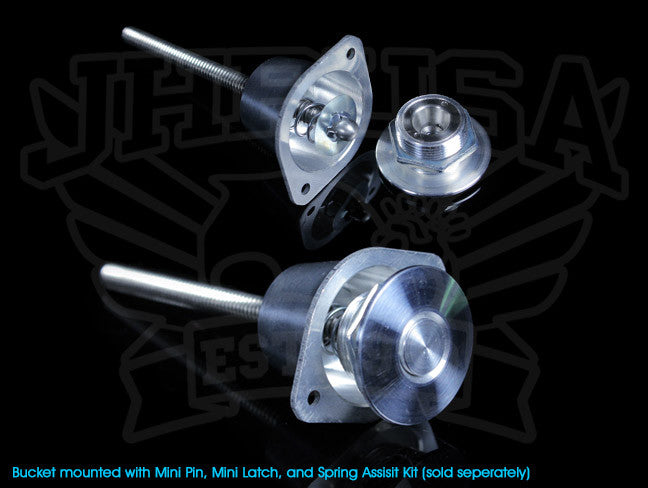

The mounting bracket is attached to the bottom side of one of the components that needs to be mated together. The mounting pin is installed (threaded) into the mounting bracket and adjusted to its proper height while the Mini-Latch body is installed onto the second mating component. The two components are flush mounted together once the latching body snaps onto the mounting stud. To release the two mated components, simply press the latching body button.
Bracket mounting holes: 1.50 inch (center to center)
Inner bracket diameter: 1.00 inch
Bracket height: 0.75inch
Sold individually.
Quick-Latch Video:
Quik-Latch mini mounting brackets are specifically designed to be used with the Quick-Latch Mini series push button latches and accessories. These brackets have been produced to help flush-mount two components together easily. They are designed to be used in conjunction with the Quik-Latch Minis, pins, and assist springs. The mounting bracket is internally recessed to allow clearance of the Mini-Latch body.
The mounting bracket is attached to the bottom side of one of the components that needs to be mated together. The mounting pin is installed (threaded) into the mounting bracket and adjusted to its proper height while the Mini-Latch body is installed onto the second mating component. The two components are flush mounted together once the latching body snaps onto the mounting stud. To release the two mated components, simply press the latching body button.
Bracket mounting holes: 1.50 inch (center to center)
Inner bracket diameter: 1.00 inch
Bracket height: 0.75inch
Sold individually.
Quick-Latch Video:
