Wilwood DPHA Front Caliper & Rotor Brake Kit

Wilwood’s new DynaPro Honda/Acura Caliper (DPHA) for Honda and Acura models originally equipped with 262mm (10.2") diameter rotors. These calipers bolt directly to the stock mounts on factory front spindles, fit over the OE 262mm (10.2") diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels including the EM1 Si 15” wheel.

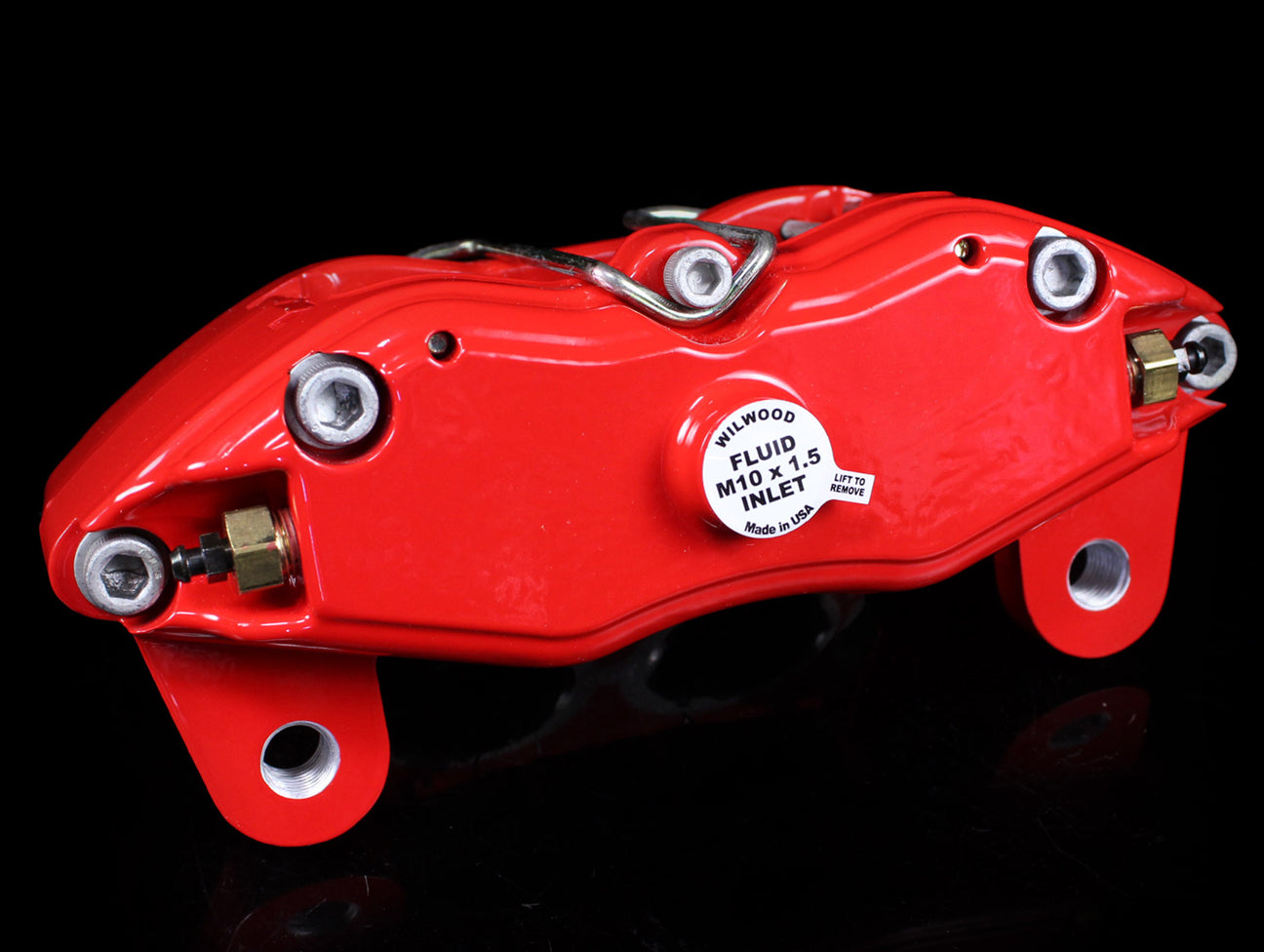

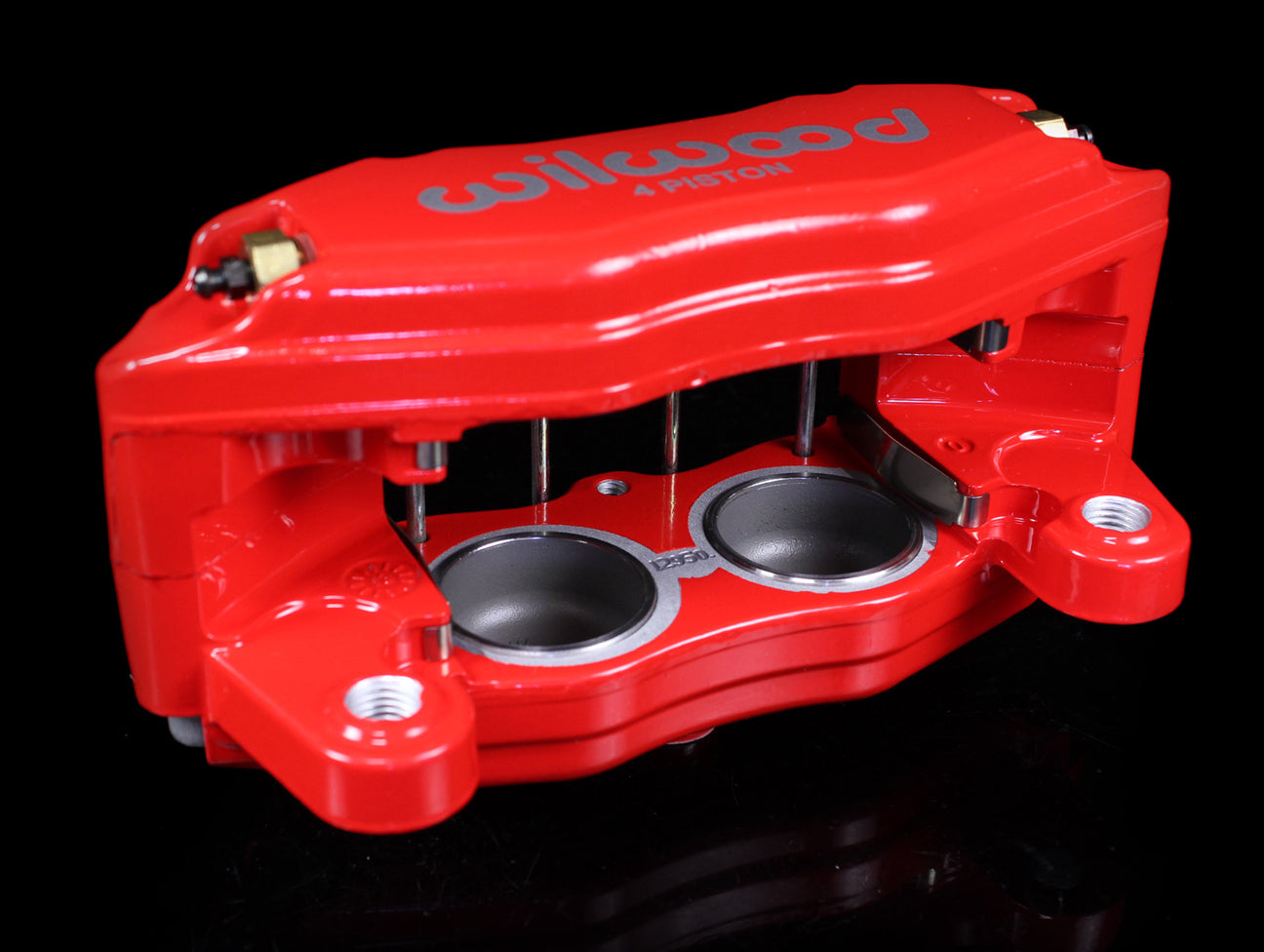

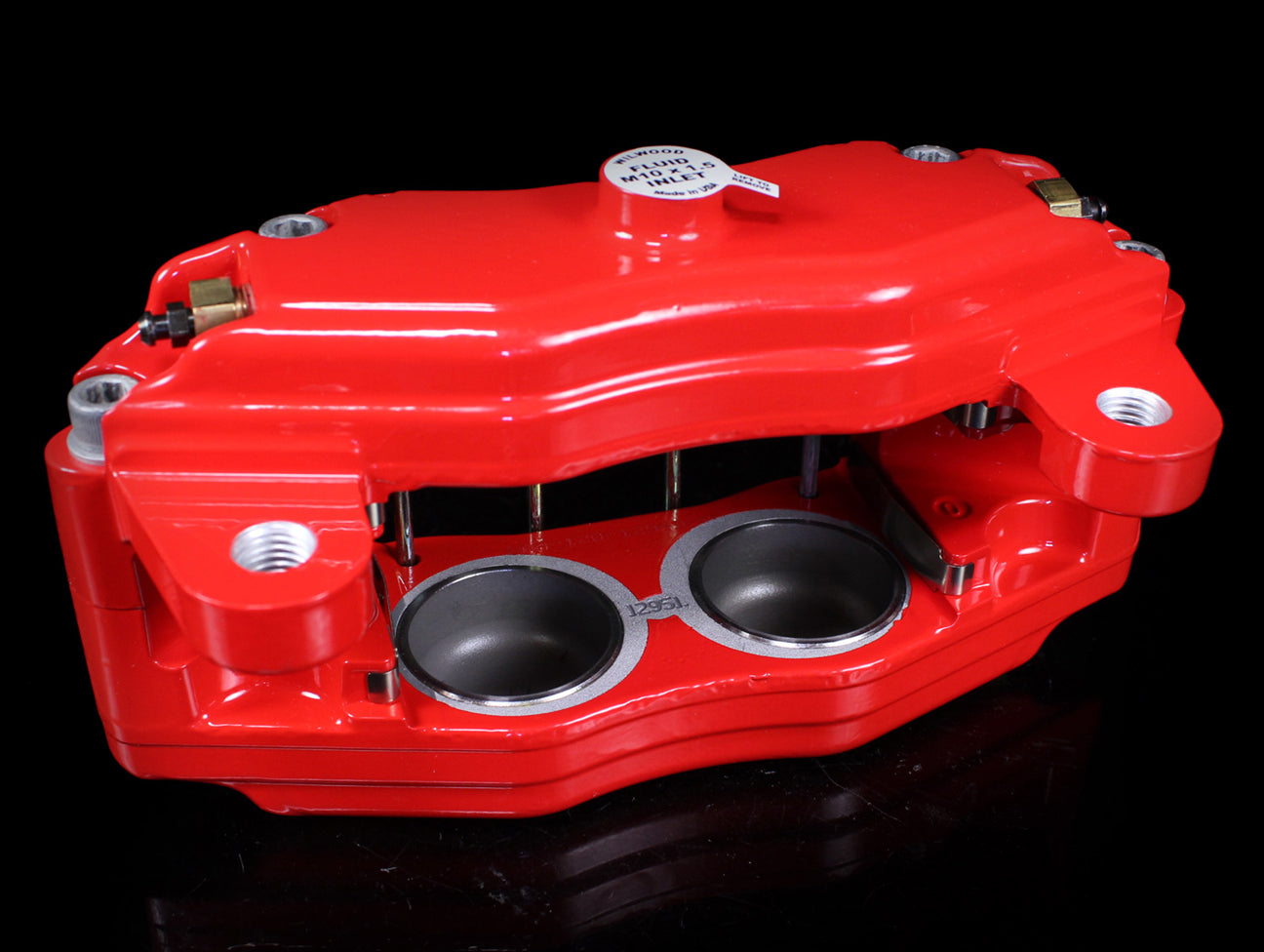

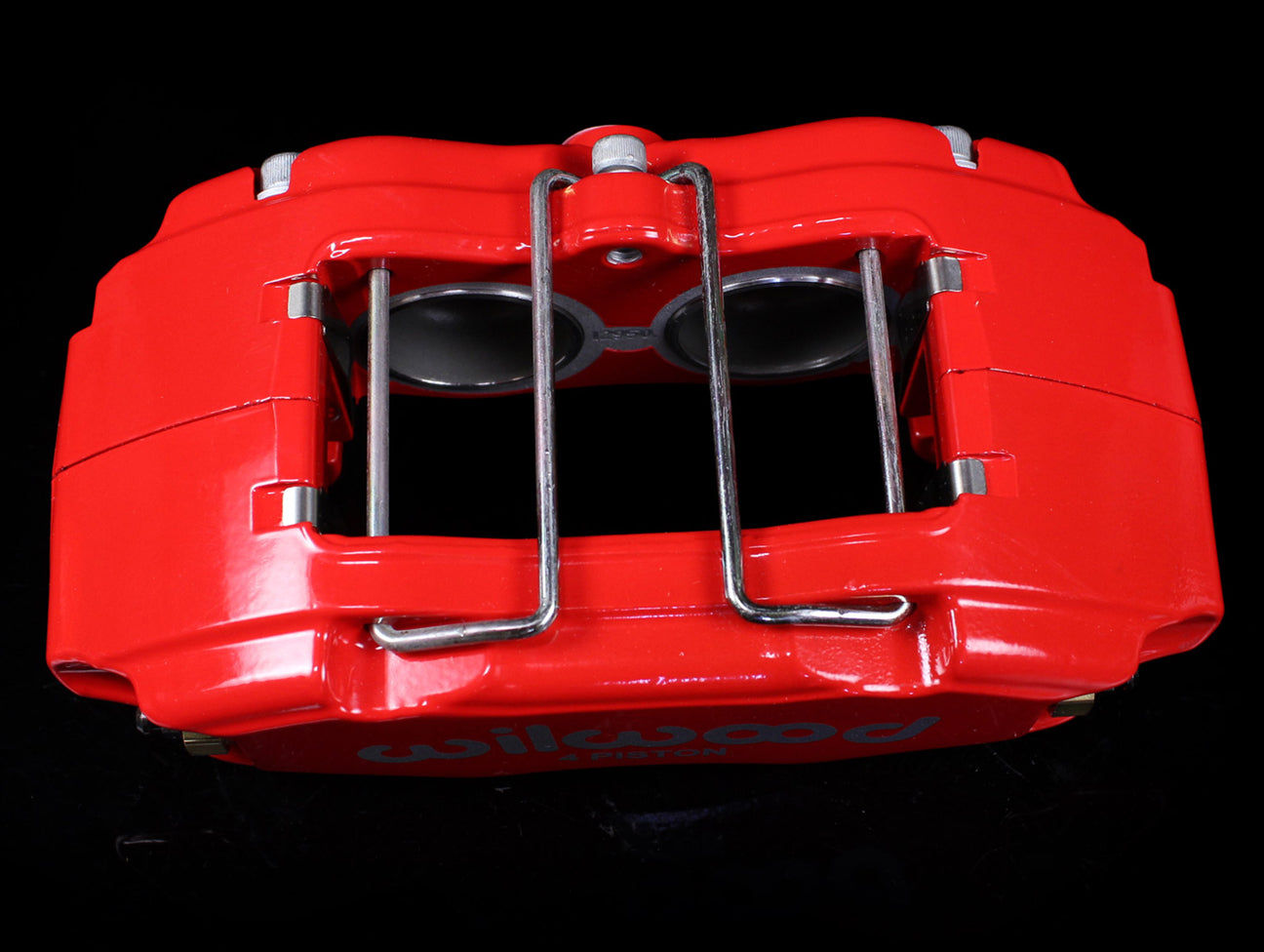

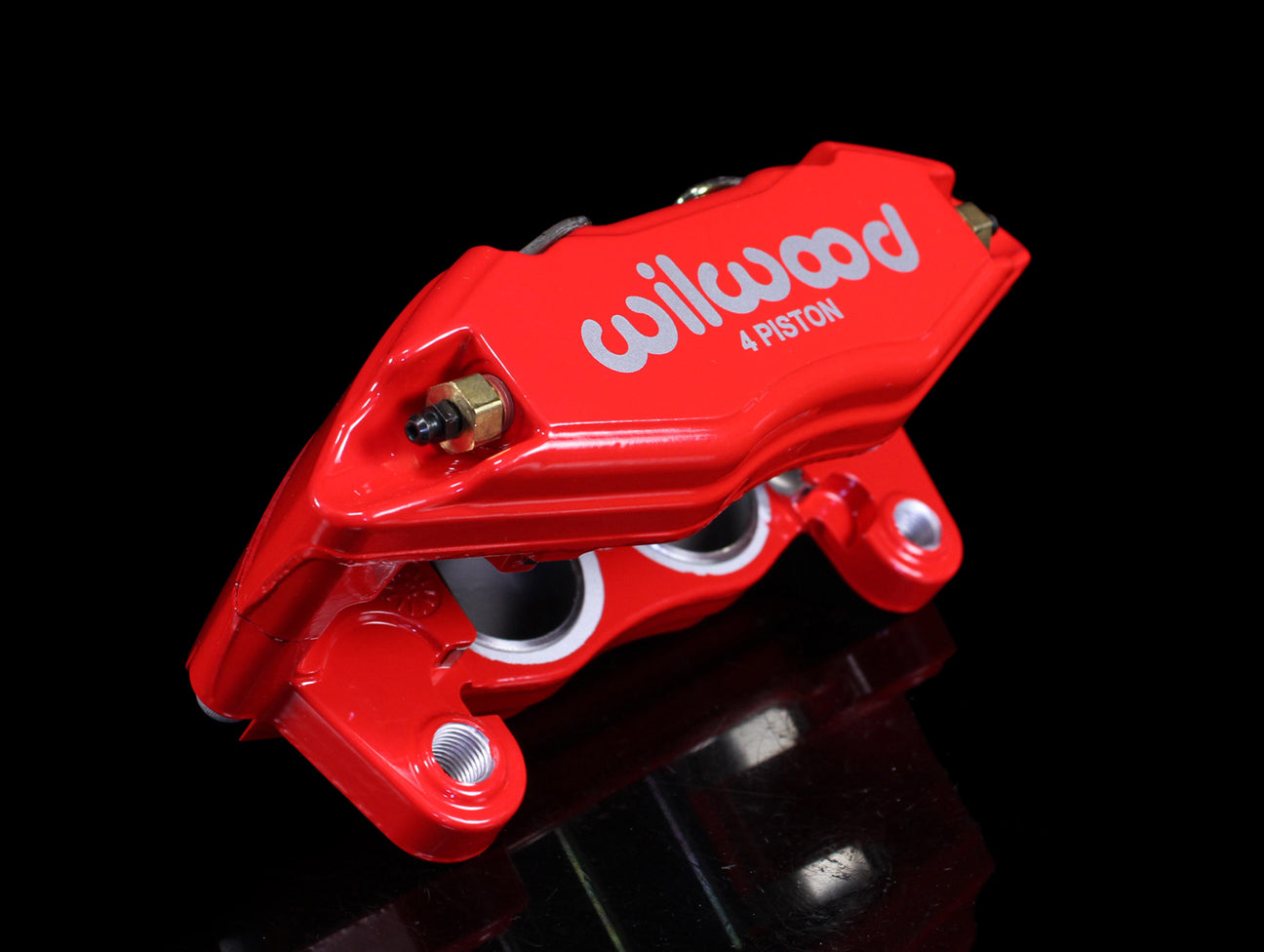

Designed around Wilwood’s proven DynaPro series four piston calipers, the forged billet bodied DPHA caliper delivers high-strength clamping force and positive stopping power. Four stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble free for many more miles.

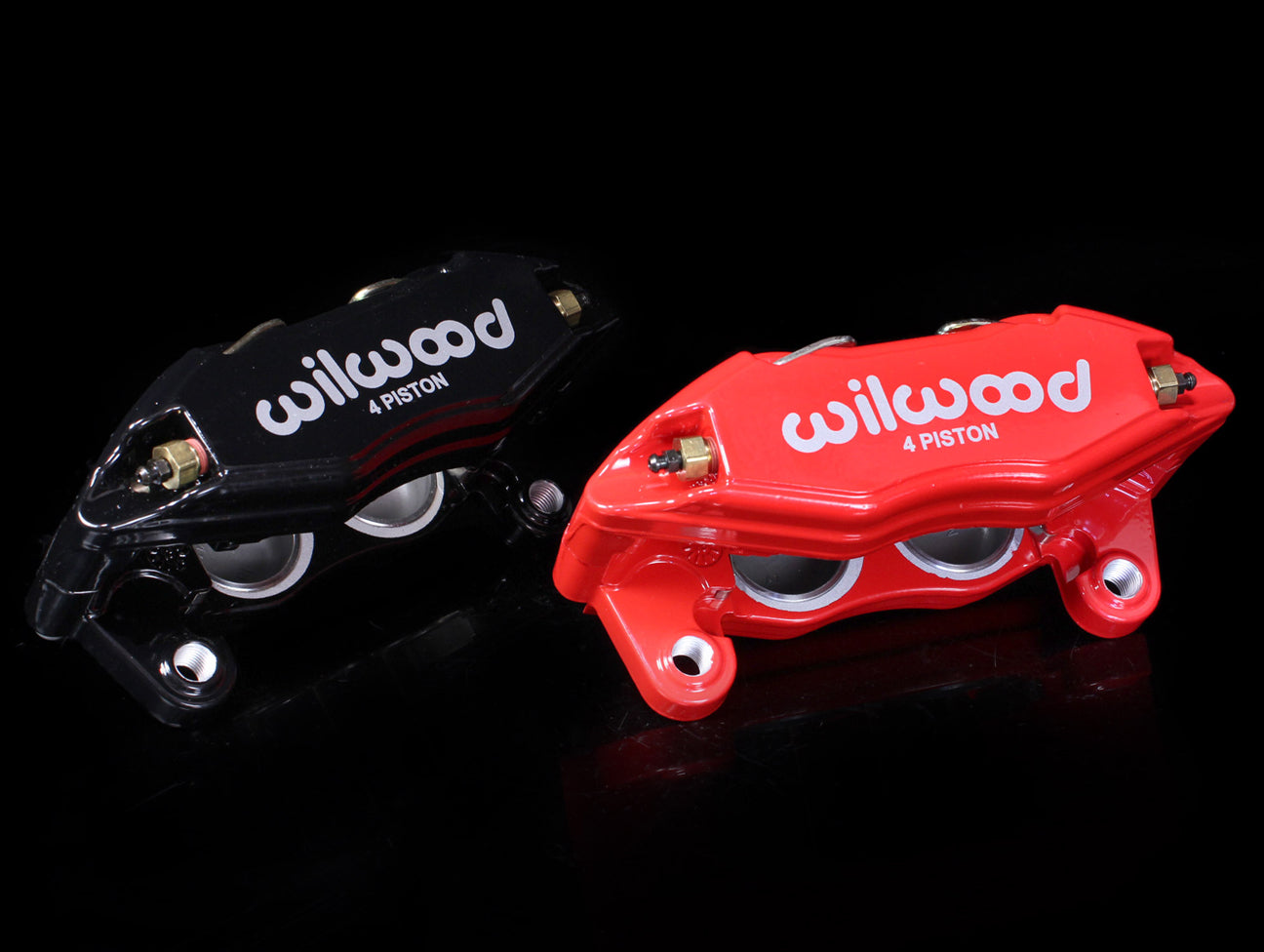

Calipers work perfectly with the OE master cylinder and ABS functions, and are available with either black or red high-gloss, high-temp, brake fluid resistant sealed powder coat and feature Wilwood’s signature logo.

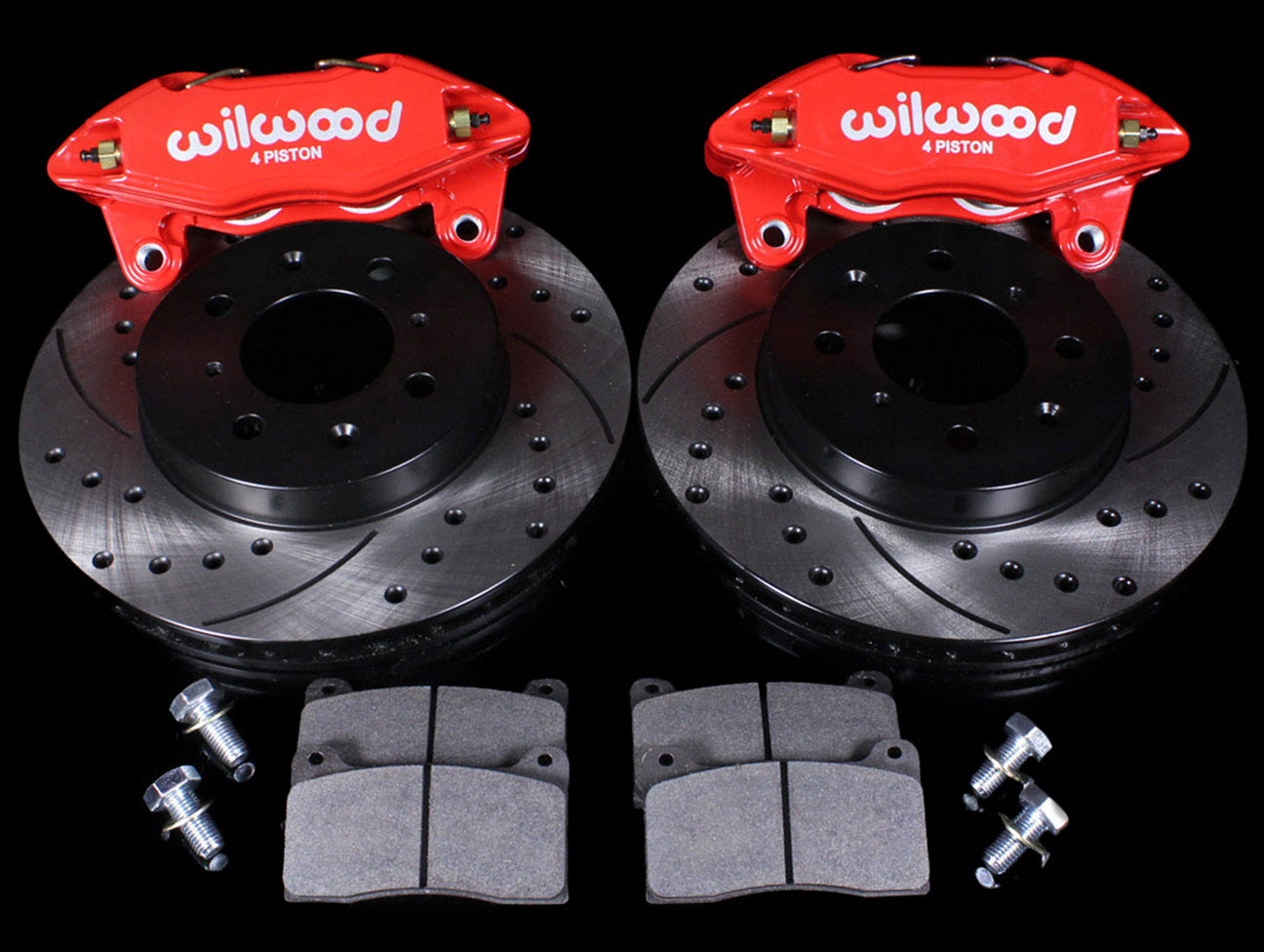

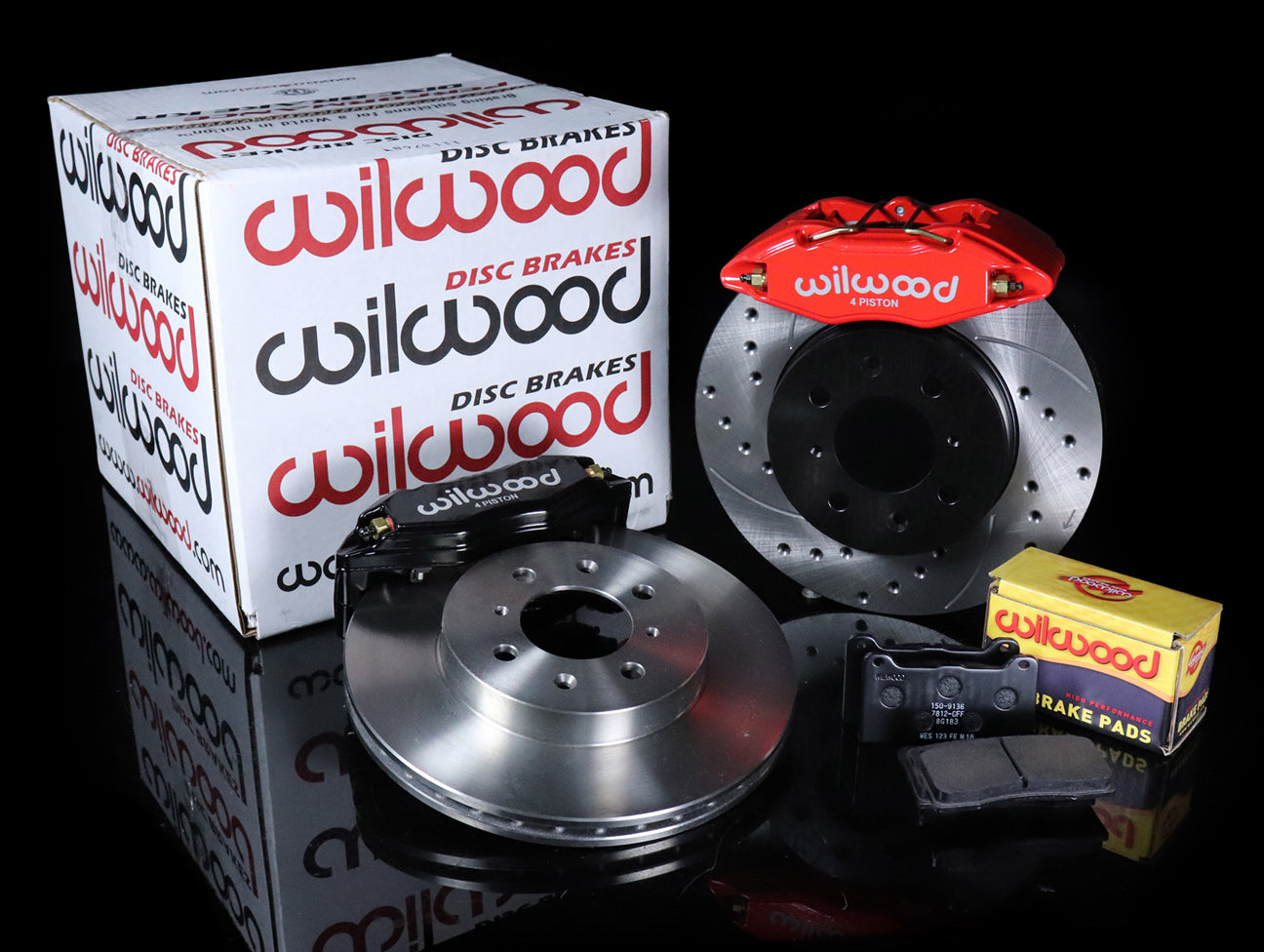

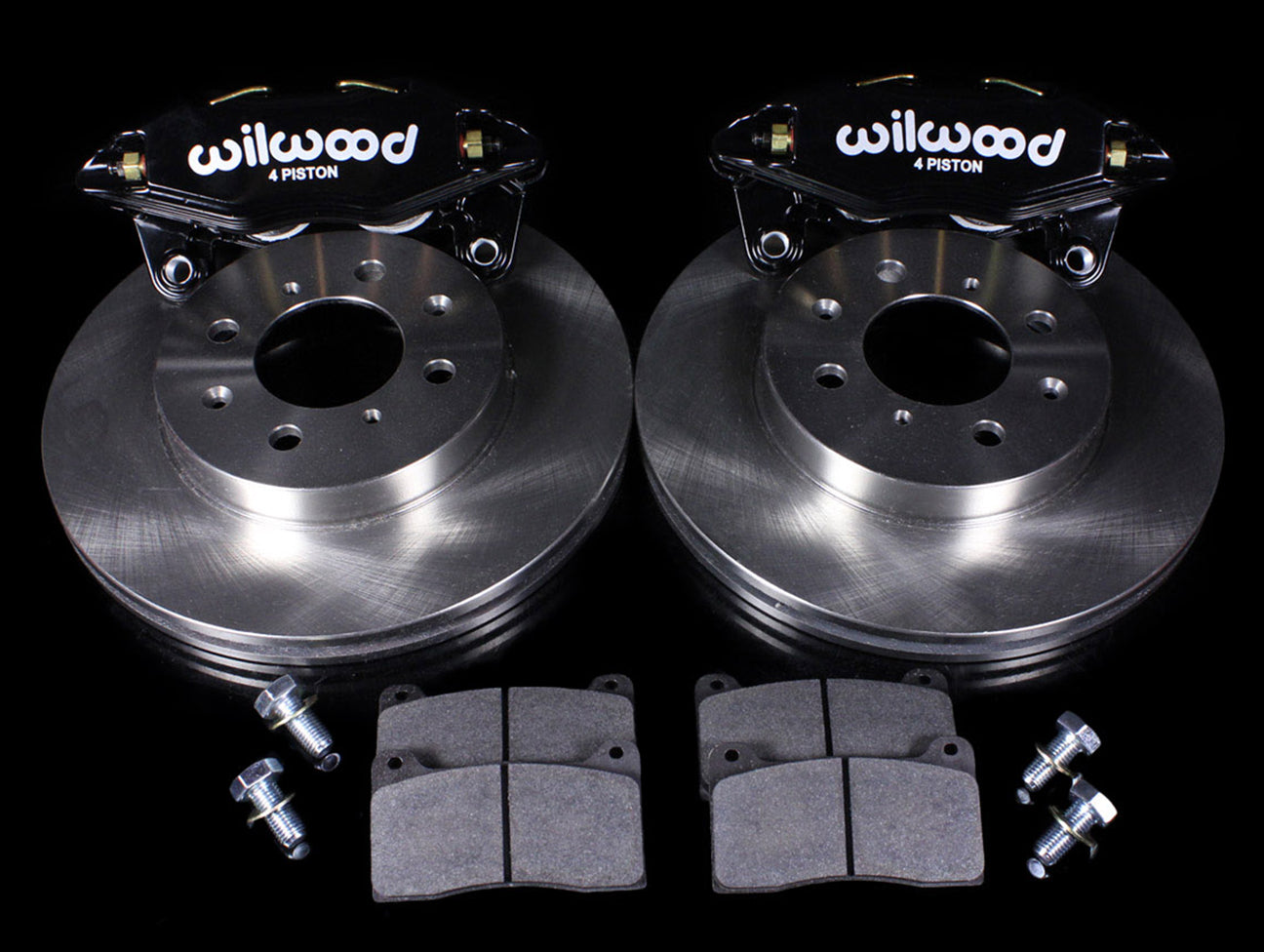

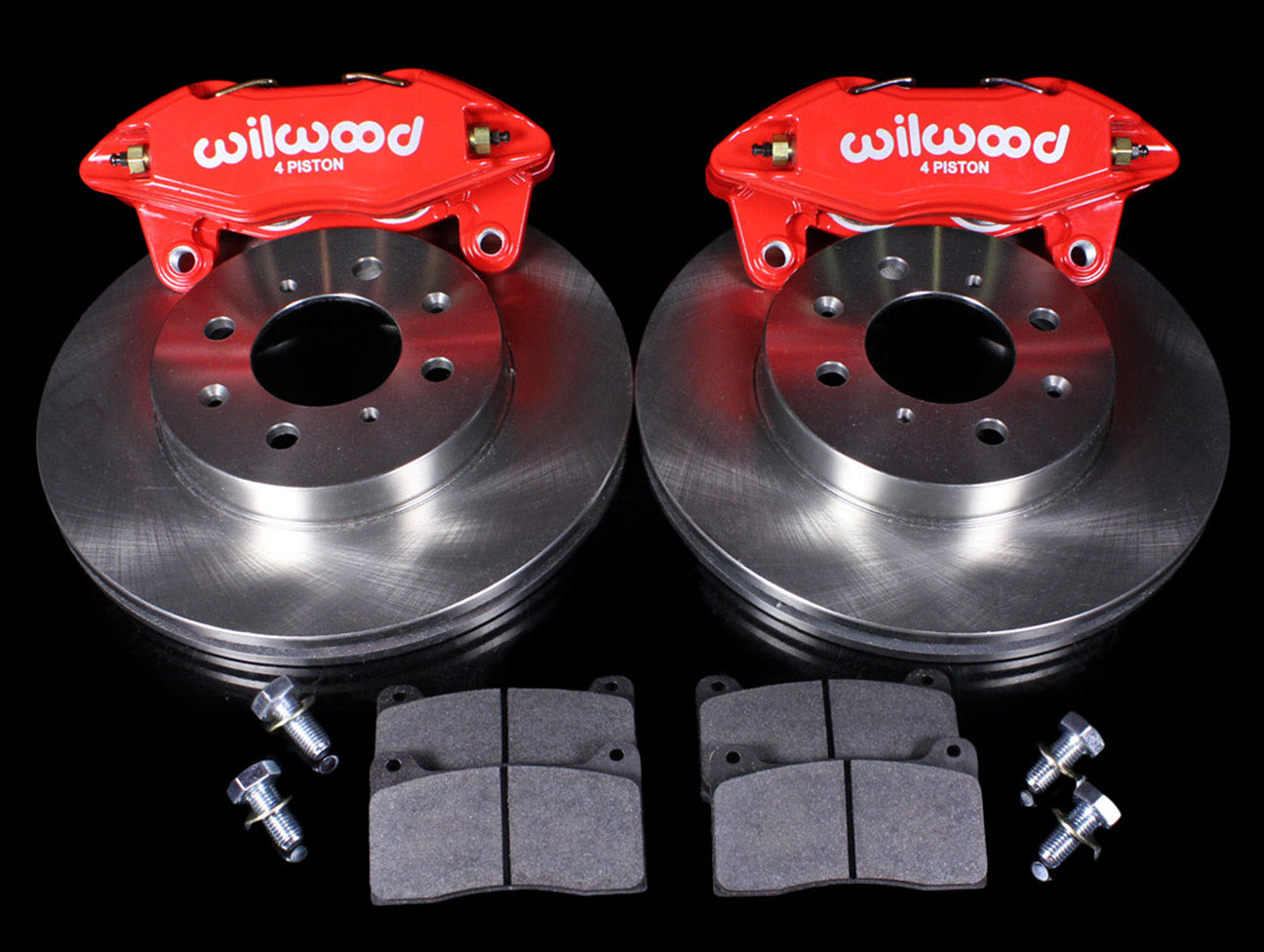

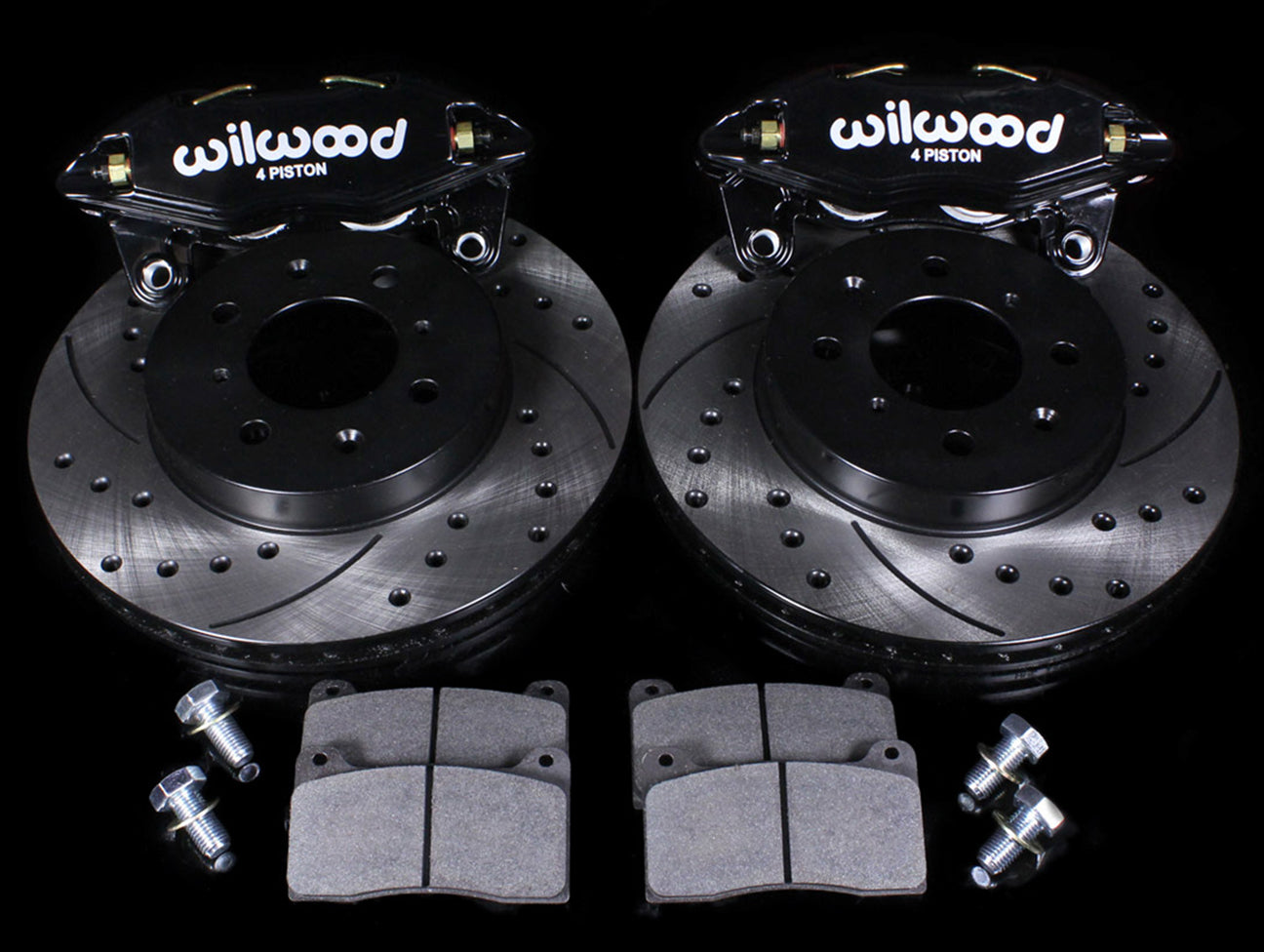

Kit Contents

• 2 DPHA forged 4-piston calipers (red or black color)

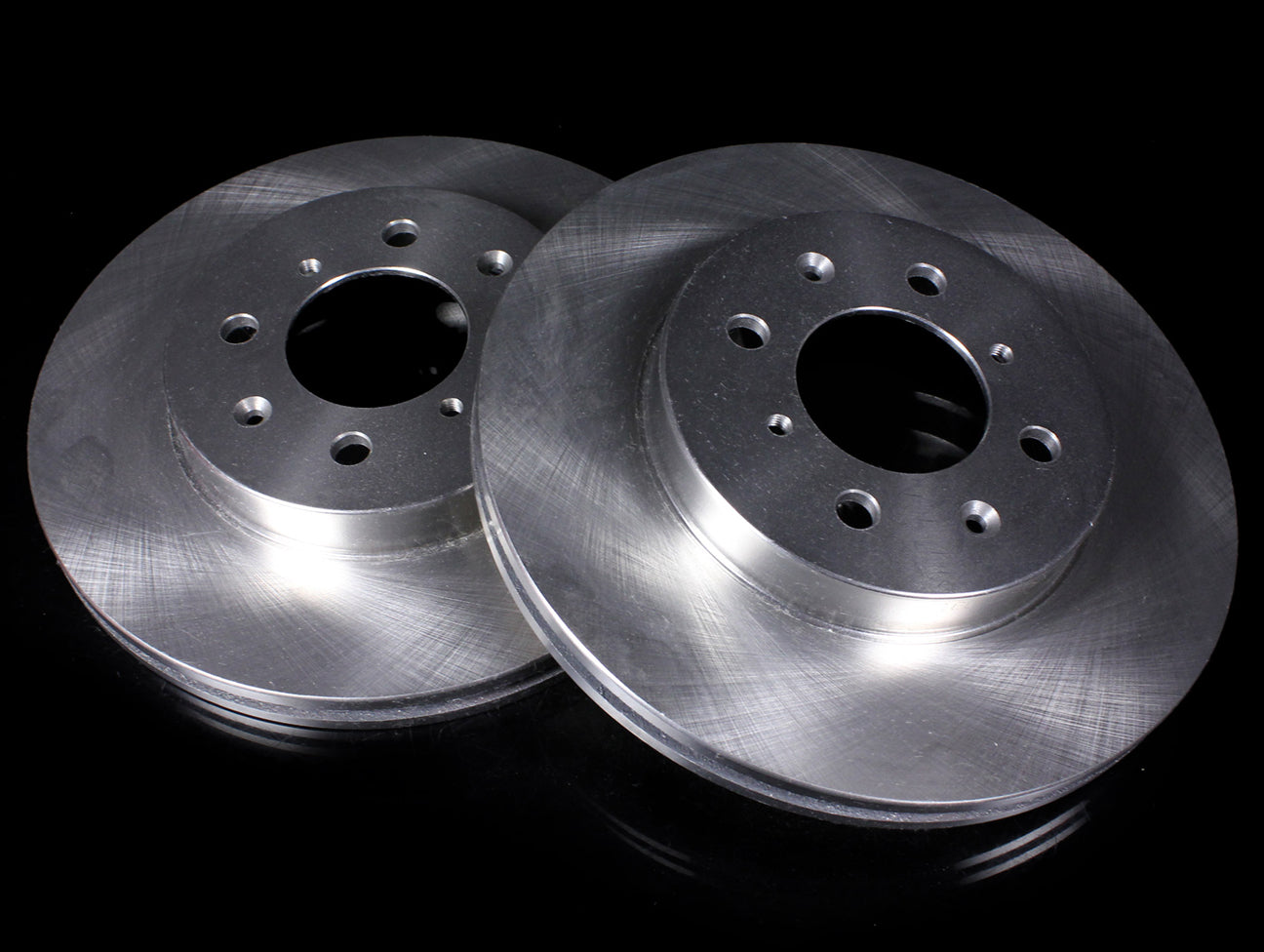

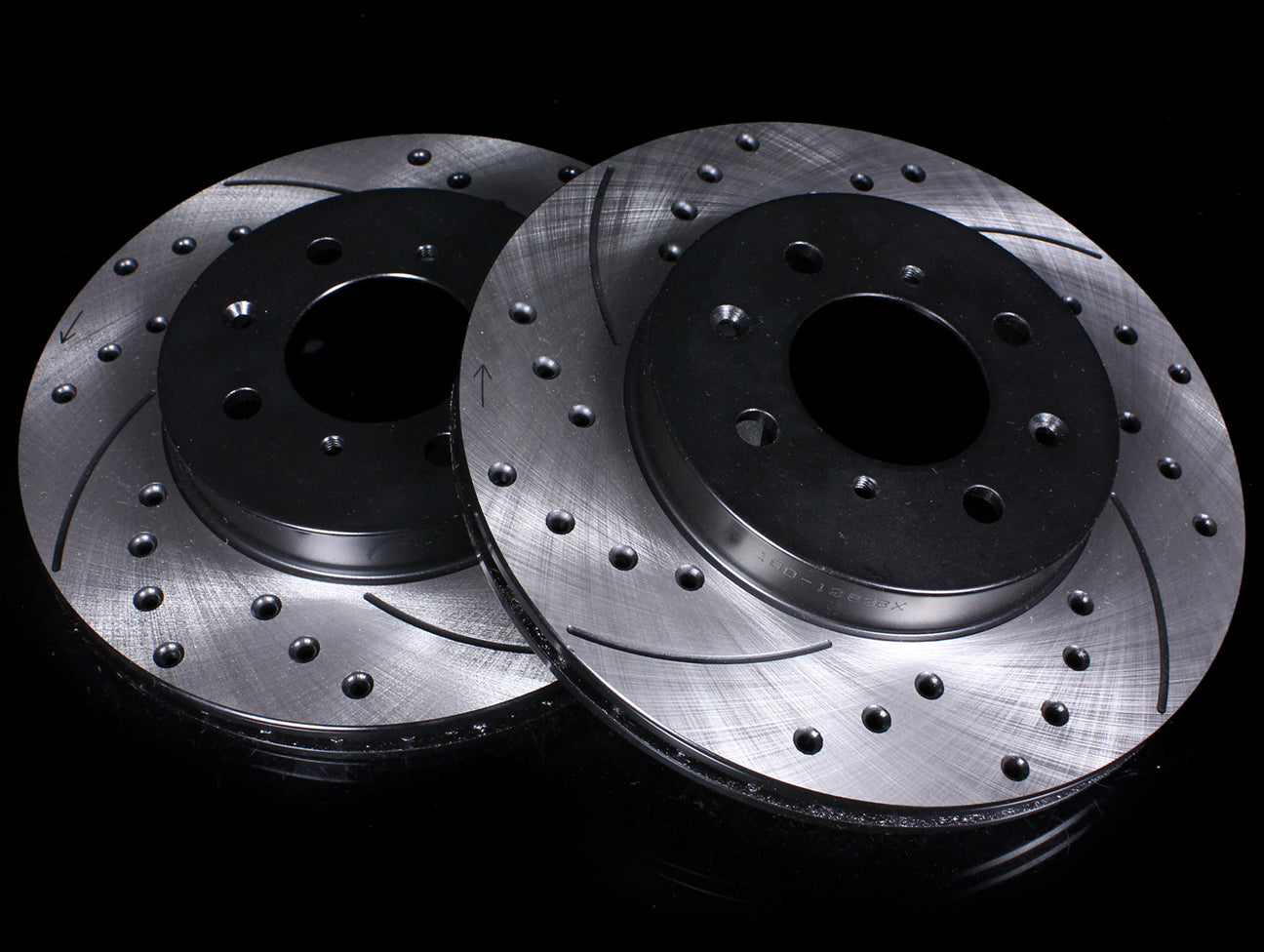

• 2 1pc rotors - cross-drilled & slotted or plain

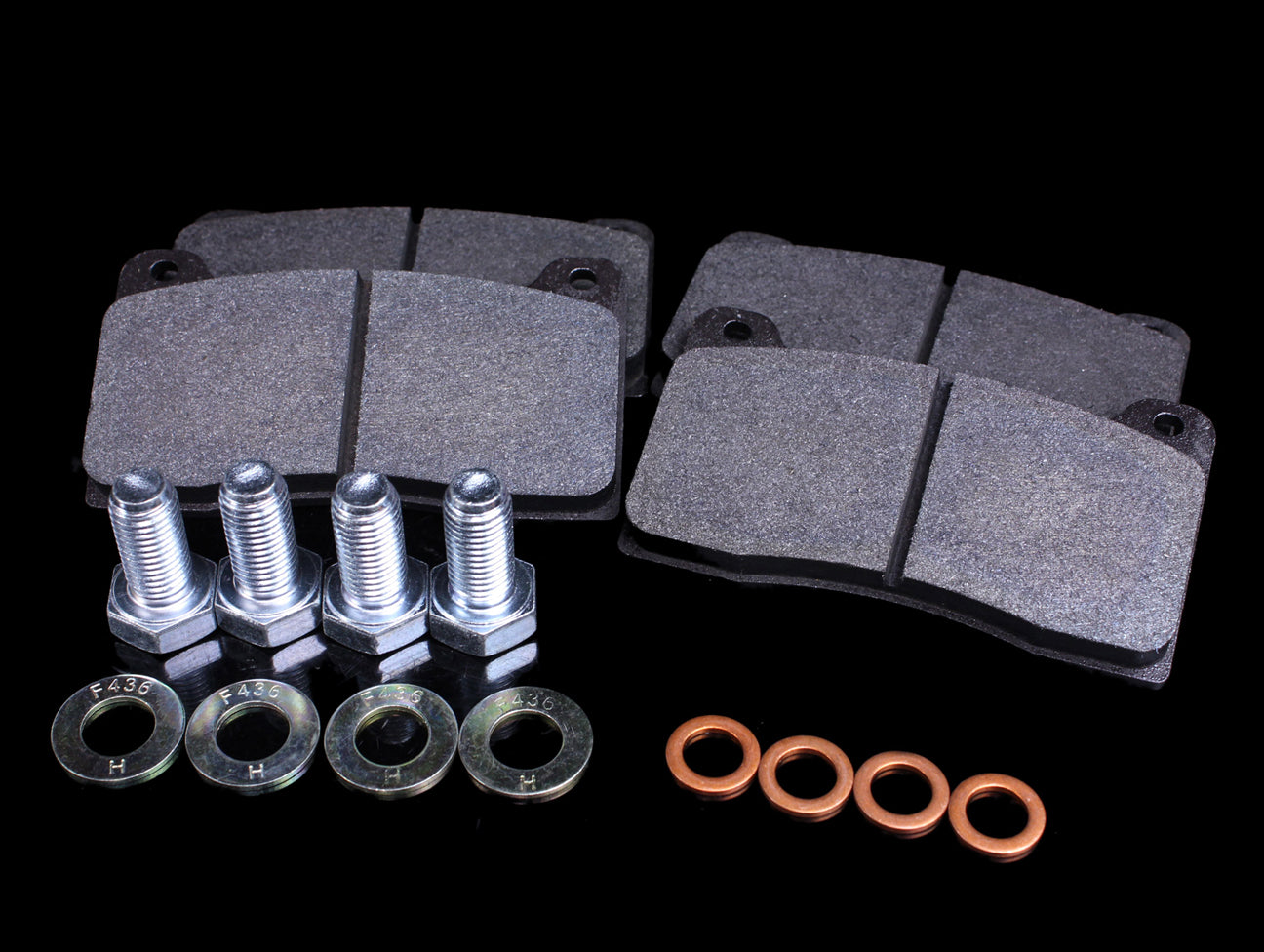

• Wilwood BP10 street brake pads (2 pads per side/4 total)
• Necessary mounting hardware & instructions

Direct Bolt-on Forged Caliper Vehicle Compatibility List:

*Designed to be used on Honda/Acura OE spindles that support factory 10.2" sized front rotors

Acura Legend 1986-1990
Acura Integra 1990-1996 (all)
Acura Integra 1997-2001 (all, excluding Type-R)
Honda Accord 1989 LXI
Honda Accord 1988 LXI / SEI
Honda Accord 1989 SEI
Honda Prelude 1989-1991 Si / SE
Honda Prelude 1988 SI / SE Late Model
Honda Civic 1996-2000 Coupe EX
Honda Civic 1993-1995 Coupe EX AT
Honda Civic 1993-1995 Coupe EX Manual
Honda Civic 1994-1995 Coupe EX w/ Rear Disc
Honda Civic 1999-2000 Coupe Si
Honda Civic 2005 DX / HX / VP Models
Honda Civic 2004-2005 EX / GX / LX / SE
Honda Civic 2001-2003 EX / GX Models
Honda Civic 1994-1995 Hatchback Si w/ABS
Honda Civic 1990-2000 Sedan EX
Honda Civic 1992-1995 Sedan EX w/ Rear Disc
Honda Civic 1996 Sedan LX
Honda Civic 1994-1995 Sedan LX w/ Auto
Honda Civic 1994-1995 Sedan LX w/ Manual
Honda Civic 2002-2003 Si

Note: Brake Kits are designed to fit OE Factory Spindles. DPHA calipers are NOT compatible with Wilwood Flexline Brake Lines.
